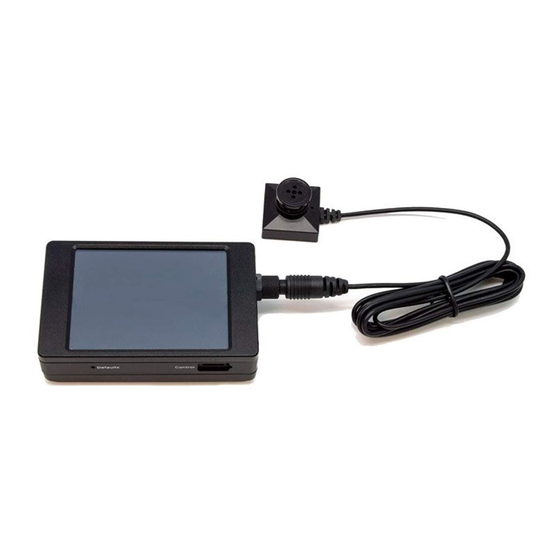

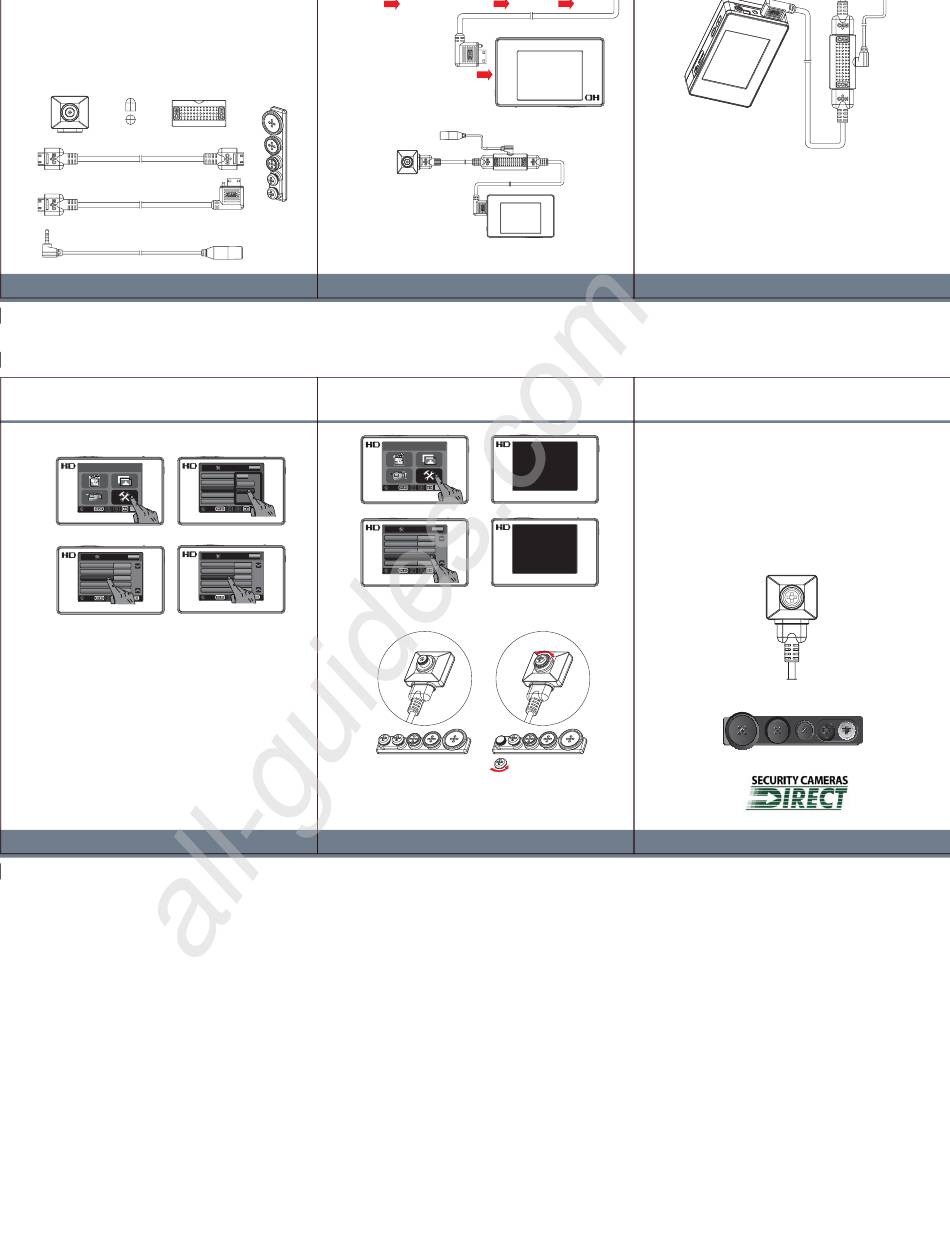

Direct PV-500EVO Quick Start Manual

1. Camera Lens 5. HDMI Socket of Connector
2. HDMI Socket of Camera 6. Extension Mic Socket
3. HDMI Jack of Cable 7. Built-in Microphone
4. HDMI Jack of Cable 8. HDMI Socket of Connector

2. Package Content

WDR Digital Camera Lens Cap Image Refine Connector
Camera to Connector Cable
Connector to DVR Cable
Extension Microphone
80x120mm

5. Setting Video Signal System

MAIN MENU
SD
STORAGE
(1)
ESC ESC ESC ESC
PAGE PAGE Settings Settings
0001/0009 0001/0009
ESC ESC
NEST
Digital CMOS Setting Digital CMOS Setting PAL
PAL
SD SD
STORAGE STORAGE
(2)
1. Press "Setting" on the Main Menu.
2. Drag the Setting Menu down to select "Digital CMOS Setting".
3. Select either PAL or NTSC based on your country's
video signal system.
4. After making your selection, press "Digital CMOS Setting" again to
complete the setting.

6. Camera Calibration

1. Press "Setting" on the Main Menu.
2. Drag the Setting Menu down to select "Digital CMOS Calibration".
3. After making your selection, "Calibrating" will appear on the screen.
4. When calibration is complete, "Cable Disconnect" will appear on the screen.
5. Unplug the cable to complete calibration.
Camera
All manuals and user guides at all-guides.com
1. Connect camera to connector
using required cable.
2. Plug-in extension microphone
to proper socket of the connector.
3. Connect connector to portable DVR
using required cable.
Covert Lens
Cap
Note: It is required to calibrate camera
and configure video signal system
after connection of all parts is established.
Connection of all Components
(1)
PAGE PAGE Settings Settings ESC ESC ESC ESC
0001/0009 0001/0009
ESC ESC
NEST
Digital CMOS Setting Digital CMOS Setting PAL
PAL
SD SD
STORAGE STORAGE
(3)
ESC ESC
PAGE Settings
0001/0009
Digital CMOS Setting PAL
SD
STORAGE

7. Change Covert Lens Cap

(4)
1. Remove the lens cap from the camera, and the desired lens cap from the set,
by unscrewing them (rotate counterclockwise).
2. Place the desired lens cap onto the camera.
3. Screw the desired lens cap onto the camera (rotate clockwise) until it is secure.
(4)
Connector
Portable DVR
Calibrating
MAIN MENU PAGE Settings
0001/0009
SD
STORAGE
(1) (3)
PAGE Settings ESC ESC
0001/0009
Cable Disconnect
Digital CMOS Calibration
SD
STORAGE
(2) (4)
1. Collect the black lens cap from the screw pack.
2. Place on top of the camera lens.
3. Press "Power" button to turn power of PV-500EVO on.
4. Then follow the steps described on next page to start
camera calibration.
(2)
MPE1033COV
Megapixel Covert Digital Camera
Quick Guide
y Cameras Direct
(5)
(3)
V1.0
