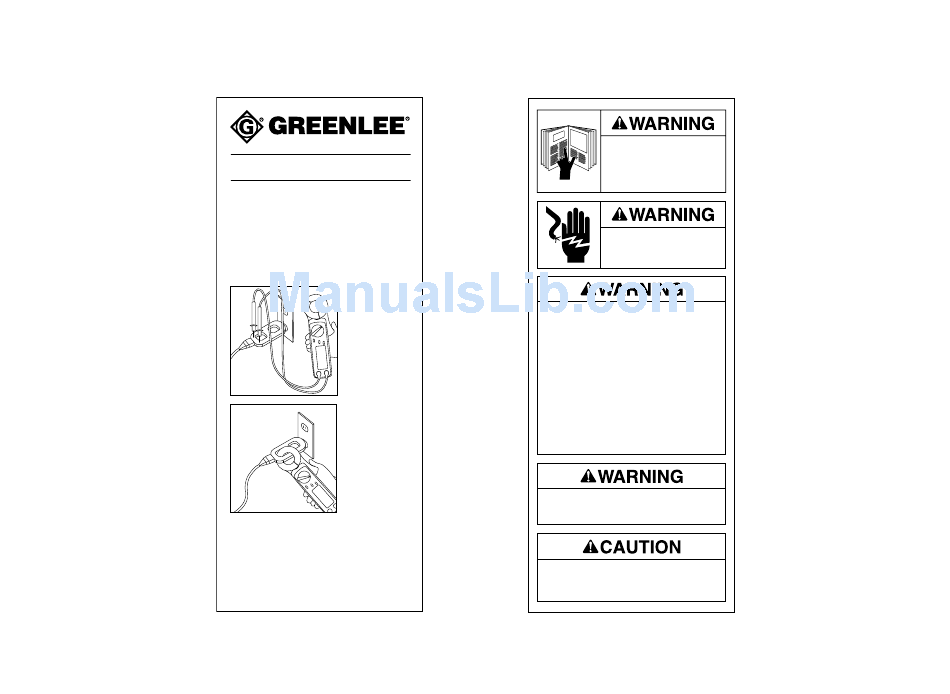

Greenlee 93-30 Supplementary Manual

93-30 Line Splitter
15 A Maximum Current
The Line Splitter is used to expand the use
of a clamp-on meter, simplifying
measurements involving 2-wire appliances.
Plug the line splitter into a power outlet and
connect the appliance to the receptacle into
line splitter.
Voltage
Measurements
Connect a volt
meter to line
splitter terminal
jacks.
Current
Measurements
Clamp a
clamp-on
ammeter
around the
appropriate
segment.
Note: Always measure current at the X1
segment first. If the current is too low to
generate an accurate reading on the clamp-
on ammeter, move the clamp-on ammeter to
the X10 segment. The meter reading will be
ten times the actual current.
999 2187.1 MADE IN TAIWAN IM 1280 REV 1
Read and understand this material
before operating or servicing this
equipment. Failure to understand
how to safely operate this tool can
result in an accident causing
serious injury or death.
Electric shock hazard:
Contact with live circuits can
result in severe injury or death.
Electric shock hazard:
• Do not use the unit if it is wet or damaged.
• Use test leads or accessories that are appropriate
for the application. See the category and voltage
rating of the test lead or accessory.
• Inspect the test leads or accessory before use.
The item(s) must be clean and dry, and the
insulation must be in good condition.
• Do not apply more than the rated voltage between
any two input terminals, or between any input
terminal and earth ground.
• Do not contact the test lead tips or any uninsulated
portion of the accessory.
Failure to observe these warnings can result in
severe injury or death.
Do not operate with the case open.
Failure to observe this warning can result in severe
injury or death.
Do not attempt to repair this unit. It contains no
user-serviceable parts.
Failure to observe this precaution can result in injury
and can damage the unit.
