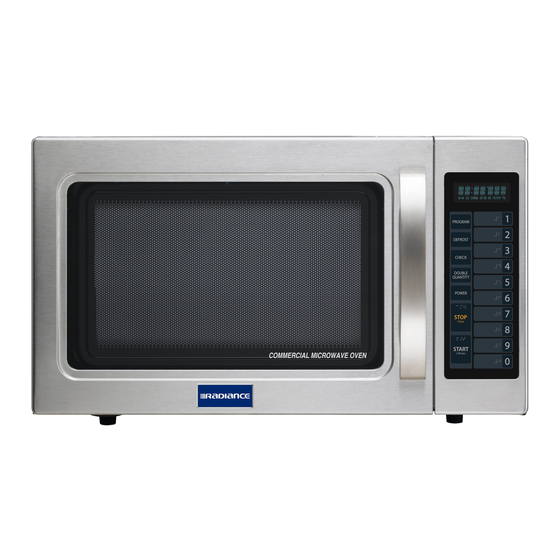

- Page 1 MICROWAVE OVEN TMW-1100NE...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (A) DO NOT ATTEMPT TO OPERATE THIS OVEN WITH THE DOOR OPEN SINCE OPEN-DOOR OPERATION CAN RESULT IN HARMFUL EXPOSURE TO MICROWAVE ENERGY. IT IS IMPORTANT NOT TO DEFEAT OR TAMPER WITH THE SAFETY INTERLOCKS. -
Page 3: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...1 TABLE OF CONTENTS ........................2 EARTHING INSTRUCTIONS ......................3 INSTALLATION ..........................3 SPECIFICATIONS..........................4 IMPORTANT .............................4 IMPORTANT SAFETY INSTRUCTIONS ..................5 FEATURES DIAGRAM........................6 OPERATION PROCEDURE ......................8 CONTROLS............................9 TIME DEFROSTING ........................ 9 COOKING IN ONE STAGE .....................10 MEMORY FUNCTION...................... -
Page 4: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. -
Page 5: Specifications
SPECIFICATIONS GROUNDING POWER CONSUMPTION 1500 W MICROWAVE OUTPUT POWER 1000 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W x H x D) 542 x 329 x 461mm (21.34 x 12.95 x 18.15 in.) CAVITY DIMENSIONS (W x H x D) 350 x 230 x 357 mm (12.78 x 3.06 x 14.06 in.) ) . -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. -
Page 7: Features Diagram
FEATURES DIAGRAM 1 SAFETY INTERLOCK SYSTEM. 5 DOOR SEAL - Door seal maintains the microwave energy within the oven cavity 2 DOOR VIEWING SCREEN - Allows and prevents microwave leakage. viewing of food. The screen is designed so 6 PLATE TRAY - Made of special heat that light can pass through, but not the microwave. - Page 8 FEATURES DIAGRAM (continued) 1 MICROWAVE indicator, showing 7 TIME SET PAD - Used to set the cooking microwaving in progress. time. 2 DEFROST indicator, showing defrosting in 8 CHECK - Used to check cooking data. progress. 9 DOUBLE QUANTITY - Used to extend 3 PERCENTAGE of power indicator.
-
Page 9: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3- pronged 240V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the plate tray. The plate tray must always be in place during cooking. -
Page 10: Controls
CONTROLS TIME DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch the DEFROST pad. The DEFROST indicator lights and " : 0" is DEFROST displayed. -
Page 11: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch the POWER pad. The MICROWAVE and % indicators light. POWER (Select desired power level.) The display will show what you touched. 2. Touch the number pads for the This example shows power level 60. cooking time. -
Page 12: Memory Function
MEMORY FUNCTION This microwave oven has 20 programmable pads (1~20). 1. Touch the PROGRAM pad. The display will show “PROGRAM”. PROGRAM 2. Touch the number pads. ex)5 The display will show “PROG-05”. 3. Touch the POWER pad. The MICROWAVE and % indicators light. (Select desired power level.) 4. -
Page 13: Start /+30 Sec
START /+30 SEC START /+30 SEC allows you to reheat for 30 seconds at 100% (full power) by simply touching the START /+30 SEC pad. By repeatedly touching the START /+30 SEC pad, you can also extend reheating time to 5 minutes by 30 second increments. -
Page 14: Child Safety Lock
CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, press and hold the STOP/CLEAR pad for 3 seconds, LOCK indicator lights. To cancel, press and hold STOP/CLEAR for 3 seconds, LOCK indicator goes off. POWER SAVE MODE This function is used for saving energy. -
Page 15: Cooking Instructions
COOKING INSTRUCTIONS Utensil Guide Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry. -
Page 16: Microwaving Principles
MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones. HOW MICROWAVES COOK FOOD Microwave oven is a Group 2 ISM equipment in which radiofrequency energy is intentionally generated and used in the form of electromagnetic radiation for the treatment of material. -
Page 17: Cooking Techniques
COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and The colder the food, the longer it takes to heat cakes, require standing time(inside or outside of up. Food from a fridge takes longer to reheat the oven) after cooking, to allow heat to finish than food at room temperature. -
Page 18: Defrosting Guide
DEFROSTING GUIDE Do not defrost covered meat. Covering might allow When defrosted, food should be cool, but softened in all cooking to take place. Always remove outer wrap and areas. If still slightly icy, return to microwave oven very tray. Use only containers that are microwave-safe. briefly, or let stand a few minutes. -
Page 19: Cooking Chart
COOKING CHART Power Cooking Time Item Special Instruction Level Per lb./450g MEAT - Chilled meat and poultry should be removed from Beef joint - Rare P-80 6-8 min. the refrigerator at least 30 minutes before - Medium P-80 7-9 min. cooking. -
Page 20: Reheating Chart
REHEATING CHART • Baby food particularly needs to be checked carefully before serving to prevent burns. • When heating pre-packaged ready-cooked foods, always follow the pack instructions carefully. • If you freeze foods which were bought from the fresh or chilled counters, remember that they should be thoroughly thawed before following the heating instructions on the packed. -
Page 21: Vegetable Chart
VEGETABLE CHART Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. -
Page 22: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN Turn the oven off before cleaning. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, plate tray, stirrer cover and inlet cover wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended. -
Page 23: Use Your Microwave Oven Safely
USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety Do not operate the oven if door seals or sealing interlocks. surfaces are damaged; or if door is bent; or if hinges Do not place any object between the oven front are loose or broken. -
Page 24: Before You Call For Service
BEFORE YOU CALL FOR SERVICE Refer to following checklist, you may prevent an unnecessary service call. * The oven doesn't work; 1. Check that the power cord is securely plugged in. 2. Check that the door firmly closed. 3. Check that the cooking time is set. 4. -
Page 25: Questions And Answers
QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven * Q : What does “standing time” mean? without any food in it. Is it damaged? A : “Standing time” means that food should be A : Running the oven empty for a short time will removed from the oven and covered for not damage the oven.
