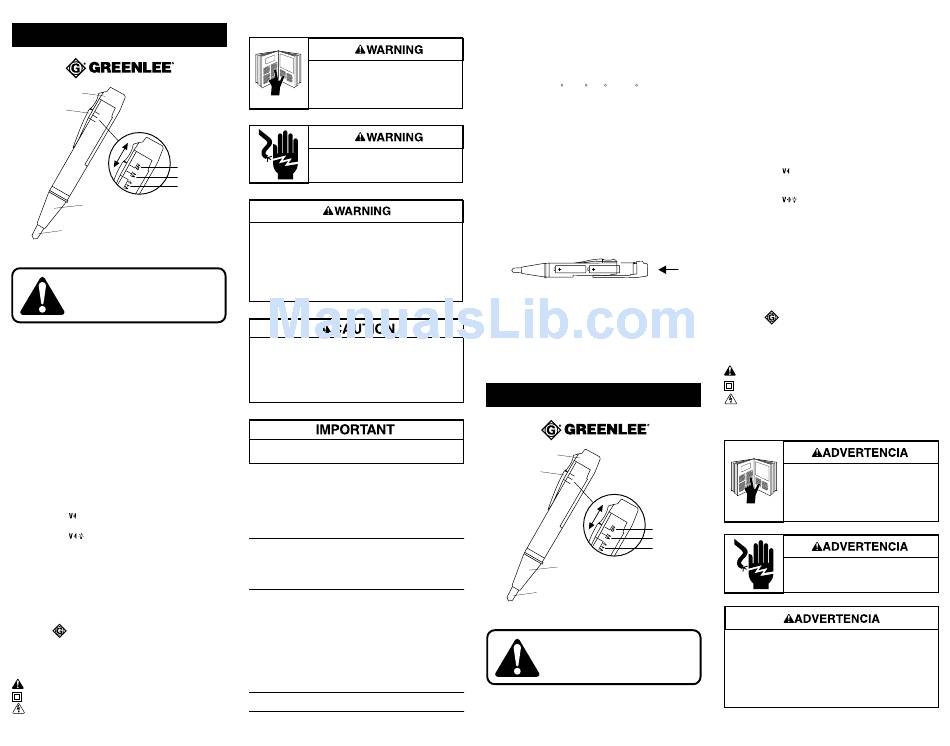

Greenlee 1112 Instruction Manual

INSTRUCTION MANUAL
3
4
Position 1
Position 2
Position 3
2
1 1112
VOLTAGE DETECTOR
Read and understand all of the instructions
and safety information in this manual before
operating or servicing this tool.
999 3796.4 ©2000 Greenlee Textron IM 1471 12/00
KEEP THIS MANUAL
Description
The Greenlee 1112 Voltage Detector is intended to check for the
presence of AC voltage, signaling the user with an intermittent tone
and flashing LEDs. In addition, the lamp function allows the LED near
the probe to act as a flashlight.
Identification
1 Test probe
2 LED for voltage indication and lamp
3 Battery case cover and LED for voltage indication
4 Clip and switch
• Position 1: Off.
• Position 2 ( ): Set to detect voltage. If voltage is present, both
LEDs 2 and 3 flash and a tone sounds.
• Position 3 ( ): Set to detect voltage with LED 2 illuminated
continuously. If voltage is present, LED 3 flashes and a tone
sounds.
Purpose
This instruction manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the Greenlee 1112
Voltage Detector.
Keep this manual available to all personnel. Replacement manuals are
available upon request at no charge.
Greenlee and are registered trademarks of Greenlee Textron.
Romex ® is a registered trademark of General Cable Industries,
Incorporated.
Symbols on the Unit
Warning—Read the instruction manual
Double insulation
Risk of electric shock
Important Safety Information
Read and understand this material before
operating or servicing this equipment. Failure to
understand how to safely operate this tool can
result in an accident causing serious injury or
death.
Electric shock hazard:
Contact with live circuits can result in severe
injury or death.
Electric shock hazard:
• Do not use the unit if it is wet or damaged.
• Do not apply more than the rated voltage between the probe tip
and earth ground.
• Do not operate with the case open.
Failure to observe these warnings can result in severe injury or
death.
• Do not attempt to repair this unit. It contains no user-
serviceable parts.
• Do not expose the unit to extremes in temperature or high
humidity. See Specifications.
Failure to observe these precautions can result in injury and can
damage the instrument.
Using this unit near equipment that generates electromagnetic
interference can result in unstable or inaccurate readings.
Operation
The Greenlee 1112 is useful for identifying hot and neutral conductors,
finding a break in a wire, and detecting the the presence of AC voltage at
outlets, switches, circuit breakers, fuses, and wires and cables,
including Romex ® .
Note: The 1112 can be used to find a break in a wire:
• To find a break in a hot conductor, trace the wire until the signal
stops.
• To find a break in a neutral conductor, connect a load between the hot
and neutral. Trace the wire until the signal stops.
1. Turn the unit on by pushing the pocket clip toward the probe to
Position 2 or 3.
2. Test the unit on a known functioning circuit or component.
• If the unit does not function as expected on a known functioning
circuit, replace the batteries.
• If the unit still does not function as expected, send the unit to
Greenlee for repair.
3. Place the probe tip on or near the circuit or unit to be tested.
Tone and flashing LED indicate the presence of voltage
(50 to 1000 VAC).
Note: The voltage detector cannot detect voltage on armored cable or
on cable in conduit, behind panels, or in metallic enclosures.
Specifications
Indicators: LEDs and tone
Voltage Range: 50 to 1000 VAC
Frequency Range: 50 to 500 Hz
Overvoltage Category: Category III, 1000 Volts
Operating Conditions: 0 C to 40 C (32 F to 104 F)
Less than 80% relative humidity (non-condensing)
Pollution Degree: 2
Battery: Two 1.5 volt batteries (AAA, NEDA 24A or IEC LR03)
Maintenance
Battery Replacement
1. Disconnect the unit from the circuit.
2. Set the switch to Position 3.
3. Remove the battery compartment cover.
4. Replace the batteries (observe polarity).
5. Replace the battery compartment cover.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent; do not
use abrasives or solvents.
MANUAL DE INSTRUCCIONES
3
4
Posición 1
Posición 2
Posición 3
2
1
1112
DETECTOR DE TENSIÓN
Lea y entienda todas las instrucciones y la
información sobre seguridad que aparecen
en este manual, antes de manejar esta
herramienta o darle mantenimiento.
999 3796.4 ©2000 Greenlee Textron IM 1471 12/00
CONSERVE ESTE MANUAL
Descripción
El Detector de tensión, modelo 1112 de Greenlee, está diseñado para
verificar la presencia de tensión alterna, mediante la emisión de un tono
intermitente y el parpadeo de diodos emisores de luz (LED). Además, la
función de la bombilla le permite al diodo emisor de luz (LED) más cerca
de la sonda servir de linterna.
Identificación
1 Sonda de prueba
2 Diodo emisor de luz (LED) para bombilla e indicación de tensión
3 Tapa del compartimiento de la pila y diodo emisor de luz (LED) para
indicar tensión
4 Sujetador e interruptor
• Posición 1: Off (Apagado).
• Posición 2 ( ): Ajustado para detectar tensión. Si se encuentra
tensión, los diodos emisores de luz (LED) 2 y 3 parpadearán y
se emitirá un tono.
• Posición 3 ( ): Ajustado para detectar tensión con el diodo
emisor de luz (LED) 2 iluminado de manera continua. Si se
encuentra tensión, el diodo emisor de luz (LED) 3 parpadeará y
se emitirá un tono.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo el
personal con los procedimientos de operación y mantenimiento seguros
para el Detector de tensión, modelo 1112 de Greenlee.
Mantenga siempre este manual al alcance de todo el personal. Puede
obtener copias adicionales de este manual de manera gratuita, previa
solicitud.
Greenlee and son marcas registradas de Greenlee Textron.
Romex ® es una marca registrada de General Cable Industries,
Incorporated.
Símbolos en la unidad
Advertencia—Lea el manual de instrucciones
Doble forro aislante
Peligro de electrocución
Importante Información sobre Seguridad
Lea y entienda este documento antes de
manejar esta herramienta o darle manteni-
miento. Utilizarla sin comprender cómo
manejarla de manera segura podría ocasionar
un accidente y, como resultado de éste, graves
lesiones o incluso la muerte.
Peligro de electrocución:
El contacto con circuitos activados puede
ocasionar graves lesiones o incluso la muerte.
Peligro de electrocución:
• No utilice esta unidad si se encuentra mojada o dañada.
• No aplique más del voltaje nominal entre la punta de la sonda
y el cable de conexión a tierra.
• No haga funcionar esta unidad con la caja abierta.
De no observarse estas advertencias pueden sufrirse graves
lesiones o incluso la muerte.
(continúa al reverso)
