Resolution Products RE310P Plus Quick Start Manual

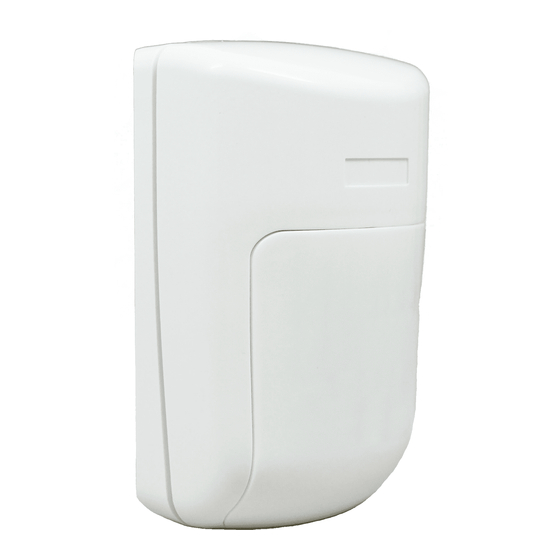

RE310P+ DSC-Compatible PIR Motion,
TWO 60-Pound-Dog-Immune
Features
PYROFLEX™ IR sensor and HighBar™ signal processing for superior performance
•
Unparalleled Pet Immunity and Catch performance
•
44 foot range and 90 degree field of view (45 degrees to each side)
•
Mountable on Flat-wall, 45 degree corner, or swivel/gimbal (sold separately).
•
Unique external contact on separate, but related, wireless ESN
•
Cover tamper.
•
Strong, reliable RF signal.
•
6-8 year battery life on CR123A battery.
•
Low Battery indication.
•
Key Instructions
Mount at 7.5 foot height for optimum performance between: Catch
•
performance, Pet Immunity and False Alarm prevention.
Motion Sensitivity:
•
Jumper on BOTH PINS for Normal sensitivity
Jumper on ONLY 1 PIN for High sensitivity.
External contact activation (enabling):
•
Insert battery while holding Tamper switch.
Seal wire routing hole.
Make sure bug / insulation foam is installed
•
Enrolling:
•
Enter Wireless Enrollment Mode in DSC Panel.
PIR: Open tamper switch. ESN = 3xx xx0
External Contact: Trip contact ESN = 2xx xx1 (x's same as PIR's)
Confirm ESN, Enter Zone # and Zone Type on DSC panel.
LED Walk Test: Press Tamper for 3 minute test:
•
LED lights when motion sensed
Sensor re-calibrates for 10 to 30 seconds after each LED blink.
It will not transmit during re-calibration.
So wait about 30 seconds before first test, and 30 seconds between
tests.
Wireless transmissions sent for each detection, so walk test can be used
for panel operation test as well
RE310P+_New_DSC-Compat_PIR_InstructionsPage 1 of 3
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Available for...
GE Operation
•
Honeywell
•
2GIG
•
DSC
•
Napco
Specifications
7.5 ft
Internal Picture
Battery
External
Contacts
RE310P+_New_DSC-Compat_PIR_InstructionsPage 2 of 3
30-Oct-14
Motion sends wireless transmission after 2 or 3 (select via jumper) pulses.
Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes
after sending an alarm transmission. This is to conserve battery life.
Tamper, when cover is opened (only Motion reports tamper, not Ext Contact).
Supervisories, every hour (including Ext Contact, if activated).
Pet Immunity: Two 60 pound dogs
Mounting hardware: #4 or #6 screws
Mounting height: 7.5 ft
Replacement Battery: CR123A 1550mAH
Temperature Range: 0F to 120F
Housing dimensions: 3.5x2.4x1.7 inches
Specifications subject to change without notice.
Use this model for ALL pet situations.
RE020 Horizontal Beam Lens also available for unique situations.
10 ft 20 ft 30 ft 40 ft
Bug
Motion Sensor
Foam
Walk Test
+
Tamper &
Sensitivity Walk Test
Jumper
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
56 ft
0 40 ft 56 ft
56 ft
LED
Switch
30-Oct-14
