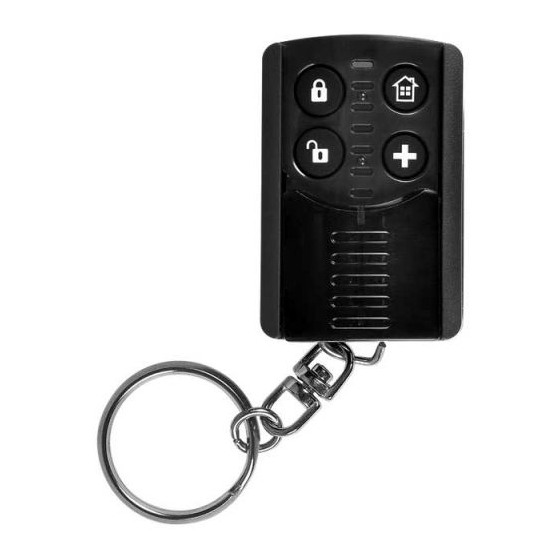

Remote Controller (RC-16)

The Remote Controller is used to arm the system in home or away mode, disarm the system and send a panic signal.


I d e n t i f y i n g t h e
I d e n t i f y i n g t h e

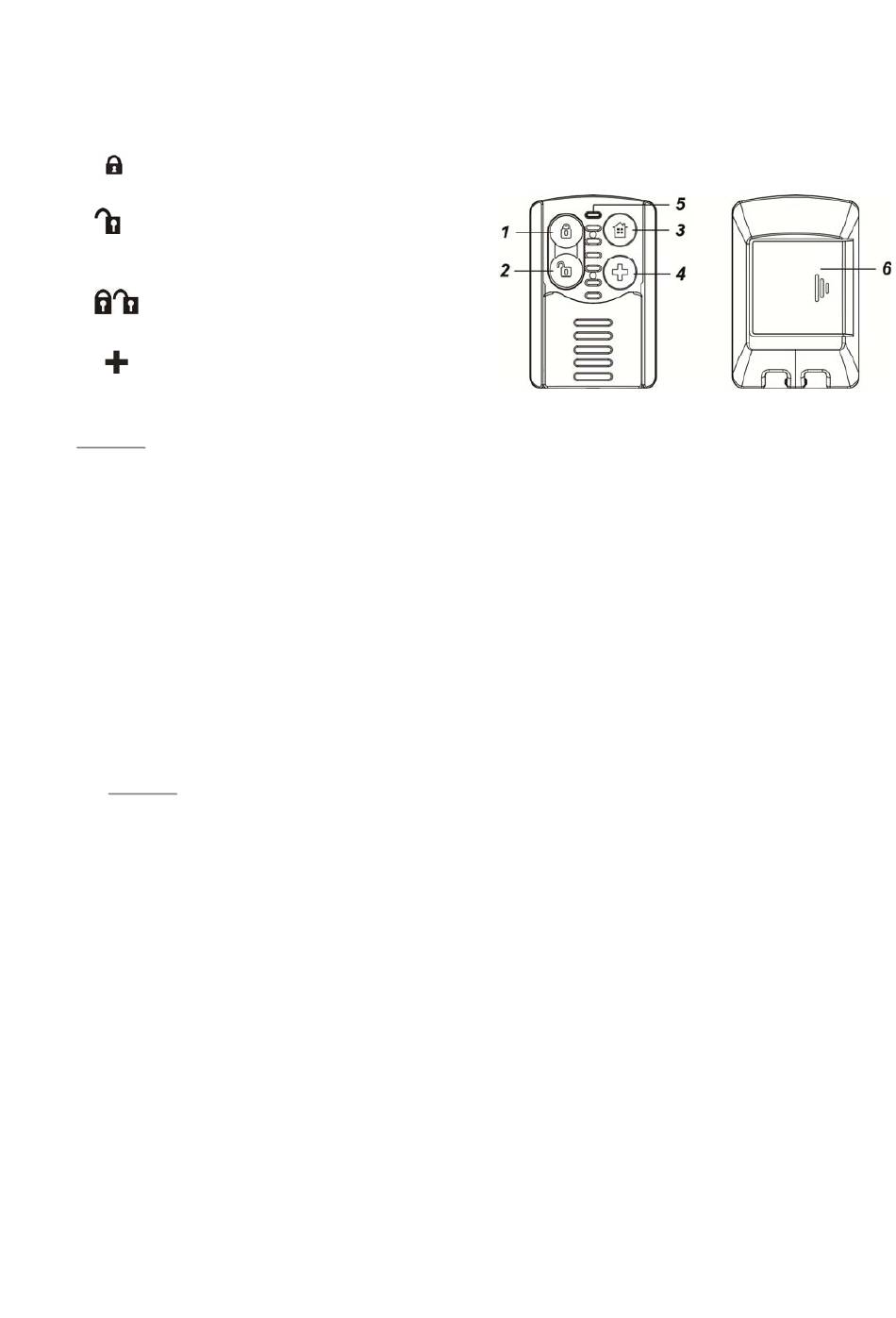

1.

BUTTON

Press this button to arm the system in away mode.
2. BUTTON
Press this button to disarm the system.
When alarm is activated, press the button to stop alarm
3. BUTTON
Pressing this button will arm the system in home mode.
4. BUTTON
Press and hold this button for 3 seconds to send a
panic signal regardless of system mode
< < N N O O T T E E > >

Panic alarm cannot be stopped after activation by pressing disarm button on Remote Controller.
LED INDICATOR (Red & Green)
5.
Red Flash: Transmitting signal
Green Flash: Receive acknowledgement and mode change success confirmation from panel
Red Quick Flash 8 Times: Receive acknowledgement and mode change fault from panel
Red ON for 5 seconds: Receive acknowledgement but no mode change confirmation/fault from panel
Red Flash 6 times: Failed to receive any acknowledgement from panel

BATTERY COMPARTMENT

6.
The Remote Controller uses one CR2032 3V mAh Lithium battery as its power source. The low battery status
will be sent to the Control Panel along with regular signal transmission, and, the Control Panel will display the
status accordingly.
< < N N O O T T E E > >

When changing battery, after removing the old battery, press any button twice to fully discharge
before inserting new battery.

When a low voltage battery is inserted, the LED will flash 3 times to indicate low battery.
 
G e t t i n g S t a r t e
G e t t i n g S t a r t e
 Remove the battery cover.
 Insert the battery with the unmarked side (negative) of the battery facing down.
 Secure the cover.
 Put the Control Panel into learning mode, refer to Control Panel manual for detail.
 Press any buttons on the Remote Controller.
 If the Control Panel receives the Remote Controller signal successfully, it will display the
information accordingly.
 Please refer to your Control Panel manual to complete the learning process.
