Summary of Contents for HTW HTW-XK60

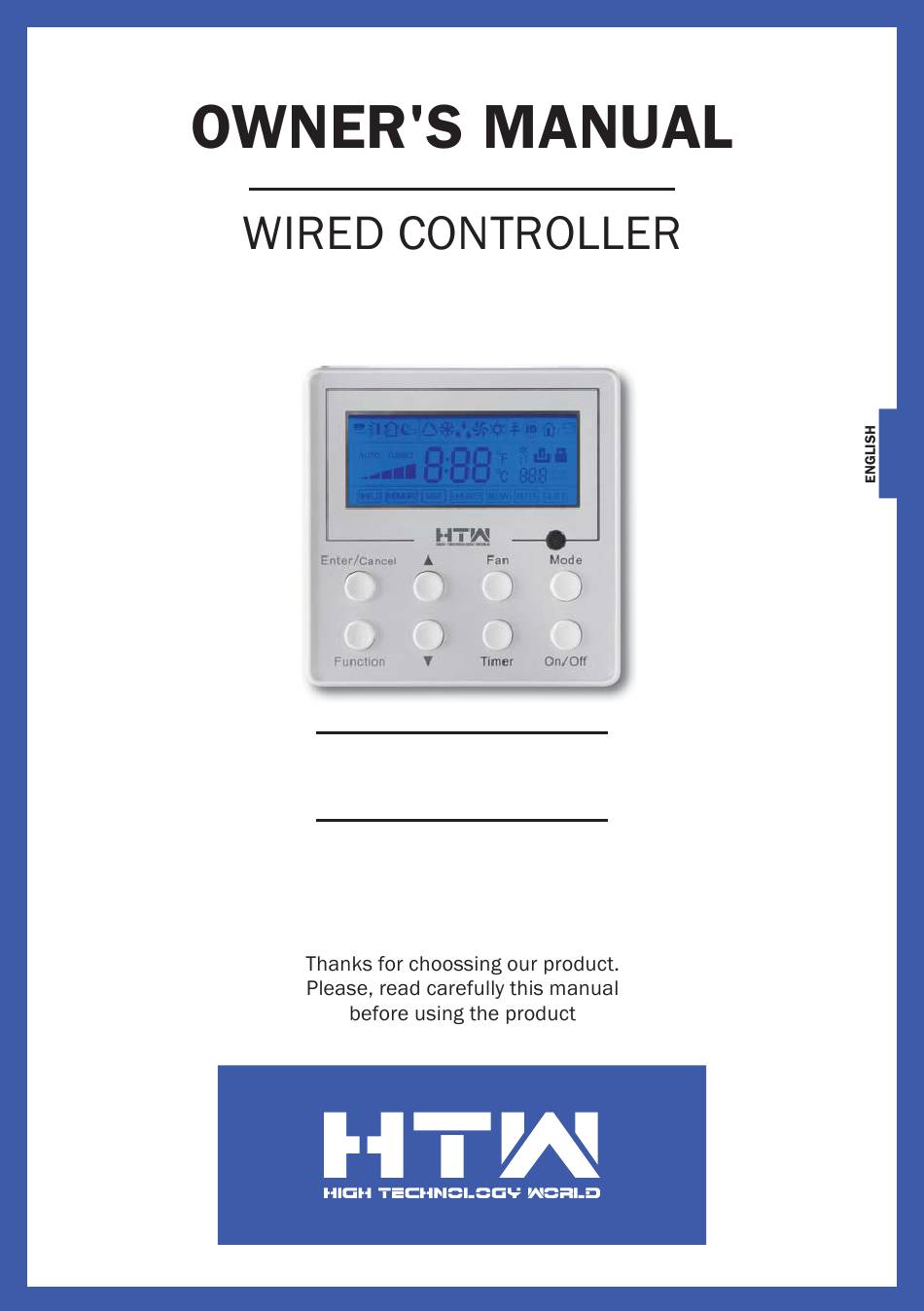

  • Page 1 HTW-XK60...
  • Page 2 User Notice Please carefully read this manual before installation and use of this product.Thanks for choosing duct type air conditioners. Please read this manual carefully before operating this product and keep it properly for future reference. In addition, please take notice of the symbols below. This mark indicates procedures which, if improperly performed, might lead to the death or serious injury of the user.

  • Page 3: Table Of Contents

    Contents 1 Introduction to the Wired Controller ......... 1 1.1 Appearance and LCD Icons ............1 1.2 Introduction to the LCD Icons ............. 2 2 Press Buttons ................3 2.1 Buttons ..................3 2.2 Instruction to the Function of Press Buttons ....... 3 3 OPERATION INSTRUCTION ..........
  • Page 4 3.20 Other Functions ..............23 4 Installation of the Wired Controller ......... 25 4.1 Standard Parts ................. 25 4.2 Installation Location and Installation Requirements ....26 4.3 How to Install the Wired Controller ........... 26 4.4 How to Remove the Wired Controller ........27 5 Error Display ................

  • Page 5: Introduction To The Wired Controller

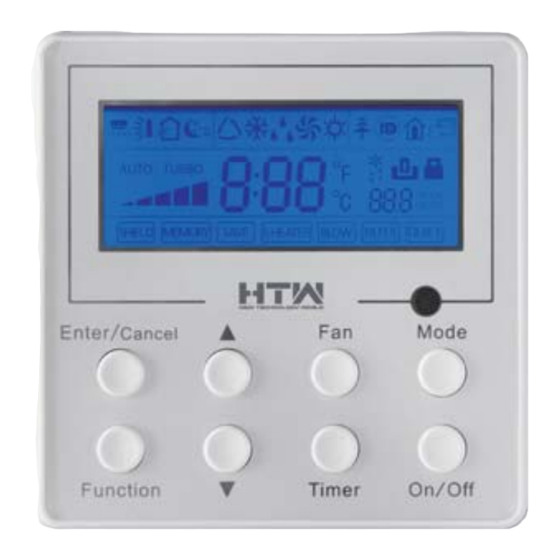

    Wired Controler XK60 1 Introduction to the Wired Controller Fig.1 Appearance of the Wired Controller 1.1 Appearance and LCD Icons Fig.2 Appearance of the LCD...

  • Page 6: Introduction To The Lcd Icons

    Wired Controler XK60 1.2 Introduction to the LCD Icons Table 1 Icons Introduction Left and right swing function Up and down swing function Air exchange function Sleep function Auto mode COOL mode DRY mode FAN mode HEAT mode Health function I-Demand function Vacation function Status display of master and slave wired controller...

  • Page 7: Press Buttons

    Wired Controler XK60 Electric heater Blow function Defrosting function Filter cleaning Timer Setting Keycard control / Detected status sensed by human body Quiet function Lock function 2 Press Buttons 2.1 Buttons Fig.3 Press Buttons 2.2 Instruction to the Function of Press Buttons Table 2 Press Buttons Function Introduction...

  • Page 8: Operation Instruction

    Wired Controler XK60 Select fan speed from high, mid-high, middle, mid-low, low and auto levels. Mode Selection of the COOL, HEAT, FAN, Auto or DRY mode. Switchover among these functions of Function SWING/AIR/SLEEP/HEALTH/I-DEMAND/VACATION/TURBO/SAVE/E-H EATER/BLOW/QUIET Timer Timer setting On/Off Turn on/off indoor unit Press Mode and ▲...

  • Page 9: Mode Setting

    Wired Controler XK60 3.2 Mode Setting Under the ON state of the unit, press the Mode button to switch the operation modes as the sequence shown in Fig.6: Fig.6 3.3 Temperature Setting Press ▲ or ▼button to increase or decrease setting temperature under on-state of the unit.

  • Page 10: Fan Speed Setting

    Wired Controler XK60 3.4 Fan Speed Setting Press Fan button, fan speed of indoor unit will change as the sequence shown in Fig.8: Fig.8 Fan Speed Setting 3.5 Right and Left Swing Under the ON state of unit, press the Function button to select the “Right and Left Swing”...

  • Page 11: Up And Down Swing

    Wired Controler XK60 Fig.9 Right and Left Swing Setting 3.6 Up and Down Swing Under the ON state of unit, press the Function button to select the "Up and Down Swing" function option and then press the Enter/Cancel to activate it. When the Swing function is activated, press the Function button to select the "Up and Down Swing"...

  • Page 12: Timer Setting

    Wired Controler XK60 Fig.10 Up and Down Swing Setting 3.7 Timer Setting Timer “On” Setting: It is intended to set when to start the unit. When the unit is OFF, press the Timer button, with xx. Hour displayed and ON blinking, then press ▲/▼to adjust the timer, after that, press the Timer button again to make a confirmation.

  • Page 13: Air Exchange Setting

    Wired Controler XK60 Timer Setting under the ON state of the Unit is as shown in Fig.11: Fig.11 Timer Setting under the ON state of the Unit Timer range: 0.5-24hr. Every press of the ▲ or ▼ button will make the setting time increased or decreased by 0.5hr.If press either of them continuously, the setting time will automatically increase/ decrease by 0.5hr every 0.5s.
  • Page 14 Wired Controler XK60 controller. 1――The unit continuously runs for 60min, and fresh air valve runs for 6 min. 2――The unit continuously runs for 60min, and fresh air valve runs for 12 min. 3――The unit continuously runs for 60min, and fresh air valve runs for 18 min. 4――The unit continuously runs for 60min, and fresh air valve runs for 2 4 min.

  • Page 15: Sleep Setting

    Wired Controler XK60 3.9 Sleep Setting Sleep on: Press the Function button under the ON state of the unit to select the “Sleep” function option and then press the Enter/Cancel button to activate it. Sleep off: When the Sleep function is activated, press the Function button to select the Sleep function option and then press the Enter/Cancel button to deactivate this function.
  • Page 16 Wired Controler XK60 Fig.14 Sleep Curve under the COOL Mode Under the Heat mode, the Sleep function is ON, the setting temperature range can be 16°C, 17~20°C, 21~27°C or 28~30°C. Each of them has a different curve as shown in Fig.15. e.g.

  • Page 17: Health Setting

    Wired Controler XK60 3.10 Health Setting Under unit on status, press “Function” button to select health function with “Health” icon flashing. Press “Enter/Cancel” button to activate health function. When health is on, press “Function” button to set function, with “health” icon flashing.

  • Page 18: Vacation Setting

    Wired Controler XK60 Fig.17 I-Demand Setting Note: The I-Demand function can be cancelled by mode switch and unit ON/OFF. After the unit is resumed, I-Demand function will be maintained. The I-Demand function can not be simultaneously set and can be cancelled by Sleep/Quiet function.

  • Page 19: Turbo Function Setting

    Wired Controler XK60 Fig.18 Vacation Setting Note: The vacation function can be only set under heating mode. The turbo function will be cancelled when the vacation function is set. The Sleep and Quiet function will be cancelled when the vacation function is set.

  • Page 20: Save Function Setting

    Wired Controler XK60 function option and then press the Enter/Cancel button to activate it. When the "Turbo" function is activated, it can be deactivated by firstly pressing the Functionbutton to select the "Turbo" option and then pressing the Enter/Cancel button. Turbo function setting is as shown in Fig.19: Fig.19 Turbo Function Setting Notes:...
  • Page 21 Wired Controler XK60 adjust the lower limit, after that, press the Enter/Cancel button to activate this function. Energy Saving Setting for Heating When the unit runs under the HEAT mode, press the Function button to select the “SAVE” function option, with “SAVING” flashing, then press the Mode button to switch to the “SAVE”...

  • Page 22: E-Heater Setting

    Wired Controler XK60 During the “SAVE” setting, if the expected setting temperature is out of the limit, then the limit temperature always prevail. 3.15 E-HEATER Setting E-HEATER: in the HEAT mode, “E-HEATER” function is allowed to be activated to improve the heating efficiency. Generally, it will be activated automatically as the unit goes into the HEAT mode through any button operations .

  • Page 23: Blow Function Setting

    Wired Controler XK60 3.16 Blow Function Setting BLOW function: After the unit is turned off, water in evaporator of indoor unit will be automatically evaporated to avoid mildew. Activation of the “Blow” Function: in the COOL or DRY mode, press the Function button to select the “Blow”...
  • Page 24 Wired Controler XK60 to adjust pollution level and press “Enter/Cancel” button to activate Filter function. When the Filter function is set, press “Function” button to set with “Filter” icon flashing. Press “▲” and “▼” to adjust till “00” is shown on the timer area. Then press “Enter/Cancel”...
  • Page 25 Wired Controler XK60 accumulated. When “9” shows up, it means the operating hour reaches 10000h. When the filter reaches middle-level pollution, “2” will be shown at the first place, When “0” shows up at the second place, the accumulated operating hour reaches 1400h.

  • Page 26: Quiet Function Setting

    Wired Controler XK60 level, and then press “Enter/Cancel” button to activate it. If the setting pollution level is lighter than before, the icon will keep flashing. If the setting pollution level is more serious, the icon will go out, and the Filter function will keep on working.

  • Page 27: Ultra-Dry Setting

    Wired Controler XK60 If quite function is set, turbo function will be canceled. 3.19 Ultra-Dry Setting Under Dry mode, when the setting temperature is 16°C, press “▼” button twice and the setting temperature will be changed to 12°C, at this time, the unit enters the Ultra-Dry function.
  • Page 28 Wired Controler XK60 those two types. Press any other button except Mode button or receive the signal from the remote controller will quit from the Enquiry function. If there is no operation in 20s, the unit will quit from this function automatically. Notes: If the unit is not connected with the ambient temperature sensor, after 12h electrification, the display of the ambient temperature sensor will be shielded.

  • Page 29: Installation Of The Wired Controller

    Wired Controler XK60 Fig.25 Indoor fan shutdown mode setting Note: In the parameter setting interface, only when “05” shown on it, the indoor fan shutdown mode can be set. Other parameters are not allowed to be modified and our company is not responsible for the unit damage or property loss due to parameter changed by customers.

  • Page 30: Installation Location And Installation Requirements

    Wired Controler XK60 4.2 Installation Location and Installation Requirements (1). Do not install the wired controller in the damp place or under direct sunlight. (2). Do not install the wired controller close to the hi-temperature object or place where the wired controller is likely to suffer water spray. (3).

  • Page 31: How To Remove The Wired Controller

    Wired Controler XK60 Fig.27 Installation of the Wired Controller Brief instructions: Pull out the 2-core signal line from the mounting hole and pass this line through the round hole located at the bottom of the wired controller. Use M4×25 screws to fix the soleplate of the wired controller on the wall. Fix the signal line on the copper tabs X1 and X2.
  • Page 32 Wired Controler XK60 When error occurs, please immediately shut down the unit and contact professional personnel. As shown in the Fig.29 means the high pressure protection. Fig.29 Error codes and their meanings: Table 5 Number Error code Error Compressor high pressure protection Indoor anti-freeze protection Compressor low pressure protection, refrigerant lack protection and refrigerant colleting mode...
  • Page 33 Wired Controler XK60 Outdoor memory chip error Electric box sensor error Compressor overload protection Overloading IPM protection DC fan motor error Drive desynchronizing protection Pfc protection Humidity sensor error Activation failure Compressor phase sequence protection Power protection Indoor and outdoor mismatch Phase loss or reverse protection 4-way valve direction changing protection Drive reset protection...
  • Page 34 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@htwspain.com www.htwspain.com...
