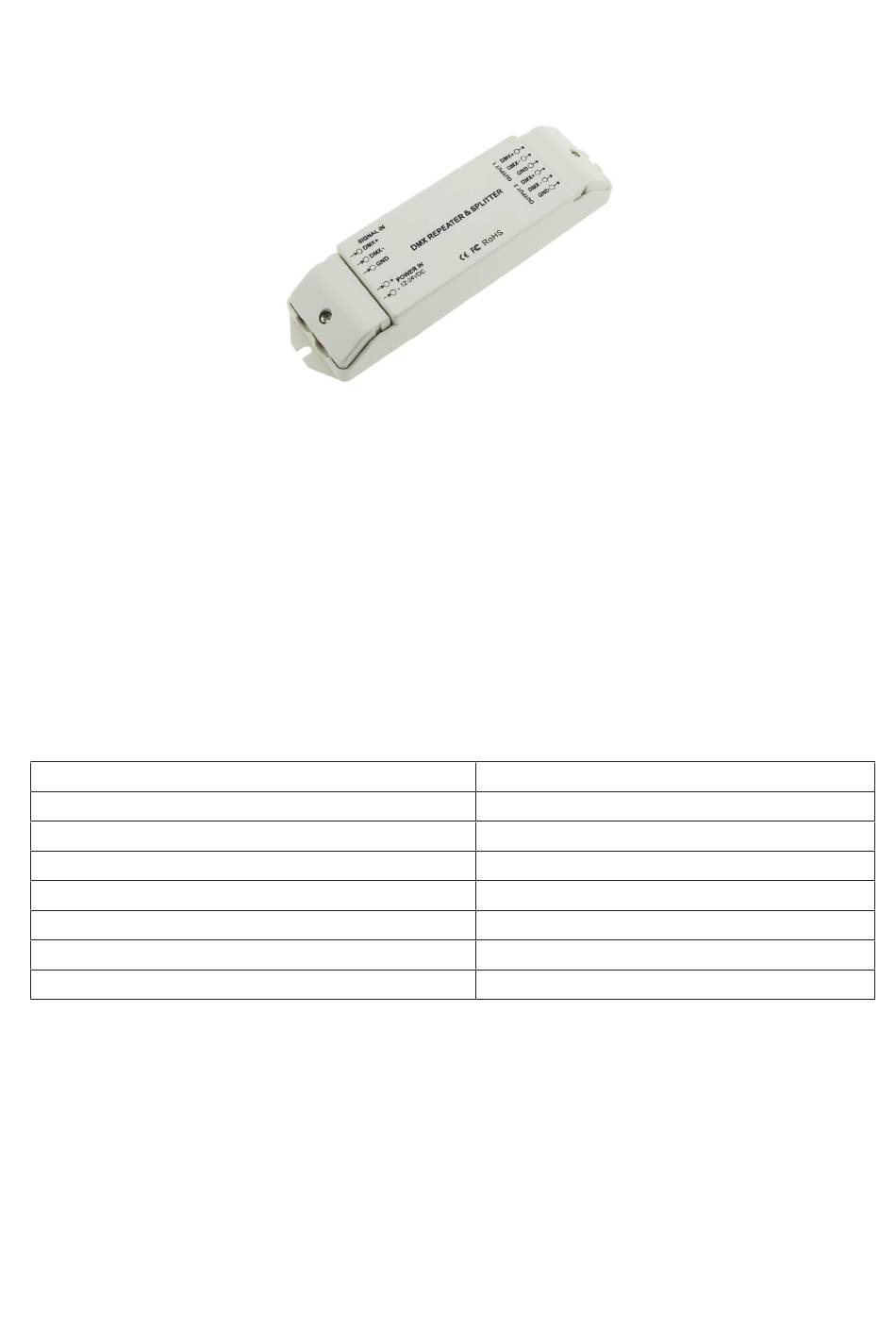

AUTLED LC-009-202 User Manual

LED DMX Repeater and Splitter - User Manual

1. Product Introduction

Welcome to use the DMX512 signal amplifier, which is developed for shaping and
enlargement the attenuated of the DMX512 signal after the long-distance transmission.
It has two output channels; there is optical isolation between the input and output, each
interface has an independent electrical isolation, there is wrong wiring protection at DMX
input and output port, to avoid the interference to the DMX512 control system, guarantee
the DMX signal can transmit to all the lighting control equipment, and improving the overall
reliability of digital lighting control system.

2. Specifications

Input Voltage
Input Signal
Output Signal
Input/Output Channel
Input/Output Isolated Voltage
DMX Signal Socket
Dimensions (L x W x H in mm)
Weight

3. Basic Features

1. Working voltage from DC12V-DC24V.
2. Optical isolation between the input and output
3. Input and output standard DMX512 signal.
4. Amplify the DMX512/1990 signal and extend signal transmission distance.
5. One input channel, two independent electrical isolation signal output.
6. 3000VDC Isolation voltage 3000VDC.
7. Wrong wiring protection at DMX input and output port.
Item no.: LC-009-202
12-24VDC
DMX512/1990
DMX512/1990
1 Input Channel, 2 Output Channels
3000VDC
Terminal block
176 x 46 x 30mm
140g
