REIGN TX-100-NC Manual

Transmitter & receiver kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The Reign TX-100-NC & XRE-100 transmitter/receiver kit is a
revolutionary product. This product allows for wirelessly triggering
a relay through a battery powered hand held transmitter with
extreme range, no line-of-sight wireless technology.
WHAT'S INCLUDED
There are two pieces included in the TX-100-NC to XRE-100 kit.

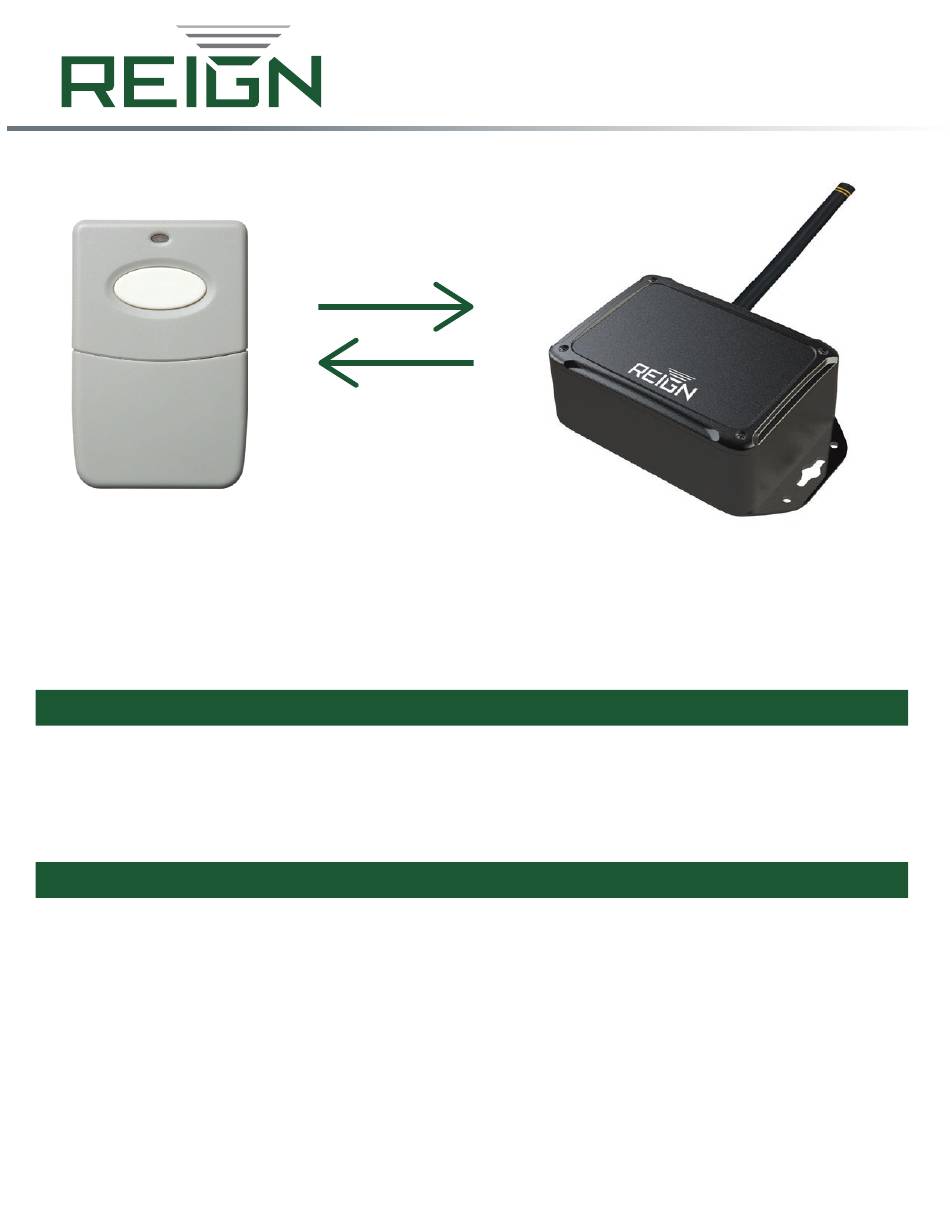

The Reign TX-100-NC to XRE-100 kit includes (1) TX-100-NC (transmitter) and (1) XRE-100 (receiver units).
HOW IT WORKS...
Congratulations on your purchase of the Transmitter Solutions TX-100-NC to XRE-100 - Transmitter/Receiver kit. It has
been designed with state-of-the-art radio technology to provide maximum transmission through obstruction and
interference.
The TX-100-NC to XRE-100 kit can be easily paired together with the program/learn button on the XRE-100 board.
Simply connect the Dry output closure to the device you are triggering and you will be up and running.
The TX-100-NC is a send/receiver unit that sends a signal when the button is pressed, indicated by a red LED light.
And receives a signal back, indicated by a green LED light. This allows users to know the signal was sent and received
by the corresponding XRE-100 unit.
IMPORTANT - When using XRE to TX-100-NC, Mode Dipswitch 2 ON
T X – 1 0 0
TRANSMITTER & RECEIVER KIT
R E I G N w i r e l e s s
t e c h n o l o g y
nc & X R E – 1 0 0
–
v.7.27.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-100-NC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REIGN TX-100-NC

  • Page 1 Simply connect the Dry output closure to the device you are triggering and you will be up and running. The TX-100-NC is a send/receiver unit that sends a signal when the button is pressed, indicated by a red LED light.

  • Page 2: Table Of Contents

    CONTENTS: ............. . .

  • Page 3: Receiver Specifications

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The TX-100-NC while in use must have a separation distance of at least 20 cm from all persons, such as vehicle visor mount or wall mount, and must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 4: Transmitter Specifications

    . TRANSMITTER SPECIFICATIONS Minimum / Maximum Temperature Range: -40°F to 185°F (-40°C to 85°C) Security Encryption: AES Range: 1/2 mile (Through obstructions) Power: 9V Lithiom Battery 3-1/2” 2-3/8” MODE DIP SWITCHES SWITCH 1 – Learn Mode SWITCH 2 – Not used SWITCH 3 –...

  • Page 5: Power Details

    . POWER DETAILS The XRE-100 requires 1 amp of current draw to transmit at full power. IMPORTANT - XRE REQUIRES AT LEAST 1AMP POWER SUPPLY POWER INPUT: 1 AMP Minimum Power Input: 12 to 24 VOLTS AC/DC. Always follow polarity when DC Power is used. BATTERY INPUT: Battery Input: for 12 Volt Sealed Lead Acid (SLA) battery only.

  • Page 6: Led Indicators

    . LED INDICATORS STATUS LEDs: RECEIVE - flashes GREEN momentarily when a valid radio transmission is received. TRANSMIT - flashes RED momentarily when the unit transmits a packet as a result of an Relay Input change event or handshake. STATUS/ PROG - flashes yellow patterns indicating status of the unit: pairing, error, etc.

  • Page 7: Relay Diagram And Wiring

    Relay Outputs - The Reign XRE-100 comes with 2-relay outputs. Relay 1 is the relay specified for use when the TX-100-NC is triggered. Relay 2 is used as a delay relay set for a certain amount of time to trigger after relay 1 is activated.

  • Page 8: Dip Switches

    FUNCTION PROGRAM/TEST BUTTON: To program turn DIP switch 1 to the on position in both the XRE-100 and TX-100-NC. With both DIP switches turned on press the TX-100-NC transmit button. If done correctly the XRE-100 will flash yellow status LED 3 times and TX-100 will flash green LED 3 times.

  • Page 9: Battery Backup

    GREEN LED indicates battery is charged and a trickle/conditioning charge is occurring. . PAIRING UNIT IN THE FIELD To program turn DIP switch 1 to the on position in both the XRE-100 and TX-100-NC. With both DIP switches turned on press the TX-100-NC transmit button.

  • Page 10: Troubleshooting

    1 - Check the Run LED on the XRE-100-NC. Normal operation will be orange LED flashing once a second. 2 - Press the button on the TX-100-NC. When pressed, the TX-100-NC will send a radio test packet and the RED TRANSMIT LED will illuminate.
  • Page 11 WARRANTY The warranty period of this product is 24 months, beginning from the manufacturing date. During this period, if the product does not operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Transmitter Solutions.
  • Page 12 866.975.0101 • 866.975.0404 www.transmittersolutions.com...
