Important Safety Notes

> All safety elements are designed for safe operation by one person, so
the machine must not be operated by more than one person at a time.
> Distances between the feed opening, the emergency-off switch etc. are designed
for safe operation by adults. Children must be kept away from the machine if it is
connected to a power supply.
> Before using this machine, tie back long hair and remove neckties, jewellery,
scarves or other loose items that may present a risk.
> Do not insert fingers into the feed aperture when the machine is running.
> In the event of an emergency, switch off the machine at the main switch or
emergency stop button and disconnect immediately from the mains power supply
> Always ensure that the machine is disconnected from the mains at the power
socket before opening the housing for cleaning and maintenance work.
> Repairs must only be carried out by a specialist.
> All Ecopax Shredders are manufactured to exceed the safety requirements outlined
in BS EN ISO 13857:2008 'Safety of machinery - Safety distances to prevent hazard
zones being reached by upper and lower limbs'.
This British Standard is the UK implementation of EN ISO 13857:2008 and states
that an opening to the blades of 20mm height must have a minimum safety
distance from the blades to the opening of 120mm.
In line with our policy of providing premium quality equipment, Optimax shredders
are now manufactured with a safety distance of 140mm.
20mm
4
Additional 20mm
safety guard fitted
to all Optimax
Ecopax Shredders
OPTIMUM QUALITY MAXIMUM RELIABILITY
Operating Instructions – Start-up

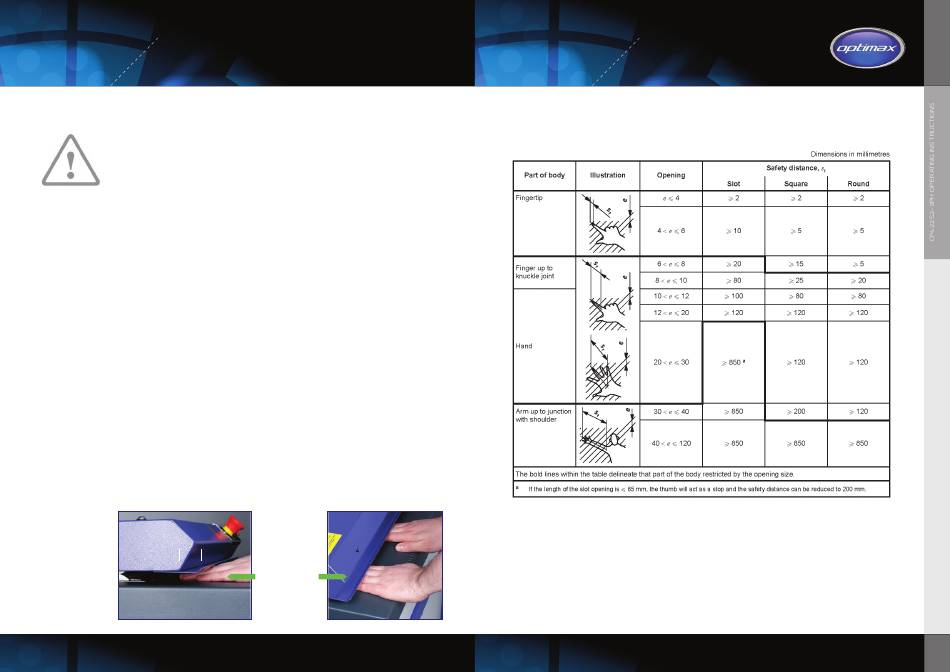

Extract: Illustration from the EN ISO 13857:2008 regulation.
Table 5 — Reaching through regular openings — Persons of 14 years of age and above

Electrical Connection

Connection to a 380/400V 50Hz three phase supply is required for operation of the
CP422S2-3PH. The CP422S2-3PH is supplied with a 2 metre power lead with a 16A Cekon
connector, which uses slow blow 16A replacement fuses.
