Summary of Contents for Siebert C9302-YE

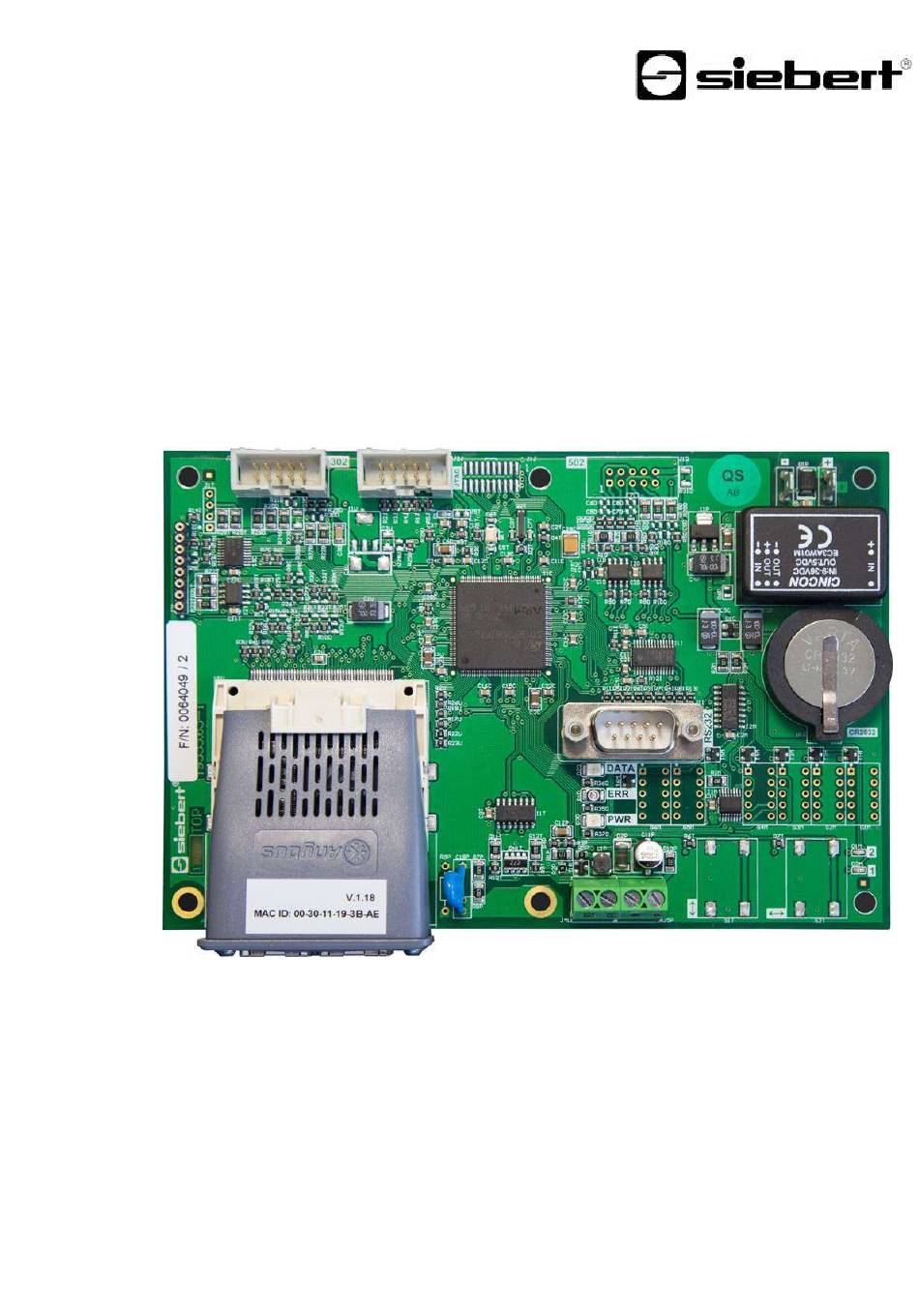

  • Page 1 C9302-YE ® Control computer for XC-Boards with EtherNet/IP interface Operating instructions...
  • Page 2: Contact

    Contact www.siebert-group.com GERMANY Siebert Industrieelektronik GmbH Siebertstrasse, D-66571 Eppelborn P.O. Box 11 30, D-66565 Eppelborn Phone +49 (0)6806 980-0, Fax +49 (0)6806 980-999 email: info.de@siebert-group.com AUSTRIA Siebert Österreich GmbH Mooslackengasse 17, A-1190 Wien Phone +43 (0)1 890 63 86-0, Fax +43 (0)1 890 63 86-99 email: info.at@siebert-group.com...
  • Page 3: Legal Note

    Siebert , LRD and XC-Board are registered trademarks of Siebert Industrieelektronik GmbH. All other product names mentioned herein may be trademarks or registered trademarks of their respective owners. We reserve the right to make alterations to the technical data and delivery options without notice. - All rights reserved, including the rights of translation.
  • Page 4: Table Of Contents

    Table of contents 1 Contact 2 Legal note 3 Safety precautions Important information ............................5 Safety ................................. 5 Intended use ............................... 5 Mounting and installation ............................ 5 Grounding ................................5 EMC measures ..............................6 Disposal ................................6 4 Field control ®...
  • Page 5: Safety Precautions

    Safety precautions Important information Read these operating instructions before starting the unit. They provide you with important information on the use, safety and maintenance of the units. This helps you to protect yourself and prevent damage to the unit. Information intended to help you to avoid death, bodily harm or considerable damage to property is highlighted by the warning triangle shown here;...
  • Page 6: Emc Measures

    EMC measures The devices comply with the current EU Directive (EMC Directive) and provide the required interference immunity. Observe the following when connecting the operating voltage and data cables: Use shielded data cables. The data and operating voltage cables must be laid separately. They may not be laid together with heavy-current cables or other interference-producing cables.
  • Page 7: Field Control

    Field control ® XC-Board The control computer C9302-YE is used for the selective control and formatting of numeric or ® alphanumeric display fields in XC-Boards via an EtherNet/IP interface. The following figure shows an example of an XC-Board ® with four display panels:...
  • Page 8: Number Format

    Alternatively, you can change the IP settings using the program 'EtherNet/IP Tool'. You find the program on the data carrier included in delivery as a ZIP archive file or on www.siebert-group.com. After unpacking this file, the program 'EthernetIPTool.exe' can be run without installation.
  • Page 9 Enter the desired IP settings and click the 'OK' button. After successful configuration the following window opens: After that the display carries out a restart and can be accesses via the new IP settings. The windows is closed by clicking 'OK' once and a new search for EtherNet/IP-devices starts. BAL C302 EIP 1.11 9/17...
  • Page 10: Data Format

    Datenformat Data format The EDS data file is included in delivery or see on www.siebert-group.com. The name of the display is 'S302-YE' and it uses the following settings: Originator to Target (O  T) Target to Originator (T  O)
  • Page 11: Messages On The Display

    Meldungen Messages on the display The status of the EtherNet/IP connection is indicated by the status LEDs on the right side and on the left side of the two RJ45 sockets. LED NS (on the left side of the RJ45 socket of Port P1) Status Meaning offline...
  • Page 12: Setting The Display Type Via Properties

    Setting the display type via Properties Each number, which is sent to the display via EtherNet/IP, is sent together with a Property value. This value defines how the transmitted number is interpreted by the display. In this case the Property value has the structure '%QW0' = '16#hhnn'. The high byte 'hh' corresponds to the display field number for which the data sent are valid (p.e.
  • Page 13: Threshold Values Range

    Threshold values Range (property numbers 4 (16#04) und 5 (16#05)) This initialization value defines the upper and lower thresholds at which the display automatically changes its display attribute. Meaning Property number Data type Default values Upper bound 4 (16#04) SINT32 -2147483648 (16#80000000) Lower bound 5 (16#05)
  • Page 14: Flashing Modes And Display Attributes

    Flashing modes and display attributes The display can show the values to be displayed in a plurality of brightness and blinking patterns, which are referred to as 'display attribute'. For the initialization parameters, two blocks are defined: a block for 'standard attributes' (property number 7 (16#07)), the other for 'out of range attributes' (property number 9 (16#09)).
  • Page 15: Flags

    Flags Flags Bit number Meaning Default 31…9 0 Circumferential frame off 1 Circumferential frame on Underflow off Underflow on Overflow off Overflow on Invalid initial value off Invalid initial value on Smart-Dot-Function off Smart-Dot-Function on The decimal places are trancated.* The decimal places are rounded up* The decimal places are rounded down.* The decimal places are rounded commercially.*...
  • Page 16: Setting The Basic Brightnesst

    Einstellung der Setting the basic brightnesst The basic brightness can be set with the value Property = '16#000x'. The following values are allowed for x: Global property number Meaning Allowed values Select luminosity value 0 (16#0) = Standard brightness (default) 1 (16#1) = Out of range brightness Standard-luminosity 0 (16#0) = off...
  • Page 17: Technical Data

    Technische Technical data Fieldbus Interface EtherNet/IP MAC address The MAC address for the field bus coupling can be found on the control computer of the device. Integrated switch BAL C302 EIP 1.11 17/17...
