Summary of Contents for Star Manufacturing International HWP

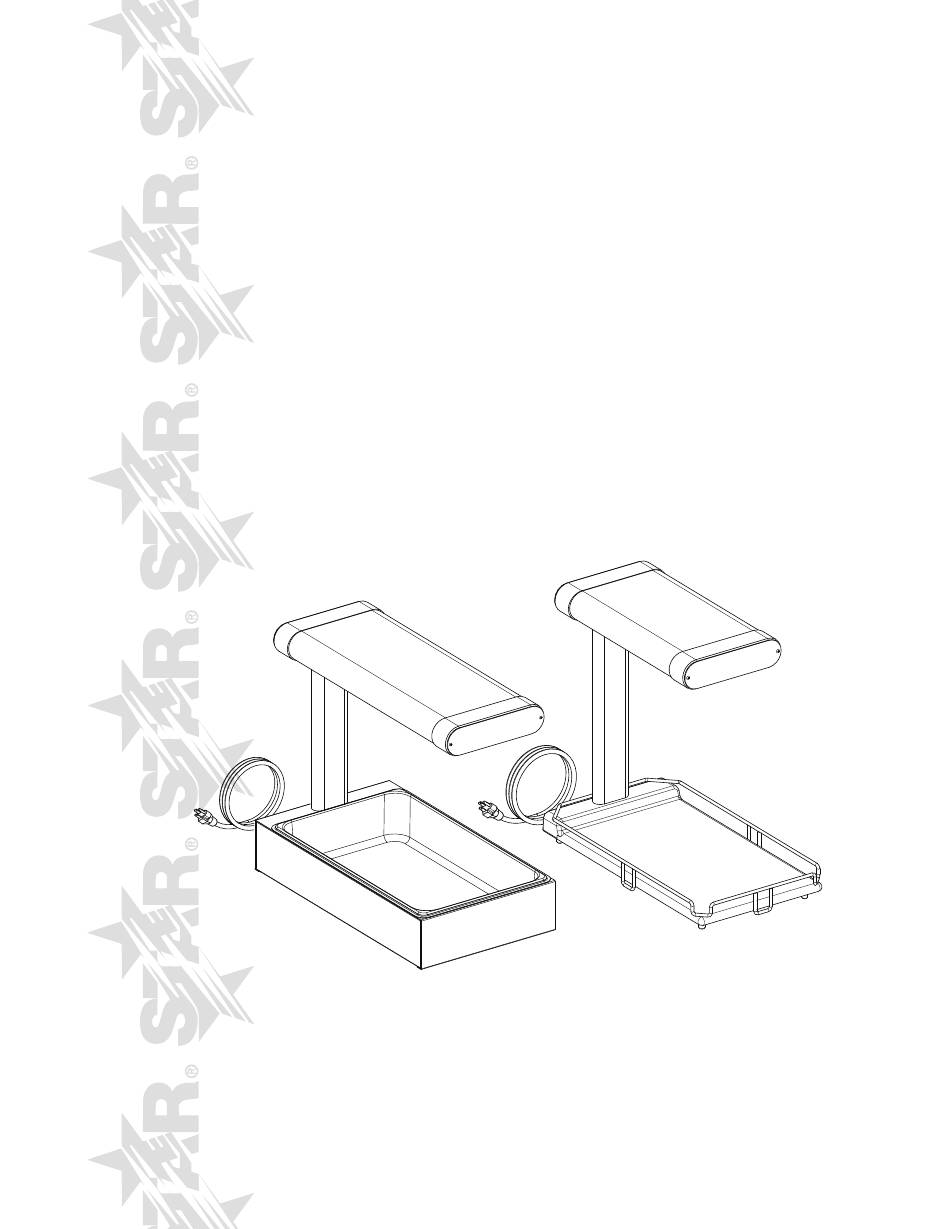

- Page 1 PORTABLE FOOD WARMER MODEL Installation and Operation Instructions 2M-Z14531 Rev. A 11/14/2012 HWP-2C HWP-1...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
- Page 3 Depth Height Width HWP Calrod Element HWP Ceramic Element Height Width Depth IL2197 HWP-2CL L: Light HWP: Model Designation C: Ceramic Element 1: Non-Heated Base 2: Heated Base Specifications Size Element Elec. Model Heated Base Light Cord Type Included Supply...
- Page 4 GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for CAUTION use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &...
- Page 5 OPERATION Swivel Top (HWP-2 model only) Heated Top (Optional Lighted) Heat Switch Controls Pan Rail Power Cord Base (Optional Base Heat) IL2199a INITIAL START-UP Before using the unit for the first time, wipe down the surface a damp cloth. Take to a well ventilated area and heat without good product for approximately 0 minutes.
- Page 6 ELEMENT BLACK GREEN BLACK BLACK GREEN GREEN WHITE WHITE WHITE PLUG THERMISTAT PLUG PLUG MODEL: HWP-1 MODEL: HWP-2 MODEL: HWP-1C WIRE DIAGRAM, 120V WIRE DIAGRAM, 120V WIRE DIAGRAM, 120V SK2496 03/14/11 SK2499 03/14/11 SK2498 03/14/11 TOP HEATING ELEMENT TOP HEATING...
- Page 7 SK2492 HWP Portable Food Warmers Parts List Fig No Part No Description Application 2S-Z13998 BULB SHATTE RESISTANT HWP-2CL 2E-Y5921 SCOKET SPRING CLIP MOUNT HWP-2CL 2N-Z14311 ELEMENT, CAL-ROD HWP-1, HWP-2 2N-Z14312 ELEMENT, CERAMIC HWP-1C, HWP-2C, HWP-2CL REAR PLATE, 1 SWITCH 2E-Z13989...
- Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
