BlueJay

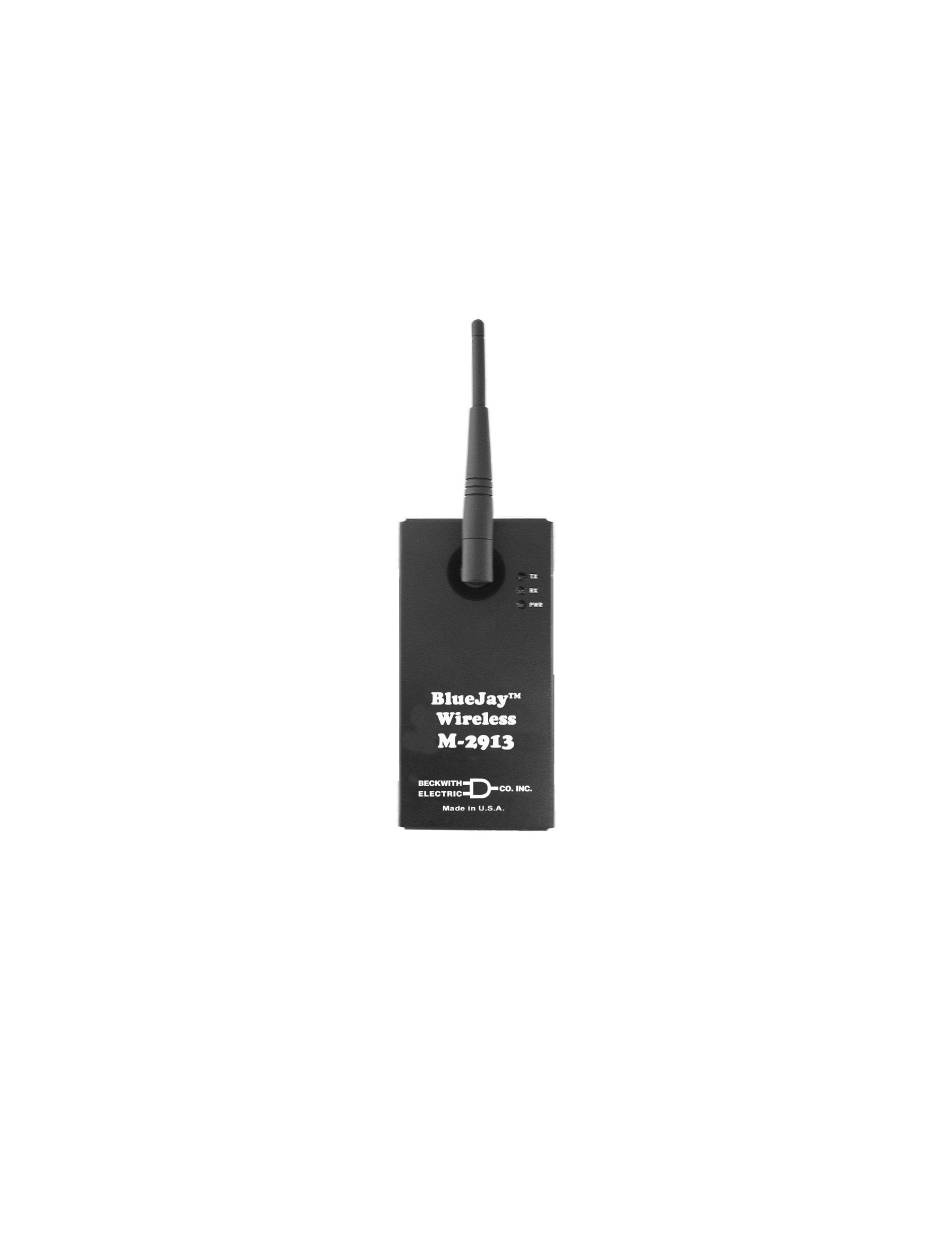

Data Transceiver
M-2913
•
Provides direct sequence spread spectrum peer-to-peer, point-to-
point, point-to-multipoint and master/slave high speed (1 Mbps) data
transmission rates at ranges up to 1500 feet
•
Interfaces with host computer running Windows 98–SE or later
•
Substation hardened to withstand temperatures from -40 to +80
degrees C and humidity up to 95%
™
Wireless
CONTROLS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BECKWITH ELECTRIC BlueJay M-2913
Summary of Contents for BECKWITH ELECTRIC BlueJay M-2913
- Page 1 CONTROLS ™ BlueJay Wireless Data Transceiver M-2913 • Provides direct sequence spread spectrum peer-to-peer, point-to- point, point-to-multipoint and master/slave high speed (1 Mbps) data transmission rates at ranges up to 1500 feet • Interfaces with host computer running Windows 98–SE or later •...
-
Page 2: Fcc Radiation Exposure Statement
If these do not correct the interference, consult an experienced radio/television technician for assistance. Correcting such interference is the responsibility of the user, not the manufacturer. Changes or modifications not expressly approved by Beckwith Electric Co., Inc. may void the user's authority to operate the equipment. - Page 3 ■ NOTE: For maximum range, all antennas must be oriented in the same plane. Accessories 18" Cable Extension – Beckwith Electric Part No. 420-00395 6' Cable Extension – Beckwith Electric Part No. 420-00391 13' Cable Extension – Beckwith Electric Part No. 420-00392 M-TBD –...
- Page 4 RTU cannot poll all units simultaneously. Optimal Antenna Configuration A variety of antenna types can be used with the M-2913. The antennas available from Beckwith Electric are FCC qualified for use with our product. Use of an antenna not supplied by Beckwith Electric could violate FCC licensing and result in fines to the user.
- Page 5 2.4 GHz telephones, WiFi access points, or Bluetooth wireless devices. If the interference cannot be compensated for by relocating the antennas or reducing the distance between them, then other antenna types may be necessary. Please contact Beckwith Electric if you would like to discuss other antenna options.
- Page 6 U . S. A . IED equipped with an M-2911 BlueJay Wireless No Obstructions Data Transceiver Between Antennas Laptop USB Cable Beckwith Electric M-6200 Series Autodaptive Control equipped with an M-2910 BlueJay Wireless Data Transceiver Figure 9 Line of Site Orientation of Antennas Environmental Temperature: Proper operation maintained from –40°C to +80°C.
- Page 7 M-2913 BlueJay Wireless Data Transceiver 1.06 1.46 4.51 P WR 5.52 BlueJay WIRELESS M-2913 BECKWIT H CO. INC. EL ECT RIC Ma d e i n U.S .A . 2.75 Figure 10 Outline Dimensions –7–...
-
Page 8: Safety And Cautions
Do not attempt to perform maintenance or service functions that are not described in the operating instructions. Instead, refer all such service requirements to Beckwith Electric Co., Inc. Unit must be returned for service in secure (preferably original) packaging. Shipping cost must be paid by user. - Page 9 M-2913 BlueJay Wireless Data Transceiver Patent & Warranty ■ NOTE: Changes or modifications to the unit not expressly approved by Beckwith Electric Co. may void the user's authority to operate the equipment. U.S. Patent for the M-2913 BlueJay™ Wireless Data Transceiver is pending.
- Page 10 BECKWITH ELECTRIC CO., INC. 6190 - 118th Avenue North • Largo, Florida 33773-3724 U.S.A. PHONE (727) 544-2326 • FAX (727) 546-0121 E-MAIL marketing@beckwithelectric.com WEB PAGE www.beckwithelectric.com © 2003 Beckwith Electric Printed in U.S.A. (8.26.03) 800-2913-SP-00(C) 07/04...
