Summary of Contents for KVMSwitchTech HDMI3DPOE-230

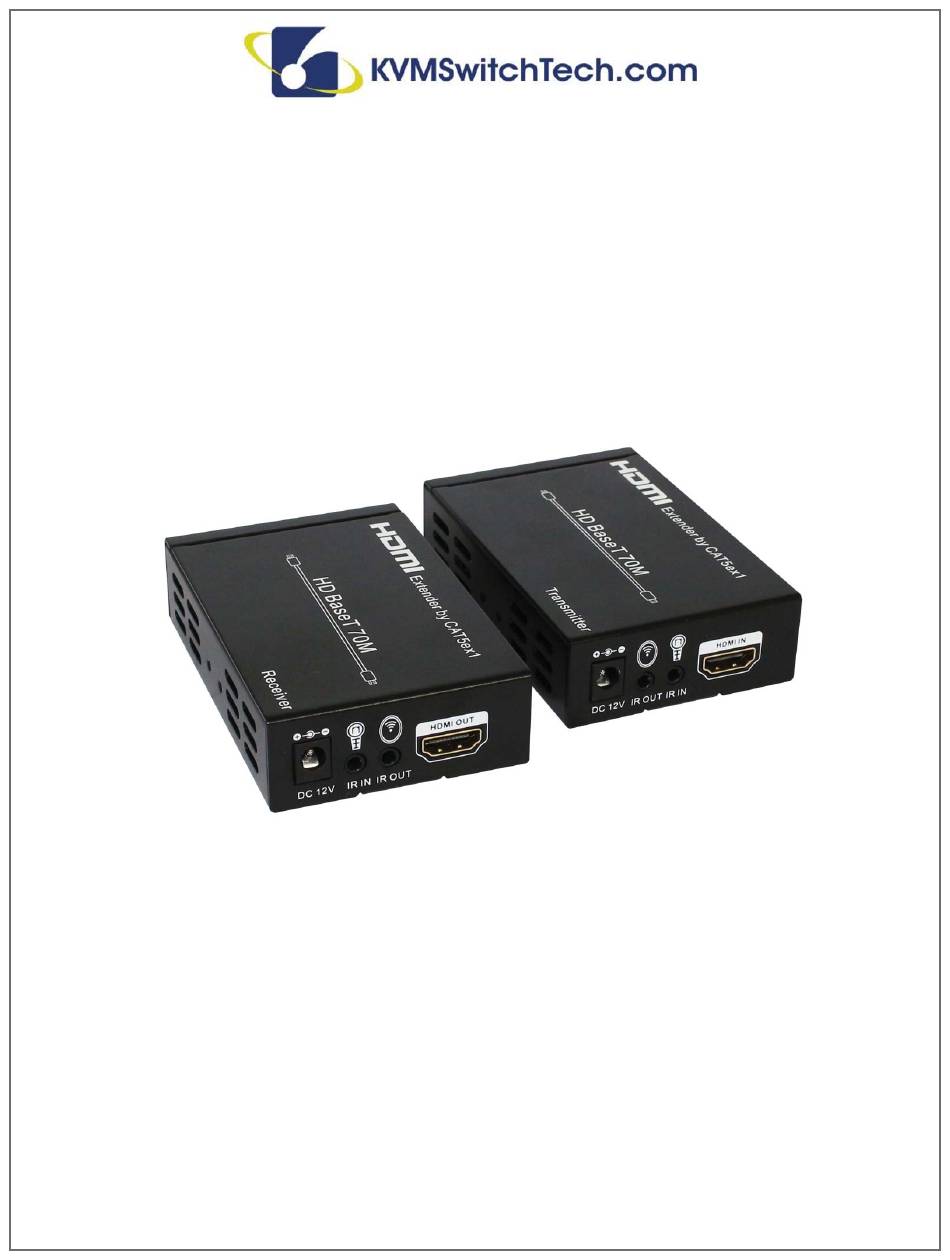

- Page 1 HDMI3DPOE-230 HDMI Extender over HDBaseT INSTRUCTION MANUAL 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737 V.1.2...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. - Page 3 • Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged. device or the display. The HDMI3DPOE-230 operates at 1080p up to 230 feet (70m) using CAT5e or better. The greatest feature is •...
-
Page 4: Features And Specifications
FEATURES & SPECIFICATIONS FEATURES • Transmits at a distance of up to 230 ft. (70m) • One pair as a full functional module, no need for setting DIP switches • PoE (Power Over Ethernet), either TX or RX powered 12V@2.5A •... -
Page 5: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS TRANSMITTER 1. DC IN: Plug the 12V DC power supply into the unit. 2. IR OUT: IR Transmitter. 3. IR IN: IR Receiver. 4. HDMI IN: HDMI Input port. 5. HDMI Signal OUT: CAT5e/6/7 RJ-45 IEEE-568B 6. -
Page 6: Application Example
APPLICATION EXAMPLE EXAMPLE CAT5e/6/7... -
Page 7: Terms And Conditions Of Use
TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM Switch Tech, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
