Summary of Contents for Broadata Communications Link Bridge LBC-SPH8-1HB7-EIR

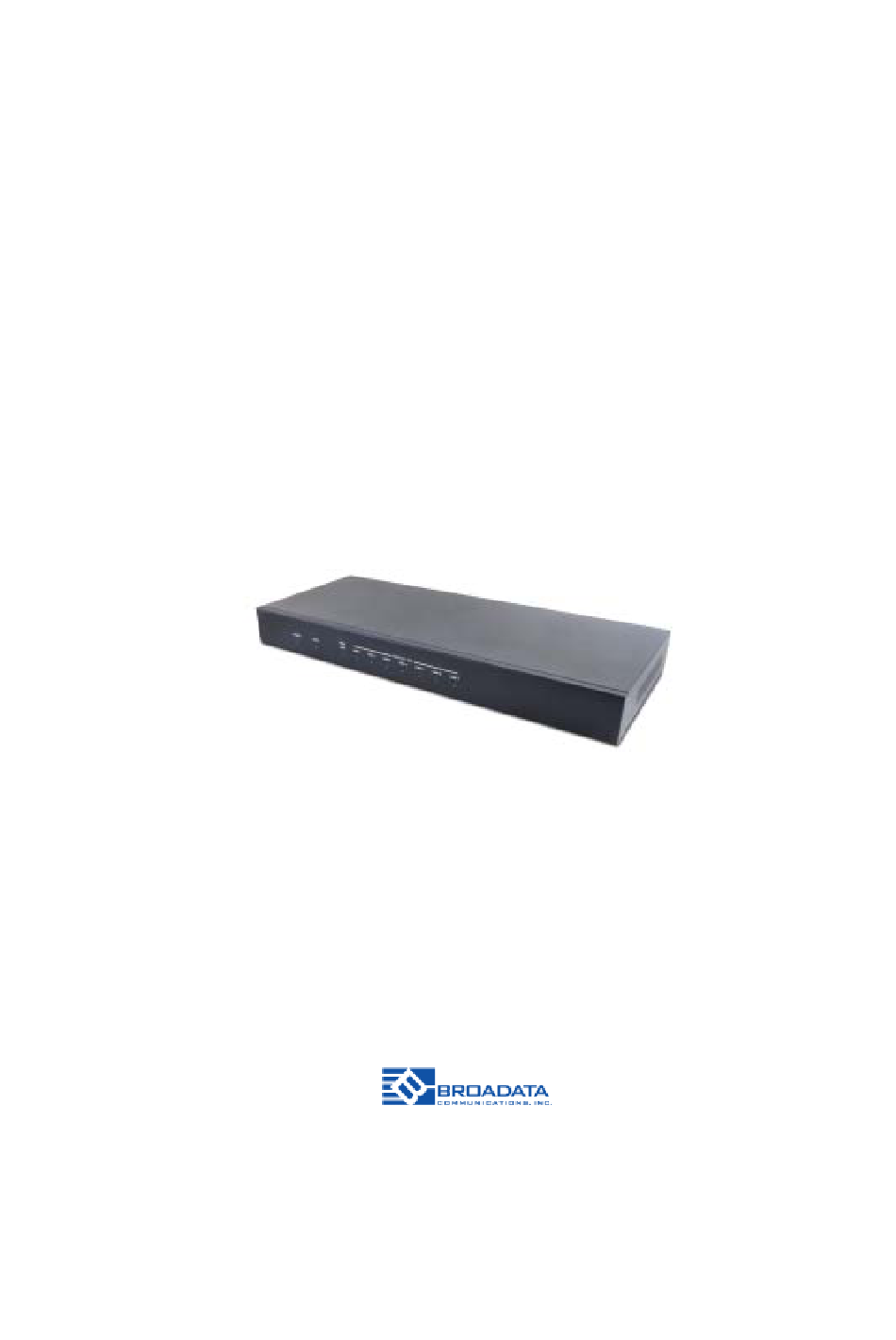

- Page 1 LBC-SPH8-1HB7-EIR RIDGE RANSMISSION YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROLS AND FUNCTIONS ....7 2.1 FRONT PANEL ..............7 2.2 REAR PANEL ..............8 3.0 CONNECTOR PIN ASSIGNMENT ......... 10 4.0 MAINTENANCE AND TROUBLESHOOTING ....11 4.1 MAINTENANCE .............. -
Page 4: Product Description
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 1.0 PRODUCT DESCRIPTION The HDMI over HDMI CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and Ethernet LAN connection to up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. - Page 5 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System Note: 1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification. 2. The PoH function is designed for powering compatible Receiver units only, non-PoH Receivers will need their own power supply. Receivers of another brand may not be compatible.
-
Page 6: Operation Controls And Functions
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. POWER LED: The LED will illuminate when connected to an active power supply. 2. SYNC LED: This LED will illuminate when the HDMI input is connected to a HDMI source and receiving a signal. -
Page 7: Rear Panel
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 2.2 Rear Panel 1. HDMI IN: Connect to HDMI equipped source equipment such as a DVD/ Blu-ray player or game console. 2. HDMI OUT: Connect to a HDMI display for local monitoring of the HDMI signal or cascade to another Splitter. - Page 8 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 7. EDID STD/TV: The default setting is TV, when in this mode, the unit will detect the EDID settings of the display device connected to the CAT- 5e/6/7 Output 1. If it detects a 4K×2K capable EDID setting it will transmit the signal in that format to the output port.
-
Page 9: Connector Pin Assignment
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 3.0 CONNECTOR PIN ASSIGNMENT 3.1 IR Pin Assignment Figure 3-1 IR Blaster and IR Extender Pin Assignment Broadata Technical Support, (800) 214-0222... -
Page 10: Maintenance And Troubleshooting
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 4.0 MAINTENANCE AND TROUBLESHOOTING 4.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBC-SPH8-1HB7-EIR units do not operate properly after installation, check for possible cable breaks, loose connections,... - Page 11 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System b. Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link.
-
Page 12: Specifications
LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 5.0 SPECIFICATIONS Input Port 1×HDMI, 1×IR IN, 1×LAN, 1×USB (Service only) Output Port 1×HDMI, 7×CAT5e/6/7, 1×IR OUT CAT5e/6/7 Output Cable Up to 100 Meters HDMI Supported 480i~1080p@50/60Hz, 1080p@24Hz, 4K×2K Supports Resolutions (3840×2160@30Hz/4096×2160@ 24/25Hz) &... -
Page 13: Service Procedure
The LBC-SPH8-1HB7-EIR System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 14: Limited Warranty
HDBaseT 7x Transmission System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... - Page 15 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System 8.0 APPENDIX A: CAT-5E/6/7 CABLE SPECIFICATIONS Broadata Technical Support, (800) 214-0222...
- Page 16 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System Broadata Technical Support, Sales@Broadatacom.com...
- Page 17 LBC-SPH8-1HB7-EIR User’s Manual Link Bridge HDBaseT 7x Transmission System Broadata Technical Support, (800) 214-0222...
- Page 18 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-SPH8-1HB7-EIR...
