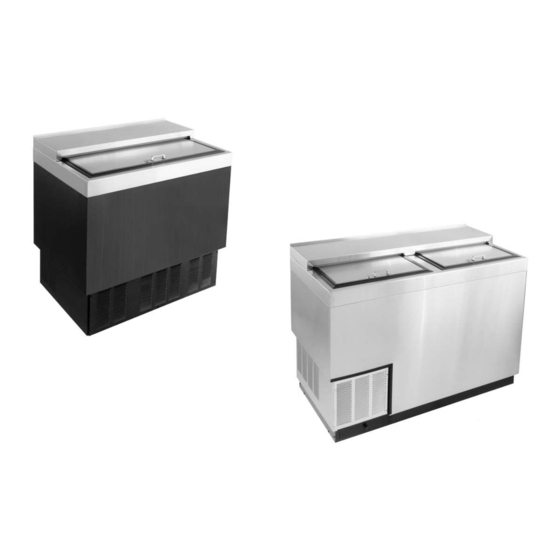

Glastender ST24 Operation Manual
Slide top coolers
Hide thumbs
Also See for ST24:
- Operation manual (13 pages) ,
- Operation manual (8 pages) ,
- Operation manual (8 pages)
Table of Contents
Advertisement
Operation Manual and Parts Directory
ST24, ST36, ST48, ST60, ST72
S
T
lide
op
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax 800.838.0888 / 989.752.4444 · www.glastender.com
Rev. 08-26-08
C
oolerS
ST36-B
ST96
and
ST48-SF
© 2007 Glastender, Inc.
Advertisement
Table of Contents
Related Manuals for Glastender ST24
Summary of Contents for Glastender ST24

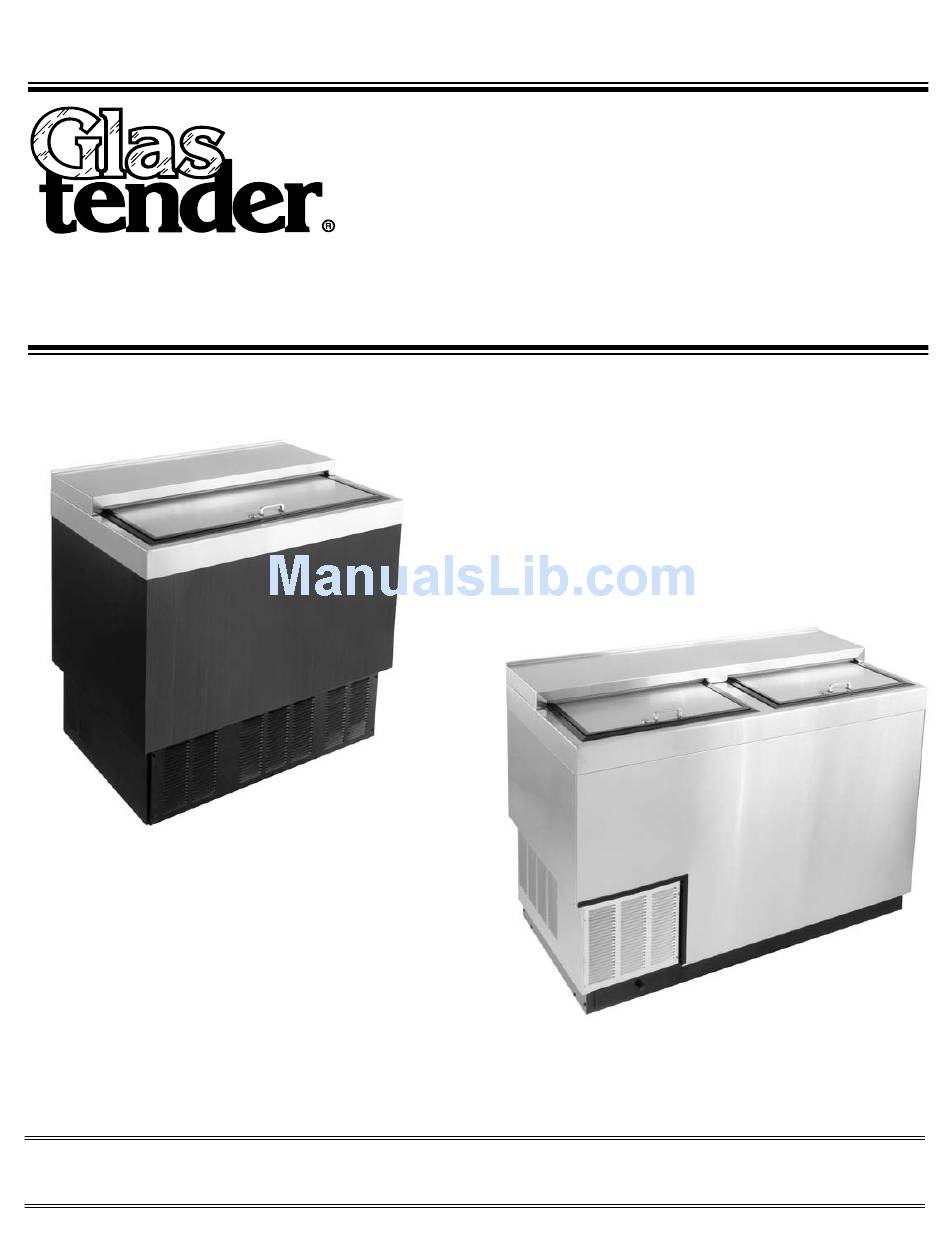

- Page 1 Operation Manual and Parts Directory ST24, ST36, ST48, ST60, ST72 lide oolerS Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 800.838.0888 / 989.752.4444 · www.glastender.com Rev. 08-26-08 ST36-B ST96 ST48-SF © 2007 Glastender, Inc.
-
Page 3: Table Of Contents
Shelving and related parts ... 9 Doors, tops and related parts ... 10 Refrigeration compartment covers ...11-12 220 Volt electrical parts ... 12 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com... -
Page 4: Terms And Conditions
A convenient credit application is available upon request. Visa and Mastercard are also accepted. LABOR: Glastender, Inc. warrants all products to be free of defects in material and workmanship. In established areas, a start-up and a 90- day labor warranty are included with glasswasher models GT-24 and GT-30. -
Page 5: Installation
20 minutes. During the defrost, the fan inside the cooler will remain on and the refrigera- tion system will turn off. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com... -
Page 6: Cleaning Instructions
72" 115V, 1Ph., 60 Hz., 8 Amp 96" 115V, 1Ph., 60 Hz., 8 Amp Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com nSTruCTionS leCTriCal and peCiFiCaTionS... -
Page 7: Wiring Diagrams
COMPRESSOR, 1/5 HP, R22 06001444 START RELAY 06001415 CONDENSER FAN MOTOR 09000336 CONDENSER FAN BLADE 07000155 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com ST24 odelS ST36... -
Page 8: St48, St60, St72 And St96
COMPRESSOR, 1/3 HP, R22 START RELAY CONDENSER FAN MOTOR CONDENSER FAN BLADE Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com ST48, ST60, ST72, odelS PART #... -
Page 9: Evaporator And Related Parts
08000117 GT-037423 08000118 GT-037424 10. 06001345 GT-031716 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com elaTed eSCripTion Bracket, evaporator fan motor Guard, evaporator fan Fan blade, evaporator, 5 blade... -
Page 10: Compressor And Condenser Related Parts
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com ondenSer elaTed arTS Rear view of ST36... - Page 11 Pan, condensate, ST24, 36 Pan, condensate, ST48, 60, 72, 96 Wicking material, consists of 11 4” pieces, ST24, 36 (prior to 1998) Wicking material, consists of 11 9-1/4” pieces, ST48, 72, 96 (prior to 1998) Wicking material, consists of 20 4” pieces, ST24, 36 (after 1998) Wicking material, consists of 30 9-1/4”...
-
Page 12: Shelving And Related Parts
1. STLK-1 Light kit, ST48, ST60 STLK-2 Light kit, ST72, ST96 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com helving and eSCripTion Bracket, 28” divider rack, ST48 (2 required) Bracket, 40", divider rack, ST60 (2 required) -
Page 13: Doors, Tops And Related Parts
GT-040307 07000238 GT-038437 07000239 GT-038438 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com elaTed eSCripTion Gasket, wiper, 24” top 21-1/2” long Gasket, wiper, 36” top 33-1/2” long Sliding door, locking, 20-3/16”, ST24... - Page 14 Right Side from rear Left Side from rear Models ST24, ST36 Front view Rear view Models ST48, ST60, ST72, and ST96 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com...
-
Page 15: Refrigeration Compartment Covers
Defrost timer, automatic, 220V, 50 cycle leCTriCal eSCripTion 06006121 Replacement powercord assembly, includes (06001572 06001314) Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com omparTmenT eSCripTion Cover, front, black clad vinyl, ST24...
