Professional LCDs

User Manual

Version 2.00

The use of diagrams and illustrations in the manual are for reference only. The actual product may be different.

Product design and specifications are subject to change without notice

Table of Contents

Need help?

Do you have a question about the DynaScan DS552LT4-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for DS2 DynaScan DS552LT4-1

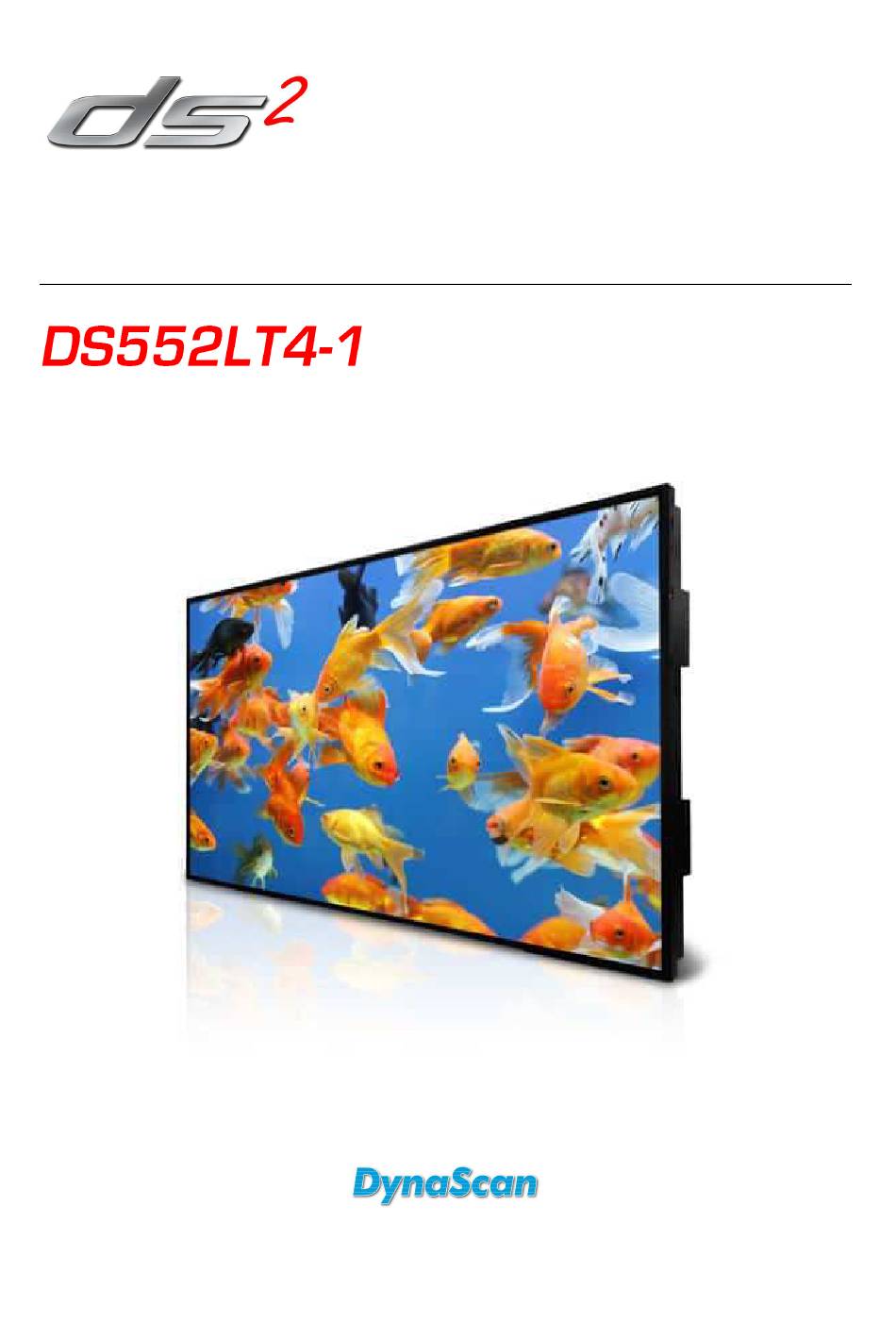

Page 1 Professional LCDs User Manual Version 2.00 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
Page 2: Table Of Contents
Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Safety Precautions ..........................5 Safety Precautions ..........................5 Important Safety Information ........................6 Getting Started ............................7 Contents ............................. 7 Installing and Replacing Remote Control Batteries ................7 Installation...............................
Page 3: Material Contents Declaration
Material Contents Declaration Hazardous Substances Hexavalent Polybrominated Polybromodiphenyl Part Name Lead Mercury Cadmium Chromium Biphenyls Ethers PBDE PCBA CHASSIS ACCESSORY PACKAGE “O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. “...
Page 4: Declaration Of Conformity
Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 5 This device complies with Directive 2014/53/EU issued by the Commission of the European Community. ( Device certification standard: EN 300 328 / EN 301 489-1/-17 / EN 55032 / EN 55024 / EN 60950 / EN 62311 ) - Frequency bands and Powers a.
Page 6: Safety Precautions
Safety Precautions CAUTION Do not install the display in a wet environment or place anything filled with liquid such as a vase or beverage on top of it. Do not install the display near flammable objects such as gasoline or other volatile liquids.
Page 7: Important Safety Information
Important Safety Information • Disassembling the LCD is strictly prohibited. Opening the cover may expose the user to electric shock or other hazards. Please contact DynaScan certified service professionals for all maintenance requirements. • Do not allow any liquid to enter the LCD. Also avoid placing the LCD close to water sources. •...
Page 8: Getting Started
Getting Started Contents Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. • DS552LT4-1 Professional LCD. • Quick Start Guide x1 pc.
Page 9: Installation
Installation The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation.
Page 10 DS552LT4-1 Unit: mm Orientation • When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. Portrait mode: Rotate the set clockwise 90° (mandatory) Installation Location •...
Page 11 ensure proper ventilation. • For installations with screens inset into the wall, refer to section: 錯誤! 找不到參照來源。 for cooling and ventilation considerations. Single display Video wall When hanging from a ceiling • Ensure that the ceiling is strong enough to support the LCD and it accessories. Earthquake, unexpected vibration and other external forces should be taken into consideration when evaluating the ceiling strength.
Page 12: Wall Mounting
Wall Mounting • A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. • Verify that the mounting location can support the weight of the LCD before installation. •...
Page 13: Connecting Multiple Displays For Video Wall Applications
Connecting Multiple Displays for Video Wall Applications To daisy chain multiple displays for a video wall application, connect a video source to the 1 display into the chain with the supplied DVI cable (or DP cable, HDMI cable) and RS-232 cable. Connect the DVI-OUT of the 1 display to the DVI-IN of the 2 display.
Page 14 Video Source or DP, HDMI (OUT) RS-232 (OUT) DVI (OUT) or DP, HDMI (IN) RS-232 (IN) DVI (IN) DISPLAY 1 DVI (OUT) RS-232 (OUT) RS-232 (IN) DVI (IN) DISPLAY 2 RS-232 (OUT) DVI (OUT) RS-232 (IN) DVI (IN) DISPLAY 3 DS552LT4-1 User Manual...
Page 15: Connector Positions
Connector Positions ○ ○ ○ ○ ○ ○ ○ AC (OUT) AC (IN) Power Switch USB port SD card RJ-45 RS-232 (IN) ○ ○ ○ ○ ⑫ ⑬ ⑭ DVI (IN) HDMI (IN) DP (IN) Sensor Thermal DVI (OUT) RS-232 (OUT) ⑮...
Page 16: Input / Output Terminals
Input / Output Terminals AC (OUT): AC outlet 110~220V up to 100 Watt. AC (IN): Connect the supplied power cord to the wall outlet. Power Switch: Press to switch the main power on/off. USB port: Support for USB flash drive storage, mouse and keyboard. SD card: Support for up to 32GB, FAT32/NTFS format is supported.
Page 17: Operating Instructions
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. Using the Remote Control When using the remote control, aim the remote at the IR receiver on the display.
Page 18 DS552LT4-1 DS552LT4-1 User Manual...
Page 19 Using the Remote Control (cont.) Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item.
Page 20: Using The Rear Panel Controls
Using the Rear Panel Controls ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection.
Page 21: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. ITEM 1 ITEM 2 DEFAULT DESCRIPTION Main HDMI...
Page 22 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Current Date YYYY:MM:DD Set the date. Set the clock. Current Time HH:MM:SS Note: The internal clock will continue to function when the power is turned off. Time Power Control Turn on / off automatic power schedule Timer function.
Page 23 ITEM 1 ITEM 2 DEFAULT DESCRIPTION To turn On / Off the auto brightness adjustment. Note: If the AUTO BRIGHTNESS is off, the screen brightness will remain at HIGH LEVEL brightness value. If the AUTO BRIGHTNESS is on (Auto), the display brightness adjusts according to the ambient Auto Brightness light.
Page 24 Enable/disable the remote control for Menu. Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function.
Page 25 ITEM 1 ITEM 2 DEFAULT DESCRIPTION It will enter into protection mode when the display internal temperature is over heat. 56°C = Brightness 50%. Over Heat 61°C = Brightness 25%. Information 3 Inactive Protection 66°C = Brightness 03%. When the temperature is decreased to exit the protection, the brightness will restore to 100% and Over Heat Protection is disabled.
Page 26: Specifications
Specifications MODEL DS552LT4-1 LCD Panel Size 54.64 inches Native Resolution 1920 x 1080 Brightness 3500 cd/m² (Typ.) Contrast Ratio 3,000:1 PANEL Response Time 9 ms (Typ.) Viewing Angle 178°/ 178° Life Time 50,000 hrs (Typ.) Panel Surface AR, 2H Power Supply Internal Rated Voltage 100 ~ 240V, 50 / 60Hz...
Page 27: Input Mode
Input Mode Active Resolution Refresh Rate Pixel Rate Aspect Ratio H Pixels V Lines 60 Hz 25.175 MHz 59.94 Hz 27 MHz 60 Hz 40 MHz 1024 60 Hz 65 MHz 1280 60 Hz 74.25 MHz 16:9 1280 60 Hz 79.5 MHz 1360 60 Hz...
Page 28: Pin Assignments
Pin Assignments Digital RGB Input (DVI-D): DVI PIN ASSIGNMENT OF DVI CONNECTOR RX2- RX1- RX0- RX2+ RX1+ RX0+ Shield (RX2 / RX4) Shield (RX1 / RX3) Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- RS-232 Input...
Page 29: Troubleshooting
Troubleshooting ISSUE RECOMMENDED SOLUTION Check whether the cable is completely plugged in. Check whether the main switch is in the ON position, and the power cord is completely plugged in. No image is displayed. Check whether the image source’s resolution is set as the supported format (refer to section “Input Mode”, p.26).
Page 30: About Dsm365
About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365 • Press the MENU button on either the rear panel control or remote control to show the OSD. •...
