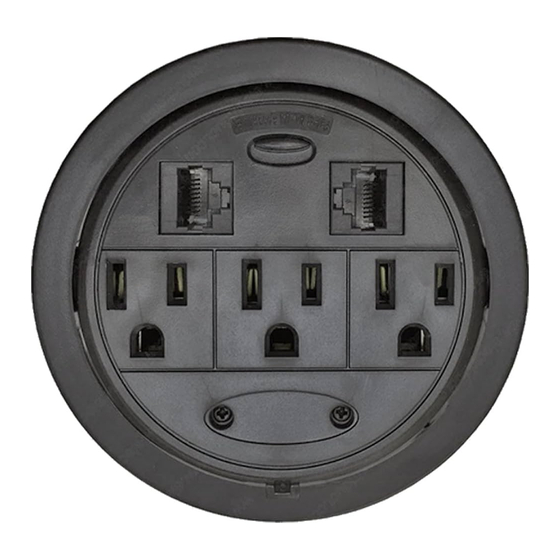

Sunway PowerTap GMPT-3B Assembly Instructions

TOOLS NEEDED

Adjustable hole saw bit or Jig Saw (Sabre Saw).
NOTE: ALWAYS WEAR SAFETY GLASSES
WHEN DRILLING OR CUTTING
1
Determine the grommet placement on your
desk or table top. Use the attached template as your
guide to set hole saw diameter, or as a pattern for
the Jig Saw. Tape the pattern to top.
2
Drill a hole in the center large enough for the
saw blade to start cutting. Closely follow the circle
perimeter with the blade.
T H E H I D D E N P O W E R C E N T E R
ASSEMBLY INSTRUCTIONS
3
Feed the cables through the hole first and seat
grommet in place.
If hole is a little loose for grommet, you can use a
hot melt glue to fix in place.
4

OPERATION

Plug the power cord into a wall outlet.
Using a standard Ethernet Patch Cable, plug one end
into wall Ethernet Wall Jack or Router and the other
end into one of the Short Pigtails of the PowerTap.
Repeat step for second Ethernet Port.
Slide tab back to enable pivoting the PowerTap.
When rotation is complete it will lock in place.

Product Warranty

: Sunway warrants its product
for period of one year from date of purchase. We will
repair or replace any product found to be defective in
material or workmanship during the warranty period.
