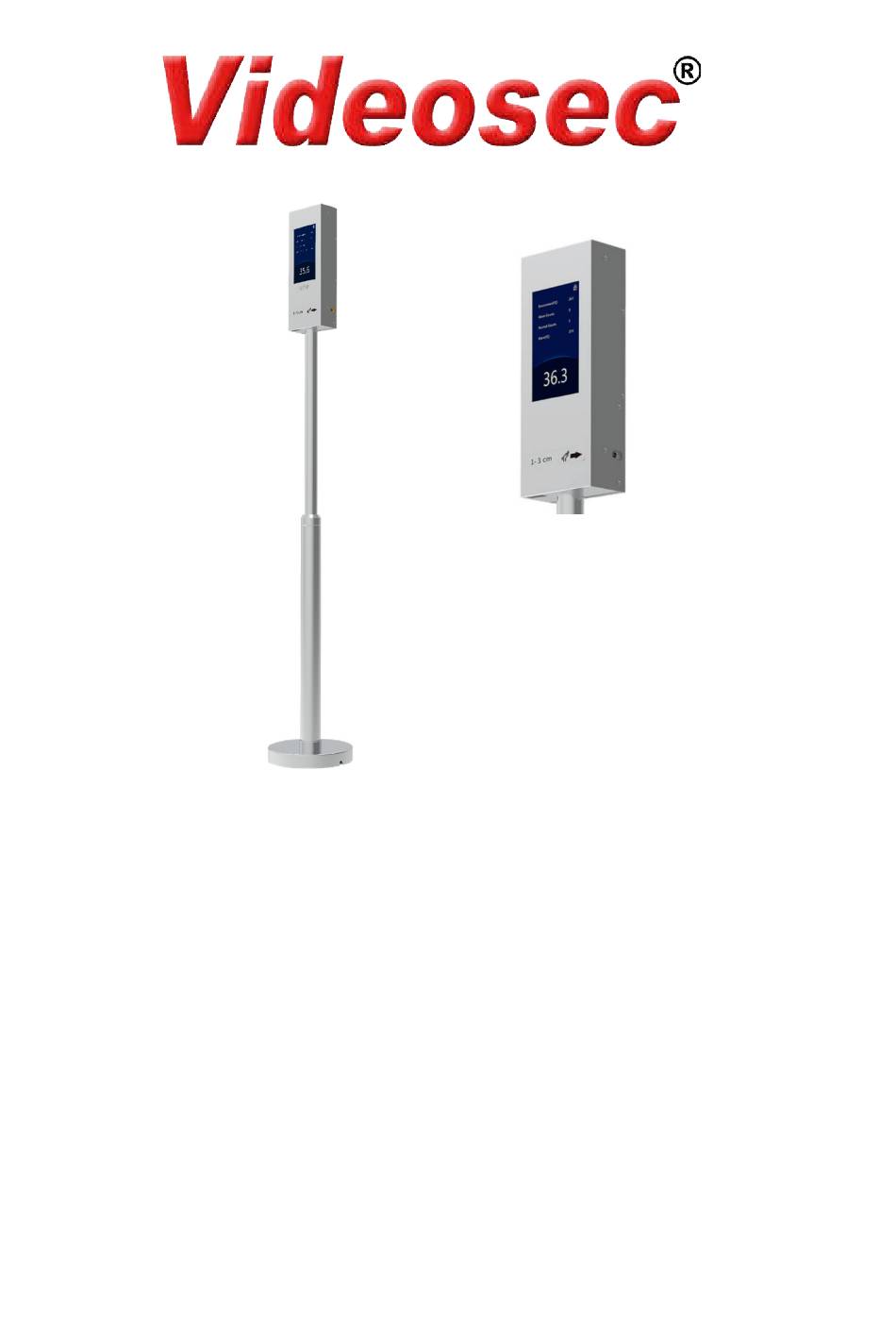

- Page 1 OTC-513 Standing Pole -mounted Measuring Instrument User Manual Document Version: V1.00...
- Page 2 Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. Disclaimer No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior written consent from Uniview.
- Page 3 Subject to uncertain factors such as the physical environment, actual values of some data may differ from the reference values described here. In case of any question or dispute, the right of final interpretation resides with Uniview. Follow this manual when using the product. Professional guidance is recommended. ...
-
Page 4: Table Of Contents
Contents 1 Introduction · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 2 Local Operations ·... - Page 5 4 FAQs · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 21...
-
Page 6: Introduction
Introduction Intelligent standing pole-mounted Measuring Instrument is a non-contact thermometer that measures body temperature on the wrist. It supports local and web operations. This manual describes how to operating a device locally or through the Web interface. Before you begin, please follow the quick guide to complete the installation and power up. Local Operations Main Interface 2.1.1 Not Measuring Temperature... -
Page 7: Screensaver Mode
Normal temperature Abnormal temperature Screensaver Mode It will enter the screensaver mode when there is no personnel temperature measurement or no operation for more than 30S (default value). If someone measures the temperature or touches the screen, the system will exit the screensaver mode. -
Page 8: Activation Config
Activation Config Hold down the main interface of the device for a long period of time. In the displayed password input interface, enter the configured activation password to go to the Activation Config interface. If you forget the password, contact the local deale to seek help. NOTE! The default password is admin. -
Page 9: Network Setting
2.3.2 Network Setting On the Network Setting interface, you can modify the device IP address and other communication parameters so that the device can communicate with external devices. (1) On the Activation Config interface, tap to go to the Network Setting interface. (2) Set network parameters by referring to the table below. -
Page 10: Change Password
Parameter Parameter Description and Configuration Enter the IP address of the device. IP Address The IP address of the device must be unique across the network. Subnet Mask Enter the subnet mask of the device. Default Gateway Enter the default gateway of the device. (3) Tap Save to complete network setting. -
Page 11: Temperature Setting
2.3.4 Temperature Setting Configure temperature measurement range and temperature alarm threshold. (1) Click in Activation Config interface. (2) Set parameters by referring to the table below. Parameter Description Temperature Unit You can choose between degrees Celsius and degrees Fahrenheit. Valid range: 30-45. Default range:35-42. Temperature Range Configure the range based on actual application scenes. -
Page 12: Web Operations
NOTE! If the restore all factory default settings feature is not enabled, the restore factory settings will retain the network and user settings. Web Operations Login The default static IP address of the device is 192.168.1.13. The device also supports simple login using the IP address of 192.168.0.13 and subnet mask of 255.255.255.0. - Page 13 The table below describes parameters and plug-ins on the interface and their configuration. Parameter/Plug-in Description Configuration Username and password for logging in to the Web interface. At initial login: Enter the username and The default username is admin and the default password is admin. Username/Password password based on the actual conditions.
-
Page 14: Network Configuration
NOTE! The default password is used for your first login. To ensure account security, please change the password after your first login. You are recommended to set a strong password (no less than eight characters). The device protects itself from illegal access by limiting the number of failed login attempts. If login fails six times ... - Page 15 Parameter Description and Configuration Network Isolation Keep the default value Off. It cannot be configured. Enter the IP address of the device. IP Address The IP address of the device must be unique across the network and cannot begin with 127. Subnet Mask Enter the subnet mask of the device.
-
Page 16: Dns
10M Half Duplex 10M Full Duplex 10M Auto-Negotiation 100M Half Duplex 100M Full Duplex 100M Auto-Negotiation Auto-Negotiation (5) Click Save to complete the configuration. 3.2.2 DNS (1) Click Setup>Network>DNS. (2) Set Preferred and Alternate DNS server addresses. (3) Click Save. 3.2.3 Port Setting 1. -
Page 17: Ddns
(2) Enable Port Mapping and select mapping type. If Manual is selected, then external ports must be configured (external IP is obtained automatically by the camera). If the configured port is occupied, then the Status will show Inactive. (3) Click Save. 3.2.4 DDNS (1) Click Setup>Network>DDNS. -
Page 18: Network Security
Common user: referred to as “user” in this manual. User only has permission to play live and recorded video. Up to 32common users are allowed in the system. You can add a user on the user management interface (under Setup>Security> User). After the user is added successfully, you can change the password by entering the new password or delete the user by clearing the username. -
Page 19: Registration Info
(2) Select On to enable IP address filtering. (3) Select a filtering mode, and then add IP address(es). (4) Click Save. NOTE! If Filtering Mode is set to Whitelist, then only the added IP address(es) are allowed to access the device. If ... -
Page 20: Time Setting
(2) Click Refresh to update the device to the latest state. On the refreshed interface, you can view status information about the current device. 2. External Device External device interface can view related information of temperature measurement module. Choose Setup > System > Basic Info and click the External Device tab. NOTE! Only if Fireware Version and Hardware Version information are consistent, the temperature measurement function can be used normally. - Page 21 (2) Set parameters by referring to the table below. Parameter Description and Configuration The options are as follows: Sync with System Configuration: The time is synchronized with the initially configured time of the system. Sync with NTP Server: The time is synchronized with the time of the NTP server. ...
-
Page 22: Advanced Setting
Parameter Description and Configuration The options are as follows: The following parameters are configurable only when DST is set to On. Set the parameter based on actual conditions. Start Time Set the parameter based on actual conditions. End Time The options are as follows: ... -
Page 23: Ports & Devices
Value range: [30–45]; default value: 37.3 The options are On and Off. Set the parameter based on the actual conditions. The default value is Off. Temperature After turning on the temperature alert, when body temperature is Alert within the range of temperature alert threshold and temperature alarm threshold, high temperature alarm will be given to remind people to re- detect. -
Page 24: Personalization
(2) Set whether to mute the audio. If no, set the play volume. (3) Click Save to complete the audio configuration. 3.4.5 Personalization The device supports Screensaver Mode (pictures only). The configuration is as follows: (1) Choose Setup > System > Personalization and click the Screensaver Mode tab. (2) Set the screensaver mode by referring to the table below. -
Page 25: Maintenance
3.4.6 Maintenance 1. Software Upgrade (1) Click Setup > System > Maintenance. (2) Under Software Upgrade, click Browse and select the correct upgrade file. (3) Click Upgrade and then confirm to start. The device will restart automatically after the upgrade is completed. - Page 26 (2) To import configurations that you have backed up, click Browse next to the Import button and select the configurations you want to import, and then click Import. The result will be displayed. (3) To export current system configurations, click Browse (next to the Exporting field), set the destination and then click Export.
- Page 27 Answer: Perform the following steps to search for the device IP address: Log in to Uniview website https://www.uniview.com. On the home page, move the cursor over Support. Click Maintenance Tools. Locate the EZTools auxiliary tool software and download the software and user manual to the local device. Search for the device IP address by referring to the Device Management Software User Manual.
