Nexxia 823206E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

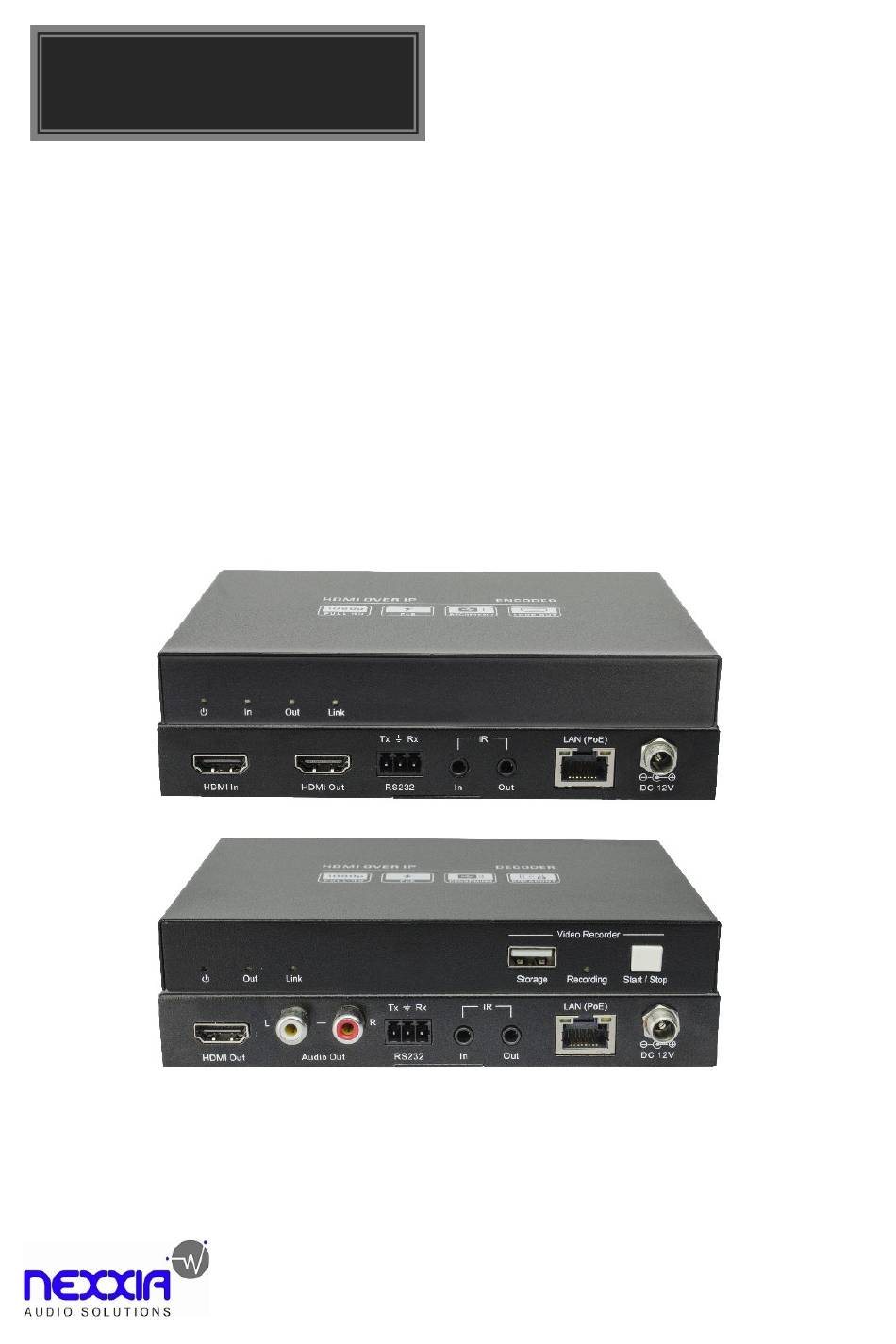

User Manual
823206E/ 823206D
1080p IP Streaming Encoder/Decoder
All Rights Reserved
Version: 823206E/ 823206D_2020V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 823206E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nexxia 823206E

  • Page 1 User Manual 823206E/ 823206D 1080p IP Streaming Encoder/Decoder All Rights Reserved Version: 823206E/ 823206D_2020V1.0...

  • Page 2: Table Of Contents

    1.1 Features ......................1 1.2 Package List ...................... 1 2. Specification ....................... 2 3. Panel Description ......................3 3.1 823206E Encoder ....................3 3.2 823206D Decoder ..................... 4 4. System Connection ..................... 5 4.1 Connection Type ....................5 4.2 System Diagram ....................5 4.3 Hardware Setup ....................
  • Page 3 5.8.2.5. Firmware Upgrade ..............32 5.9 System Management Tab ................33 5.9.1 Security Settings ..................33 5.9.2 System Logs ..................34 5.9.3 Group Management ................35 5.10 Routing Table ....................36 6. Customer Service ..................... 38 Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 4: Product Introduction

    Supports RTSP, RTP, HTTPFLV, UDP, TCP Protocol.  Supports Unicast and Multicast.  1.2 Package List 823206E 823206D 1x 823206E Encoder (TX) 1x 823206D Decoder (RX)   2x Mounting Ears with 2 Screws 2x Mounting Ears with 2 Screws ...

  • Page 5: Specification

    Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported. Power Consumption Encoder:4W (Max); Decoder:3.5W (Max) Operation Temperature -5℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10%-90% Dimension (W*H*D) 152.0mm x 21.0mm x 100.0mm Net Weight Encoder: 340; Decoder: 345g Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 6: Panel Description

    1080p IP Streaming Encoder/Decoder 3. Panel Description 3.1 823206E Encoder ① POWER LED: The LED illuminates green when power is applied. ② In LED: The LED illuminates blue when the encoder detects HDMI source input. ③ Out LED: The LED illuminates blue when the HDMI Out port is connected to display device.

  • Page 7: 823206D Decoder

    ⑪ IR OUT: 3.5mm jack to connect an IR emitter for IR routing control. ⑫ LAN (PoE): RJ45 port to connect directly to the encoder or a network switch using a CATx cable. ⑬ DC 12V: DC port for AC power adapter connection. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 8: System Connection

    The IP streaming system allows for on-the-fly upgrading and a virtually unlimited number of I/O ports. 4.2 System Diagram The following diagram illustrates typical input and output connections that can be utilized with the IP streaming encoder/decoder: IP Streaming System Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 9: Hardware Setup

    Connect an Ethernet cable (Cat-6a recommended) from the LAN port each TX and RX unit to any available LAN port. Connect the control PC to the LAN port of any 823206E / 823206D device or to a Cat-x port of the switch (except the management/console port of the switch).

  • Page 10: Operation Of Ip Streaming Management

    Before proceeding ensure that the IP addresses of PC and all units are on the same local area network (LAN). After install the control software, start the application by double clicking on 823206.exe file. Username: admin Password: admin Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 11 “Network Setting” interface. The “IP Address” of the device is also shown in the tile. If a source device is connected to the video port of the TX, a picture illustrating a source device will appear within the respective tile along with information about the Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 12 Hostname Setting Menu Streaming/Stopped Status Video Resolution Color Space IP Address More Information TX device tile info Hostname Setting Menu Streaming/Stopped Status Video Resolution Video Recording Color Space IP Address More Information RX device tile info Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 13: General Setting

    Update Time All: Click “Update Time” to set the time of all connected Encoders  and Decoders to synchronize with computer time. Enable Preview: Enable video preview function, the Encoder/Decoder title on the  “Video Switching” will display the video image as shown below: Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 14 1080p IP Streaming Encoder/Decoder Preview Interval Seconds: Set the refresh time of video preview.  Log Setting: Log Save Days: Set the number of days to save the software log.  Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 15 Video Switching tab, the audio will automatically follow the video switch. Note that it is invalid that switch audio separately at Audio Switching tab. Audio Codec: Set the audio coding standard to AAC or PCM for all encoders.  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 16: Video Routing Tab

    Ensure that the network switch has been properly configured.  Confirm that the display can support the input source resolution.  Verify that the HDMI cable being used is of good quality. This is particularly  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 17: Video Recording

    The storage device format needs to support exFAT, FAT32 or NTFS.  Click the menu icon of the respective RX tile, and then click "Video File  Management" can enter the interface to manage video recording file. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 18: Sending Single Source To All Rx Devices

    To rename a preset, delete a stored preset or save the current video switching setting, recall a saved preset by selecting “Preset #1~9” and click the gear icon to select the desired option: “Rename”, “Clear Preset”, “Save Preset”, “Recall Preset”. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 19: Video Preview Tab

    16 screens to display video. All encoders and decoders show on the device list on the right sidebar block. Drag and drop the desired encoder/decoder unit over the screen block it is to be displayed. Full screen. Shrink screen. Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 20 “Open Network Streaming”. Click “Network” and enter a network URL of desired encode, and then click “Play”. Network URL example: rtsp://192.168.0.106:8554/live/stream=0 The “192.168.0.106” of network URL can be modified according the IP address of different encoder. Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 21 Note: When the VLC media player plays a video, if there is no sound, the audio encoding standard of the encoder can be set to AAC at “Audio Setting” tab. Please refer to the 5.8.2.1. Device Setting. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 22: Audio Routing Tab

    Drag and drop the TX tile onto the RX tile to which it is attached. c) TX and RX are now joined together. d) Repeat above steps if additional decoders are to be joined to the same TX. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 23: Rs232 Routing Tab

    To create a bi-directional RS232 path on a pair of Encoder (TX) and Decoder (RX), two separate pairings are required. Repeat the step above, but in reverse (drop TX on RX) to create the second pairing. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 24: Assign Encoder To All Decoders

    (TX)" and "Decoders (RX)". Each device discovered on the network is listed in both groups, because each can both send and receive IR data. Select the "IR Routing" tab in the IP Streaming Management interface. Verify, which Encoders and Decoders are joined together. Click on the device tile Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 25: Assign Encoder To All Decoders

    5.7.2 Sending IR Data from IP Streaming Management to a Third-party Device 1) Click menu icon of the respective encoder or decoder tile. 2) Select "Device Options". 3) Select "Send/Receive IR". 4) A dialog box opens. 5) Enter the IR string you want to send. Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 26 0000 0067 0000 0015 0060 0018 0030 0018 0018 0018 0030 0018 0018 0018 0030 0018 0018 0018 0018 0018 0018 0018 0030 0018 0018 0018 0030 0018 0030 0018 0018 0018 0030 0018 0018 0018 0018 0018 0018 0018 0030 0018 0030 0018 0030 01FE. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 27: Global Command Options And Settings

     Show Info OSD: Show the device information of decoder on display.  Hide Info OSD: Hide the device information of decoder on display.  Video File Management: Manage and download the video recording files.  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 28: Video Format Setting

    To set the video format of decoder, click the menu icon of the respective RX tile and select "Video Formats". The following resolution, color space, Deep Color can be selected: 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz (Default), 720p@50Hz, 720p@60Hz, Video Resolution 1080I@50Hz, 1080I@60Hz Color Space RGB, YCbCr 4:4:4 Deep Color 10Bit, 12Bit Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 29: Device Setting

    “Setting” to enter the below device setting interface. Analog Audio Setting: Select “Enable/Disable” to turn on/off the analog audio output of decoder. Network Setting: Use this tab to modify the device's host name and configure the IP address. Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 30 External Storage Setting: Use this tab to set the video recording type to “Stop recording when storage is full” or “Overwritten recording when storage is full”. Click “Formatting” to format the video storage device. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 31: Factory Reset

    Select upgrade type and click “Browse” to add the update file, and then click “Submit” to start the firmware upgrade. 5.8.1.6. Video File Management Click the menu icon of the respective RX tile, and then click "Video File Management" to enter the below interface to manage video recording files. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 32: Encoder (Tx) Settings Options

    Firmware Upgrade: Update firmware version of encoder.  Show Info OSD: Show the device information of encoder on display.  Hide Info OSD: Hide the device information of encoder on display.  Video Formats: Set the video format of the encoder.  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 33: Device Setting

    Use this tab to modify the device's host name and configure the IP address. To rename a device, enter a name (e. g. “823206E-1”) into the "Host Name" edit box. Press the "Save" button to save the new host name. The host name is persistent and kept until the device is forced back to factory defaults.

  • Page 34: Video Format Setting

    To set the video format of encoder, click the menu icon of the respective TX tile and select "Video Formats". The following resolution, color space, Deep Color can be selected: 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz (Default), 720p@50Hz, 720p@60Hz, Video Resolution 1080I@50Hz, 1080I@60Hz Color Space RGB, YCbCr 4:4:4 Deep Color 10Bit, 12Bit Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 35: Factory Reset

    Click the menu icon of the respective TX tile and click "Device Options", then click “Firmware Upgrade” to enter the below interface. Select upgrade type and click “Browse” to add the update file, and then click “Submit” to start the firmware upgrade. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 36: System Management Tab

    Click “New” to add new user account and set its access permission.  Select one account on the list, and then click “Change” to reset password.  Select one account on the list, and then click “Delete” to delete the selected user.  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 37: System Logs

    Select the “System Logs” tab in the IP Streaming Management interface to enter the section for inquiring the system logs. Select system log file, and then click “Save To” to save the log file, or click “Clear”  to delete the selected log file. Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 38: Group Management

    Click “+” to add new group.  Select one group on the list, and then click “-” to delete the group.  Select one group on the list, and then click “Edit” to set the group.  Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 39: Routing Table

    1080p IP Streaming Encoder/Decoder 5.10 Routing Table The routing table allows to gather info about the video, HDMI audio, analog audio and RS232 routing status. Video Routing Table: Audio Routing Table: Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 40 1080p IP Streaming Encoder/Decoder RS232 Routing Table: IR Routing Table: Nexxia Audio Solutions www.nexxia.co.uk...

  • Page 41: Customer Service

    Remarks: For any questions or problems, please contact sales@nexxia.co.uk. Nexxia Audio Solutions www.nexxia.co.uk...
  • Page 44 A brand of Comtec Cable Accessories Ltd Tel: 01480 415415 Email: sales@nexxia.co.uk Website: www.nexxia.co.uk...
