Simplicity SYFF123C1WL Owner's Manual page 6

Installation Instructions
DOOR REVERSAL
INSTRUCTIONS
10) Remove the left door stop and screw for the freezer
door from the accessory bag and attach it to the handle (see
Figure 3 on following page) Note: The left door and the right
door stop of the freezer door are different.
11) Replace the parts for the bottom hinge as shown
(see Bottom Hinge graphic Figure 6 on following page).
Tighten screws and replace the refrigerator door.

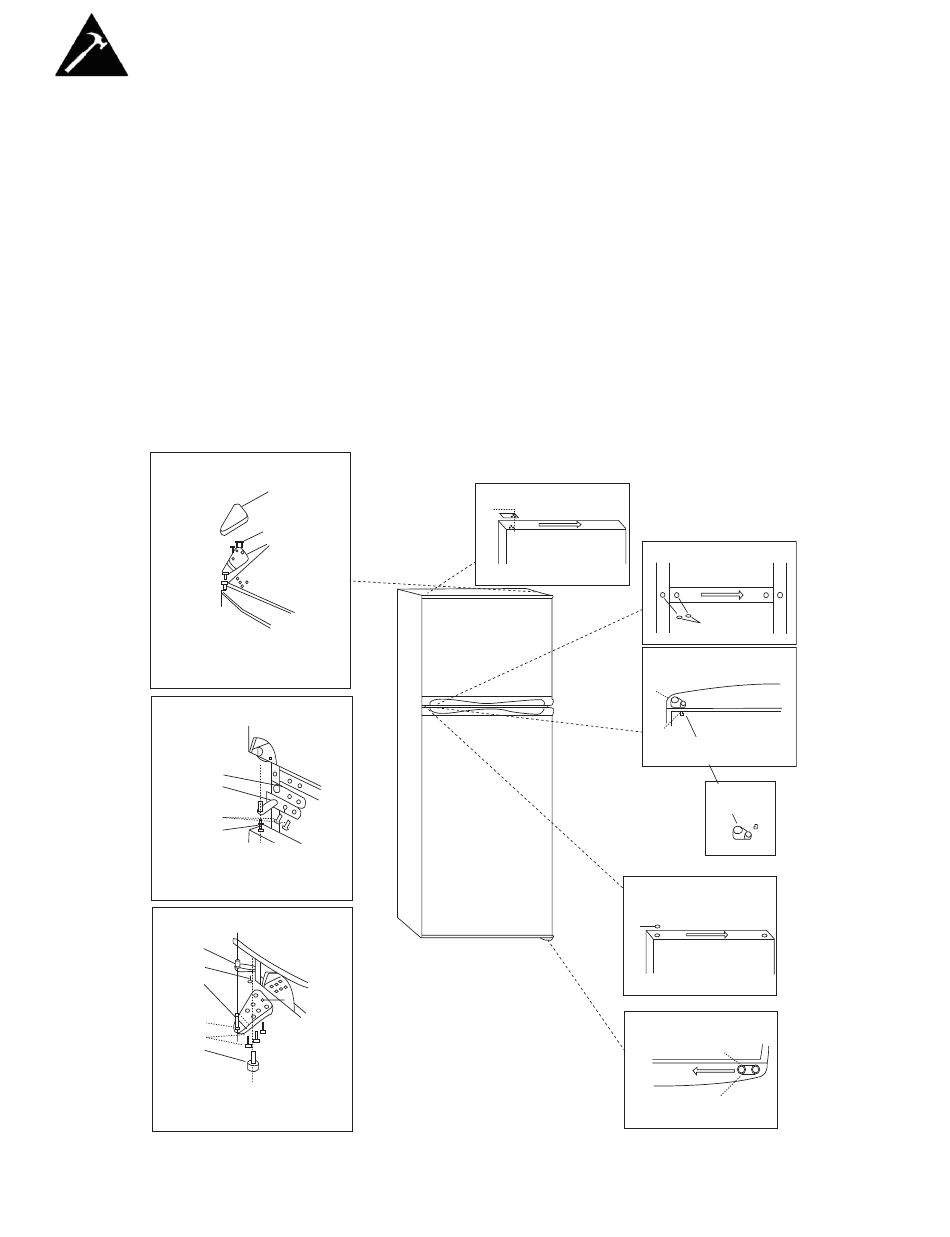

12) Assemble the parts for the center hinge as shown and
tighten all screws (see Center Hinge graphic Figure 7 on
following page) and replace the freezer door.
13) Assemble the parts for the top hinge (see Top Hinge
graphic Figure 8). Do not tighten screws completely.
Top Hinge
1. Top hinge Cover
2. Top Hinge Spindle
3. Top Hinge
Center Hinge
1
2
3
4
1.Center Hinge Spacer
2.Center Hinge
3.Screws
4.Bush
Bottom Hinge
1
2
3
4
5
6
1
2
3
1.Door Stop
2.Door Stop Screw
3.Door Stop Pole
4.Bottom Hinge
5.Bottom Hinge Screws
6.Adjustable Foot
14) Line up the doors so that the bottom of the freezer door
aligns evenly with the top of the refrigerator door. Tighten
all screws.
15) Check all holes to make sure that hole plugs and screws
are in place.
16) Plug in refrigerator or reconnect power, reset the controls
(See "Operation" section) and return all removable door parts
and food to doors.
1
1.Cover Of Upper Hinge Hole
1
1
1
1.Door Hinge Hole Plug
1.Door Stop
2.Door Stop Screw
4
2
1
1.Hole Plugs
3
2
1.Left Door Stop
2.Door Stop Screw
Accessory
Bag
4
5
1
2
