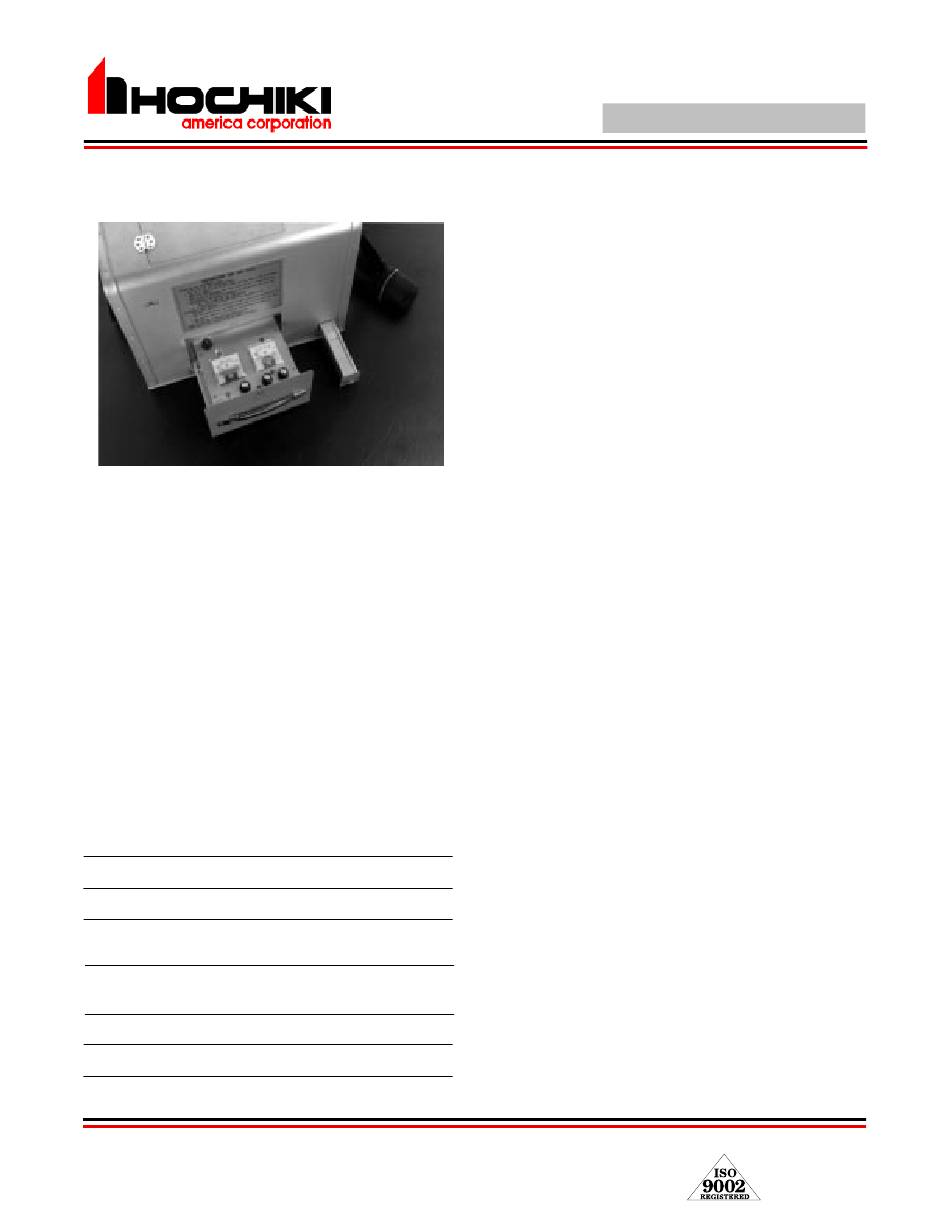

TSA-B110 SMOKE DETECTOR SENSITIVITY TESTER

STANDARD FEATURES

•
Tests the sensitivity of Hochiki's previous model
photoelectric and ionization smoke detectors.
•
Lightweight and portable for easy use in the field.
•
Obscuration/sensitivity testing similar to that of a
UL 268 Smoke Box.
•
Voltage Adjustment Knob easily changes tester
voltage to the rated voltage of the detector.
•
Indicator lamp automatically lights at completion
of testing.

SPECIFICATIONS

Rated Voltage 120 V AC, 50/60 Hz
Source Voltage 108V - 132V AC
Smoke Generating
Material SM-101-P Punk Stick
Operating Temperature
Range 50°F to 86°F
Dimensions 15.74" x 11.02" x 7.87"
Weight 13 Lbs.
Specifications subject to change without notice.
Hochiki America Corporation
7051 Village Drive, Suite 100 • Buena Park, CA 90621-2268
Phone: 714/522-2246 • Fax: 714/522-2268
Technical Support: 800/845-6692 or technicalsupport@hochiki.com

DESCRIPTION

The Hochiki America TSA-B110 Smoke Detector Sen-
sitivity Tester is designed for efficient and accurate test-
ing of the sensitivity of smoke detectors. For ease of
use in field applications the tester is easy to transport
and compact. Two densitometer circuits allow the TSA-
B110 Smoke Detector Sensitivity Tester to test both
ionization and photoelectric smoke detectors.
The TSA-B110 Smoke Detector Sensitivity Tester is a
sensitive piece of electronic equipment. The unit must
be used in a temperature range of 50°F to 86°F. Sudden
jarring or dropping of the TSA-B110 may damage the
unit.
taken.

OPERATION

1. Pull out the measuring unit drawer to expose the
meters and AC plug connector.
2. Remove the AC cord. Connect one end to the AC
plug connector and the other end to a 120VAC
electrical outlet.
3. Turn the AC source switch on. The circulating fan
starts.
4. Allow five minutes for warm-up to ensure stability
of the testing circuits.
5. Open the top cover and locate the wire leads and
clip.
6. If you are using a detector base, connect the wire
leads to this base and mount the base to the
wooden installation plate provided.
Terminal Markings: Source cable (not used)
Configuring the TSA-B110
7. Use the photo/ion change-over switch to
choose the type of detector (ION or PHOTO) which
is to be tested.
8. Use the voltage adjustment knob to adjust the
voltage to agree with the rated voltage of the detec-
tor being tested (for SLK-12 use 17.0 VDC).
9. Use the densitometer "0" adjustment knob to
set the pointer to zero (0).
firealarmresources.com
Fike Part Number 69-016
Operation will be affected if proper care is not
Signal line (+)
Common line (-)
Continued on back.
08/2001
