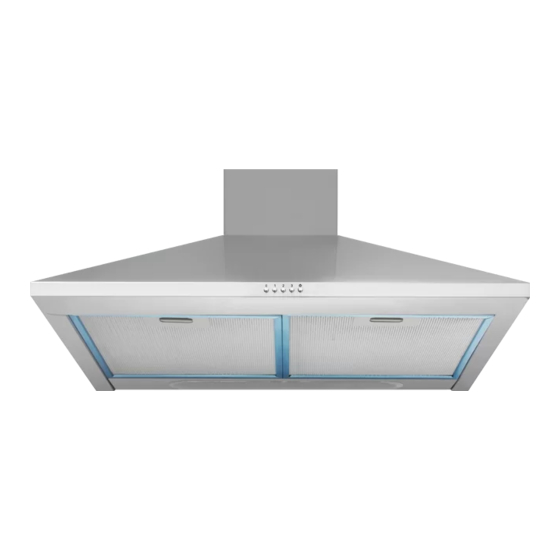

- Page 1 600mm / 900mm Chimney Cooker Hood Instruction Manual U600SC / U900SC...
-
Page 2: Table Of Contents
Introduction Dear Customer Thank you for choosing this quality, Univa Chimney Cooker Hood. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. -
Page 3: Safety Warnings
SAFETY AND WARNINGS To reduce the risk of fire, electric shock or injury when using your appliance, follow basic precautions, including the following: Intended for indoor and domestic use only! Adequate ventilation of the room is required when the cooker hood is used at the same time as appliances burning gas or other fuels. - Page 4 14. WARNING: The appliance must be switched off before replacing the lamp to avoid the possibility of electric shock. 15. WARNING: Do not allow anyone other than qualified service personnel to carry out maintenance or repairs as this will void the warranty. 16.
-
Page 5: Unpacking
UNPACKING Know your product (Fig.3 Filter assembly Air duct assembly Main body assembly Outside chimney Inner chimney Also included: Damper flap • Chimney fixed bolster • Drill hole stencil • Important! Check voltage and frequency on the rating plate located on the inside of the hood (Fig.1) It is recommended that after installation, the bottom of the hood should be no less than 550mm and no... -
Page 6: Installation
INSTALLATION Mounting the extractor Important! When cutting or drilling into the wall or ceiling, do not damage electrical wiring or other hidden utilities. Define the installation location on the wall in accordance with Fig.4 Drill four ø8 holes on the wall Fix four sets of expanding plugs and screws aiming to the four ø8 holes (Fig.5) Important! Ensure the outside dimension of the screws is 10mm... - Page 7 Screw down the four screws, start with the upper 2 screws followed by the remaining 2 screws Connect the hose with the air duct (Fig.8) Vertical is the most common (Fig.9). Horizontal (Fig.10) If the kitchen has a socket above the If the kitchen has an attic space cupboards, run the duct up into the above, the ducting may be run up...
- Page 8 Position the outer chimney on the windowsill (Fig.11), attach it to the air chamber with a Phillips head screwdriver. According to the dimension of the chimney fixed bolster, ensure the position of the 2 chimneys are aligned 2 People are required to install the chimney hood Fig.13 Fig.14 Install the chimney fixed...
-
Page 9: Operation
OPERATION For best performance, switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A – Power off Button B - Speed level buttons C - Light button To switch the extractor light On or Off Press button “C”... -
Page 10: Cleaning & Maintenance
CLEANING AND MAINTENANCE Replacing the lamps Replacing lamps The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting with a duration of up to 10 times as the traditional lamps and allows a saving of 90% electrical energy. In case of malfunction of the lamps, contact an approved service agent. -
Page 11: Warranty
Univa authorized service Agent or consultant. The liability of Univa shall be limited to the repair or replacement by a Univa authorized service dealer in its sole discretion of the defective parts of the appliance at its sole cost. - Page 12 ➢ Howick Mews, Waterfall Park, Bekker Road, Vorna Valley, Midrand, Gauteng, South Africa ➢ P.O. Box 1482, Halfway House, Gauteng, 1685 ➢ Sales and Marketing Tel: +27 11 315 0015 Email: sales@univa.co.za ➢ Service and Spares: Tel: +27 11 315 0015 Email: support@univa.co.za...
