Pulsar PSCV5012 Manual

 power output 4A/12VDC
universal AC input voltage range 90÷264V

high efficiency 83%

IP 65 case


1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply equipments that require stabilised voltage of 12V DC.
The power supply unit is protected against short-circuit, overload and surge protection.

1.2. Specifications.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current t
AMB
Output current t
AMB
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Surge protection
IP protection class
Operation conditions
Dimensions (WxLxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Lenght of DC cable
Lenght of AC cable
Storage temperature
Declarations, warranty
* In order to extend the life of the power supply, the load current of 2,8A is recommended.
Graph 1. Relation between output
current and ambient temperature
(instantaneous load).
*
Refer to graph 1
DC voltage LED power supply 50W/12V/4A
Features of the power supply unit:
*
<30°C
=40°C
PSCV5012
Edition: 4 z from 01.04.2014
Supersedes edition: 3 from 20.03.2014
 protections:
 SCP short-circuit protection
 surge protection
 OLP overload protection
 warranty – 2 year from the production date
90 ÷ 264 V AC 50Hz
0,5A@230VAC max.
48W max.
83%
12V DC
4A - refer to graph 1.
2,8A - refer to graph 1.
300mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
varistors
IP65
o o
temperature -10 C÷40 C
relative humidity 20%...90% without condensation
162 x 42 x 32 [mm]
0,37kg / 0,39kg
II (second)
0,3 m
0,3 m
-20ºC...+60ºC
CE, RoHS, 2 year from the production date

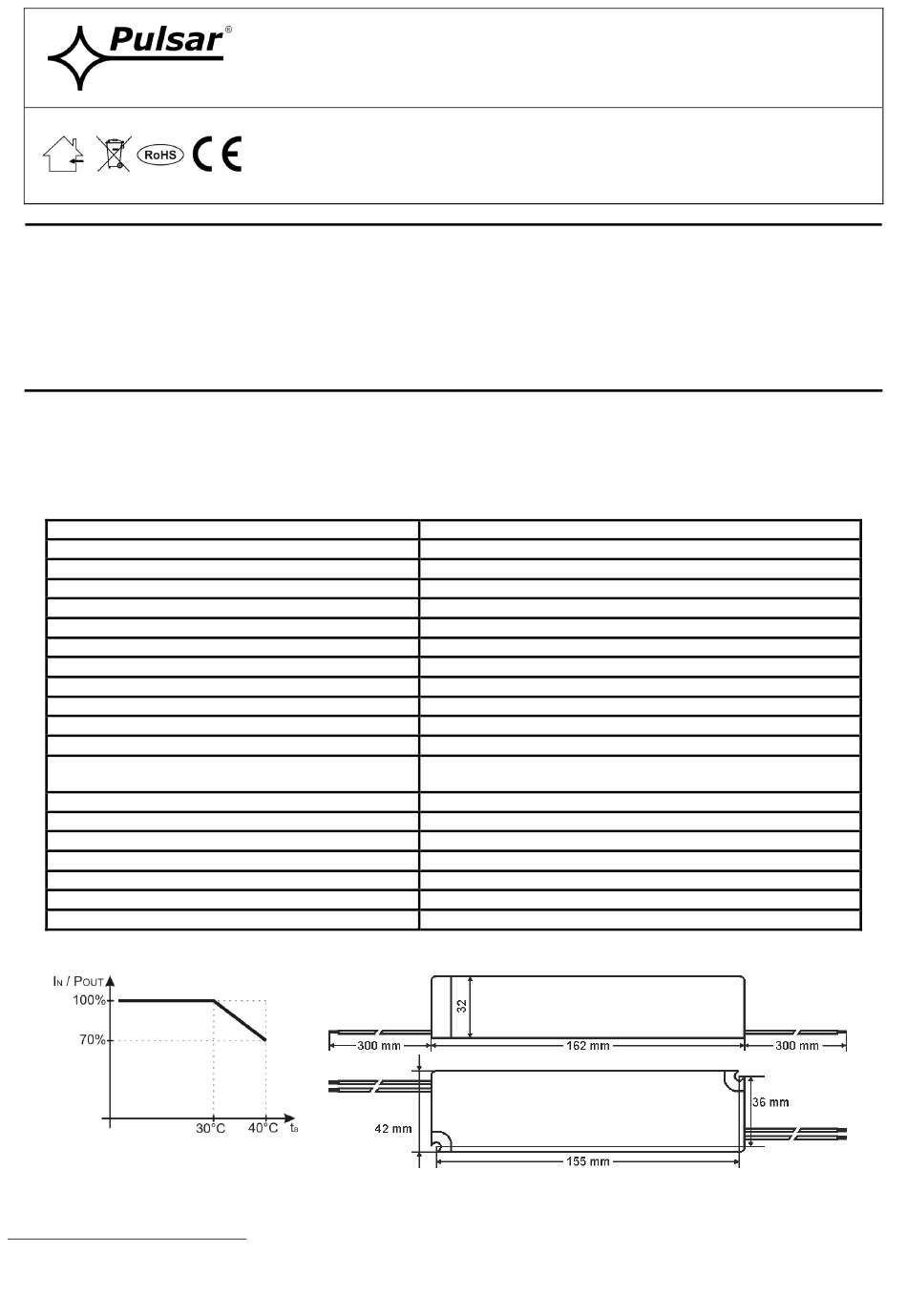

Fig.1. Dimensions of power supply.
1
EN
