Summary of Contents for Black Max WIRELESS Series
- Page 1 WIRELESS SERIES For use with free BLACKMAX app featuring CPS Link ® ® ™ US Patent No. 9,043,161. For Android or iOS mobile devices. OWNER’S MANUAL (English) (Software Version 1.1 or Higher with CPS Link App) ® ™ 2 Valve Series: MD50W, MD50WHE, MD50WVHE 4 Valve Series: MD100W, MD100WHE, MD100WVHE 1.800.561.8187...
-
Page 2: Table Of Contents
CONTENTS Overview ...........................2 General Safety Instructions .......................3 Controls and Features ......................4-5 Manifold Accessories ........................6 Quick Start Instructions (For Use With BLACKMAX Mobile APP) ..........7 BLACKMAX App Home Screen .................... 8-10 Testing: Pressure or Vaccum Hold ..................11 Data Logging ...........................12 Help Screen ..........................13 Quick Start Instructions (Wireless Manifold without APP) .............14 Initial Operation ........................15... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Please read, follow and understand the contents of this entire manual, with special attention given to Danger, Warning and Caution statements. FOR USE BY PROFESSIONALLY TRAINED AND CERTIFIED OPERATORS ONLY. MOST STATES, COUNTRIES, ETC., MAY REQUIRE THE USER TO BE LICENSED. PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY. -
Page 4: Controls And Features

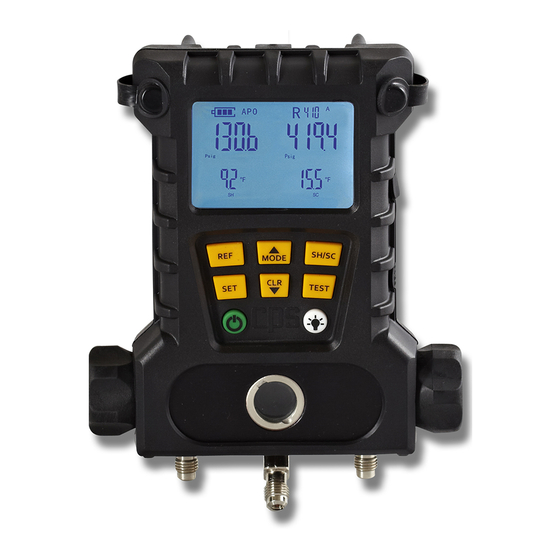

CONTROLS AND FEATURES - BLACKMAX WIRELESS DIGITAL MANIFOLD 1. [ON/OFF] - Press and hold to turn On or Off 2. [SET] - For entering programed values 3. [REF] (Refrigerant) - Scrolls through 5 pre-selected “favorite” or commonly used refrigerants 4. [MODE] - Programming (change English vs. Metric units; Turn Auto-Power OFF) 5. - Page 5 CONTROLS AND FEATURES - BLACKMAX WIRELESS DIGITAL MANIFOLD 21.) Connection Points For Thermistor Sensors 4 Valve Manifold (Front) 4.) Mode 3.) Refrigerant 5.) Superheat/ Subcool 6.) Test 2.) Set 7.) Clear 1.) On/Off 8.) Backlight 13.) Low 9.) High Side Valve Side Valve 12.) Vacuum...
-
Page 6: Manifold Accessories
ACCESSORIES Vacuum Gauge Accessory Kit MDXVG AVT45 Brass Vacuum Gauge Tee Connector Accessory (Included with (only available MDXVG Kit) with MDXVG Kit) Universal Charger MDXBK 4 (AA) UK/Ireland/ U.S. Plug 5 Ft. Cord Rechargeable Singapore/ NiMH Batteries Hong Kong Plug Euro Plug Australia/New Zealand/China Plug... -
Page 7: Quick Start Instructions (For Use With Blackmax Mobile App)
QUICK START INSTRUCTIONS (For Use With BLACKMAX Mobile APP) If you plan to use the wireless manifold without the free app, go to page 14 for quick start instructions - manifold only. 1. Download and install the FREE APP for your wireless BLACKMAX Digital Manifold; •... -
Page 8: Blackmax App Home Screen
BLACKMAX APP HOME SCREEN Current Refrigerant Low Side High Side View 1 Analog Scale Digital Scale Working Temperature(s) Touch icons here to select any of these functions Home Presure Vacuum Data Settings Screen Hold Hold Logging View 2 Touch arrows to toggle between Home Screens (View 1... - Page 9 BLACKMAX APP SETTINGS SCREEN Change Units Target Superheat Settings Select One Zero Offset Open manifold to atmosphere before each use especially if manifold has been dropped or pressurized beyond 800 psig (55 Bar). Change Language 1.800.561.8187 information@itm.com www. .com...
- Page 10 CHANGE OR CONFIRM REFRIGERANTS Move screen Up/Down then select a new active refrigerant. Note: Refrigerant selected will become the default (but not affect FAVORITE FIVE. Changing FAVORITE FIVE refrigerants permanently must be done using the manifold. See page 21 for more information) 1.800.561.8187 information@itm.com...
-
Page 11: Testing: Pressure Or Vaccum Hold
TESTING: Pressure Hold or Vacuum Hold Pressure Hold Test Touch “Start” or “Stop” at any time. Default duration = 5 minutes (Max time = 100 mins) You may navigate to other screens while this test runs gray line is starting point Final graph will show initial, current and final pressures. -
Page 12: Data Logging
DATA LOGGING Mobile Device Logs 1. Shows logs stored in the mobile device’s local storage. 2. For Geolocation, Delete, View or Export logs, touch icons. All stored files have Logs stored in option of showing mobile device Geolocation, Delete, View Or Export New Log Tab 1. -
Page 13: Help Screen
HELP SCREEN APP HELP Select for general description of any item; General Home Pressure Hold Vacuum Hold Data Logging Settings Side Menu Video Watch instructional videos on how to use this app 1.800.561.8187 information@itm.com www. .com... -
Page 14: Quick Start Instructions (Wireless Manifold Without App)
OPERATING THE WIRELESS MANIFOLD WITHOUT THE APP If your mobile device is NOT available, Wireless BLACKMAX Digital Manifolds may also be operated as stand-alone devices. Simply follow these instructions. QUICK START INSTRUCTIONS (WIRELESS DIGITAL MANIFOLD) 1. Install 4 AA Alkaline (included) or rechargeable batteries into back of manifold. 2. -
Page 15: Initial Operation
INITIAL OPERATION 1. To Select A Refrigerant Other Than the One Shown- From Main Screen [FIG.1], press [REF] to scroll through a list of 5 common factory programmed refrigerants. Note: To change default refrigerants, go to page 20. Note: Thermistor sensors must be connected to get a T Low and / or T High temperature reading. 2. -
Page 16: Setting To Zero Pressure
SETTING TO ZERO PRESSURE 1. It is recommended the manifold be opened to the atmosphere before every working session. FIG.4 If display reads other than zero in the selected pressure units, zero can be re-set by pressing and holding [CLR] at main screen. The Pressure Zero Screen [FIG.4] appears and will then return user to Main Screen [FIG.1], where both Pressure Displays should now read zero. - Page 17 PRESSURE HOLD TEST (CONTINUED) 3. Use [UP/DOWN ARROWS] to adjust test duration in 5 minute increments to desired setting (Note: Minimum time is pre-set at 5 minutes. Maximum time is 95 minutes). Press [SET] to store Test Duration. Display will advance to Pressure Set Screen [FIG.8]. FIG.7 FIG.8 Psig...
- Page 18 VACUUM HOLD TEST 3. Assemble the BLACKMAX MDXVG vacuum gauge accessory to the Suction Port on an AC system as shown [FIG.11]. FIG.11 Discharge Discharge Suction Suction port port port port Vacuum Gauge AVT45 Brass Accessory Tee Connector 4. In this mode, the manifold will show current vacuum FIG.12 in the system.
-
Page 19: Programming/Setting Units
VACUUM HOLD TEST FIG.14 Inactive Current Vacuum Level Psig Leak test duration hh : mm Vacuum Display Screen B) Continue to Evacuate the system to the desired level which is indicated in the upper left display once the desired vacuum level is reached: a. - Page 20 PROGRAMMING/SETTING UNITS There are 2 major options. In each, a blinking symbol represents a choice the user can make by pressing [SET]. 1. PrO (Programming) a. Change Refrigerants: Change any or all of 5 common refrigerants accessible at Main Screen. b.
- Page 21 PROGRAMMING/SETTING REFRIGERANTS 5. To select refrigerant displayed, press [REF]. A tone will sound and counter will increment by one indicating that the first refrigerant in the sequence of 5 favorites has been replaced with one selected. 6. To select another refrigerant, repeat steps 3 and 4. 7.
-
Page 22: Setting Apo On Or Off
PROGRAMMING/SETTING VACUUM UNITS (MIC VS. INHG) 1. At main screen [FIG.1] press and hold [MODE] until “PrO” screen [FIG.16] appears. “PrO” blinks. 2. Press [SET] to enter “ PrO” Screen. The Refrigerant Selection Screen appears [FIG.17]. 3. Press [SET] to bypass Refrigerants Screen. The Temperature Units Screen (blinking) appears [FIG.18]. 4. -
Page 23: Connecting To An A/C System
CONNECTING TO AN A/C SYSTEM Various service and test procedures below can be performed after your manifold has been properly connected to an AC system as shown: FIG.24 FIG.25 RECOVERING REFRIGERANT Reference [Fig.24] and [Fig.25] MD50W 2 Valve Manifold [FIG.24] MD100W 4 Valve Manifold [FIG.25] 1.) Connect Low (A) and High (B) Service hoses to 1.) Connect Low (1) and High (2) Side Service... -
Page 24: Evacuating Procedure
EVACUATING PROCEDURES MD50W 2 Valve Manifold [FIG.24] MD100W 4 Valve Manifold [FIG.25] 1.) Connect Low (A) and High (B) Service hoses to 1.) Connect Low (1) and High (2) Service service ports (E) and (D) hoses to service ports (L) and (H) 2.) Connect hose from tee (C) to Inlet port of 2.) Connect 3/8”... -
Page 25: Charging Procedure - High Side
CHARGING PROCEDURE - HIGH SIDE High Side Charging should be done on a completely evacuated system. MD50W 2 Valve Manifold [FIG.24] MD100W 4 Valve Manifold [FIG.25] 1.) A scale should be used to weigh in the charge. Place tank on scale so liquid refrigerant is supplied. 2.) Open Supply tank valve to fill manifold with liquid refrigerant. -
Page 26: Appendix C (Specifications: Mdxbk Charger Accessory)
APPENDIX C (MDXBK CHARGER ACCESSORY SPECIFICATIONS) Operating Temperature Range 32°F to 122°F (0°C to 50°C) Operating and Storage Humidity 0-95% Storage Temperature -40°F to 185°F (-40 to 85°C) Power Source 100-240VAC input, 9VDC 2.0 amp maximum output AA size, NiMH rechargeable, approximate battery life is 20,000 to Battery Type 50,000 hours* 1000 recharges *based on usage with or without the LCD backlight... -
Page 27: Appendix F (Limited Warranty)
APPENDIX F (LIMITED WARRANTY) BLACKMAX digital manifolds are covered by a CPS Products, Inc. LIMITED WARRANTY. CPS Products, Inc. warrants, to the original purchaser, that its BLACKMAX line of digital manifolds and accessories are free from defects in assembly, materials and workmanship for 1 year from the date of purchase, or 15 months from the date of manufacture, whichever is sooner. -
Page 28: Appendix H (Error Indicator Screens)
APPENDIX H (ERROR INDICATOR SCREENS) If certain malfunctions occur, MD50W and MD100W series will display error messages: oP -Appears in display areas reserved for temperature readings when thermistor sensor connected to that port is open circuited or not connected. Replace sensor with CPS model number TMX3C.
