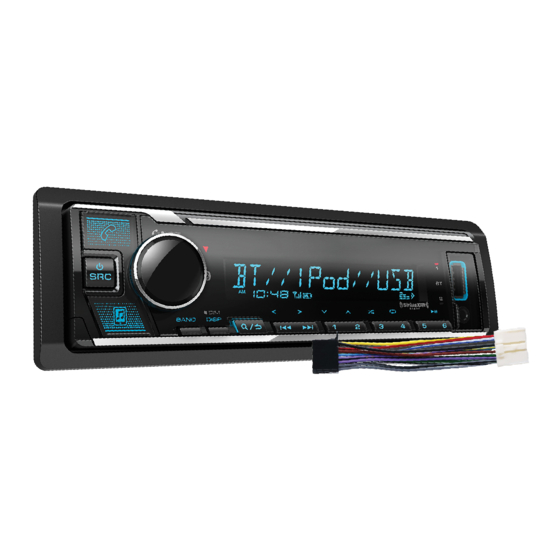

- Page 1 ProAudio PP107235 and PP107237 DIGITAL MEDIA RECEIVER INSTRUCTION MANUAL AUTORADIO NUMÉRIQUE MODE D’EMPLOI RECEPTOR DE MEDIOS DIGITALES MANUAL DE INSTRUCCIONES Brought to market by Pana-Pacific, Inc.
-
Page 2: Table Of Contents
Contents Before Use ....................3 Installation/Connection ............... 26 References ....................28 Basics ......................4 More information Getting Started ..................5 Change the display information 1 Set the clock and date Troubleshooting ..................29 2 Set the other optional settings Radio ......................7 Specifications .................. -
Page 3: Before Use
Before Use IMPORTANT • To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual. • Please keep the manual in a safe and accessible place for future reference. WARNING •... -
Page 4: Basics
Basics Faceplate Volume knob Display window* Lights up when Bluetooth connection is established. (Page 16) * Only for illustration purpose. On the faceplate Press B SRC. Turn on the power • Press and hold to turn off the power. Adjust the volume Turn the volume knob. -
Page 5: Getting Started
Getting Started Set the other optional settings You can only set the following items while the unit is in STANDBY source. Press B SRC repeatedly to enter STANDBY. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob. - Page 6 Getting Started [SOURCE SELECT] [SPOTIFY SRC] [ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 11) [BT AUDIO SRC] [ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. (Page 21) [BUILT-IN AUX] [ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 15) [F/W UPDATE] [UPDATE SYSTEM] [F/W UP xxxx]...
-
Page 7: Radio
Radio Other settings Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. Press and hold to exit. -
Page 8: Usb/Ipod
USB/iPod Radio • [MONO SET]/[TI]/[PTY SEARCH] is selectable only when the band is FM1/FM2/ Connect a USB device FM3. • If the volume is adjusted during reception of traffic information or news USB input terminal bulletin, the adjusted volume is memorized automatically. It will be applied USB cable* the next time traffic information or news bulletin is turned on. - Page 9 USB/iPod Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives.
- Page 10 USB/iPod • To cancel, press or DIRECT. [SKIP SEARCH] setting • Not available if Random Play is selected. Press the volume knob to enter [FUNCTION]. • Not applicable for iPod USB. Turn the volume knob to select [USB], then press the knob. Turn the volume knob to select [SKIP SEARCH], then press the knob.
-
Page 11: Spotify
Spotify You can listen to Spotify on iPhone/iPod touch (via Bluetooth or via USB On the faceplate On the remote control input terminal) or Android device (via Bluetooth). Press 6 IW. Press ENT IW. Play back/pause Preparation: Skip a track Press S*1 / T. -
Page 12: Siriusxm® Radio
SiriusXM® Radio Spotify Only SiriusXM® brings you more of what you love to listen to, all in one place. Search for a song or station Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite Press radio. - Page 13 SiriusXM® Radio Start listening SiriusXM Keymode Press B SRC repeatedly to select SIRIUS XM. Press and hold the volume knob to change the keymode (channel or Press BAND repeatedly to select a band. replay). (Default: Channel keymode) “ ” indicator lights up when replay keymode is selected. Press “...
- Page 14 SiriusXM® Radio SmartFavorites and TuneStart™ SiriusXM settings User stored channels are recognized as SmartFavorite channels*. The Press the volume knob to enter [FUNCTION]. SiriusXM Vehicle Tuner automatically buffers the broadcast content in the Turn the volume knob to select an item (see the following table), then background.
-
Page 15: Aux
SiriusXM® Radio You can listen to music from a portable audio player via the auxiliary input [LOCK SETTING] [MATURE CH]: Selects the SiriusXM-defined lock setting. ; jack. [USER DEFINED]: Selects the individual channels the user wants to lock. ; [OFF]: Cancels. Preparation: [CHANNEL EDIT]*1 1 Turn the volume knob to select a category, then press the knob. -
Page 16: Bluetooth
Bluetooth® Pair and connect a Bluetooth device for the first time • Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this Press B SRC to turn on the unit. unit. -
Page 17: Bluetooth - Mobile Phone
Bluetooth® The following operations may differ or be unavailable depending on the Auto Pairing connected phone. When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to On the faceplate On the remote control [ON]. - Page 18 Bluetooth® *1 This adjustment will not affect the volume of the other sources. Make a call *2 Press and hold VOL to continuously increase the volume to 15. *3 Operations may vary according to the connected Bluetooth device. You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.
- Page 19 Bluetooth® Make a call using voice recognition [PHONE BOOK] (Applicable only if the phone supports PBAP.) 1 Turn the volume knob quickly to enter alphabet search mode (if the Press and hold to activate the voice recognition of the connected phonebook contains many contacts).
- Page 20 Bluetooth® Bluetooth mode settings [INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob.
-
Page 21: Bluetooth - Audio
Bluetooth® Bluetooth — Audio On the faceplate • Operations and display indications may differ according to their availability Repeat play Press 4 repeatedly. on the connected device. • Depending on the connected device, some features may not work with [ALL REPEAT], [FILE REPEAT], [GROUP REPEAT], your device. -
Page 22: Audio Settings
Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. • The settings are stored to [USER] in [PRESET EQ]. • The settings made may affect the current settings of [EASY EQ]. [62.5HZ] [LEVEL] [LEVEL –9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. - Page 23 Audio Settings [SOUND EFFECT] [X ‘ OVER] [SOUND RECNSTR] (Not applicable for RADIO source, AUX source and SIRIUS XM source.) [TWEETER] [FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/ (Sound [ON]: Creates realistic sound by compensating the high-frequency [6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]: Adjusts the reconstruction) components and restoring the rise-time of the waveform that are lost in crossover frequency for the tweeter speaker.
- Page 24 Audio Settings [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB]: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [SW LPF FRQ].) [SW LPF [REVERSE] (180°)/[NORMAL] (0°): Selects the PHASE] phase of the subwoofer output to be in line with the speaker output for optimum performance.
-
Page 25: Display Settings
Display Settings Zone identification for color settings and brightness settings Default: [XX] [DISPLAY] [COLOR SELECT] Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately. 1 Select a zone. (See the illustration on left column.) 2 Select a preset color for the selected zone. (Page 26.) Default: [VARIABLE SCAN] To make your own color, select [CUSTOM R/G/B]. -
Page 26: Installation/Connection
Installation/Connection Display Settings Removing the unit [CLOCK] [CLOCK DISPLAY] [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. - Page 27 Wiring connection The PP107235 radio will include a wiring harness adapter for Antenna terminal standard ISO connection. Fuse (10 A) The PP107237 radio will include a wiring harness adapter for connection to Hino trucks. Hino Pin ISO Pin Color and Function Yellow (Battery wire) If no connections are made, do not let the wire come out from the tab.
-
Page 28: References
References More information About Spotify • Spotify application supports: Playable files – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later) • For USB mass storage class device: –... -
Page 29: Troubleshooting
Troubleshooting References Source name Display information: Main display Symptom Remedy STANDBY Source name Date back to the beginning Sound cannot be heard. • Adjust the volume to the optimum level. • Check the cords and connections. RADIO Frequency Date back to the beginning “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals of For FM Radio Broadcast Data System only:... - Page 30 Troubleshooting Symptom Remedy Symptom Remedy “UNSUPPORTED DEVICE” • Check whether the connected USB device is compatible “iPod ERROR” • Reconnect the iPod. appears. with this unit and ensure the file systems are in • Reset the iPod. supported formats. (Page 28) “MEMORY FULL”...
- Page 31 Troubleshooting Symptom Remedy Symptom Remedy “NO SIGNAL” Make sure the antenna is mounted outside the vehicle. Sound is being interrupted or • Reduce the distance between the unit and the Bluetooth skipped during playback of a audio player. “SUBSCRIPTION UPDATED Your subscription is updated.
-
Page 32: Specifications
Specifications Frequency Range 87.9 MHz — 107.9 MHz (200 kHz step) Frequency Response (±3 dB) 20 Hz — 20 kHz Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) Input Maximum Voltage 1 000 mV (S/N = 30 dB) Input Impedance 30 kΩ Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) (DIN S/N = 46 dB) - Page 33 Specifications Preout Level/Load 2 500 mV/10 kΩ Preout Impedance ≤ 600 Ω Operating Voltage 12 V DC battery Installation Size (W × H × D) 182 mm × 53 mm × 100 mm (7-3/16" × 2-1/16" × 3-15/16") Net Weight (includes Trimplate, 0.7 kg (1.5 lbs) Mounting Sleeve) Subject to change without notice.
- Page 34 Información acerca de la eliminación de equipos eléctricos y electrónicos al final de la vida FCC CAUTION útil (aplicable a los países que hayan adoptado sistemas independientes de recogida de Changes or modifications not expressly approved by the party responsible for compliance could void the residuos) user’s authority to operate the equipment.
- Page 35 SOFTWARE LICENSE AGREEMENT ISED CAUTION This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions conditions: which Users shall follow in order to use the Licensed Software.
- Page 36 Article 4 Right pertaining to the Licensed Software Article 9 Destruction of the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or Software, any related documents and copies thereof within two (2) weeks from such date of termination.
- Page 37 Important Notice concerning the Software -CMP The MIT License (MIT) Copyright (c) 2014 Charles Gunyon -jansson Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org> documentation files (the "Software"), to deal in the Software without restriction, including without Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/ or sell copies of...
- Page 38 sha2 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ Author: Chris G. Demetriou Copyright (c) 2000-2001, Aaron D. Gifford Permission to use, copy, modify and distribute this software and its documentation is hereby granted, All rights reserved.
- Page 39 T-Kernel 2.0 Accordo2 Player This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum Apache License (www.tron.org) Licensed under the Apache License, Version 2.0, January 2004(the "License"); BSD-3-Clause You may obtain a copy of the license at Copyright (c) 2000-2001, Aaron D.
- Page 40 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
