Note: If you have any questions about the APP or device, please click Profile ->Feedback to fill
your feedback to us in APP.
1. PRODUCT REVIEW

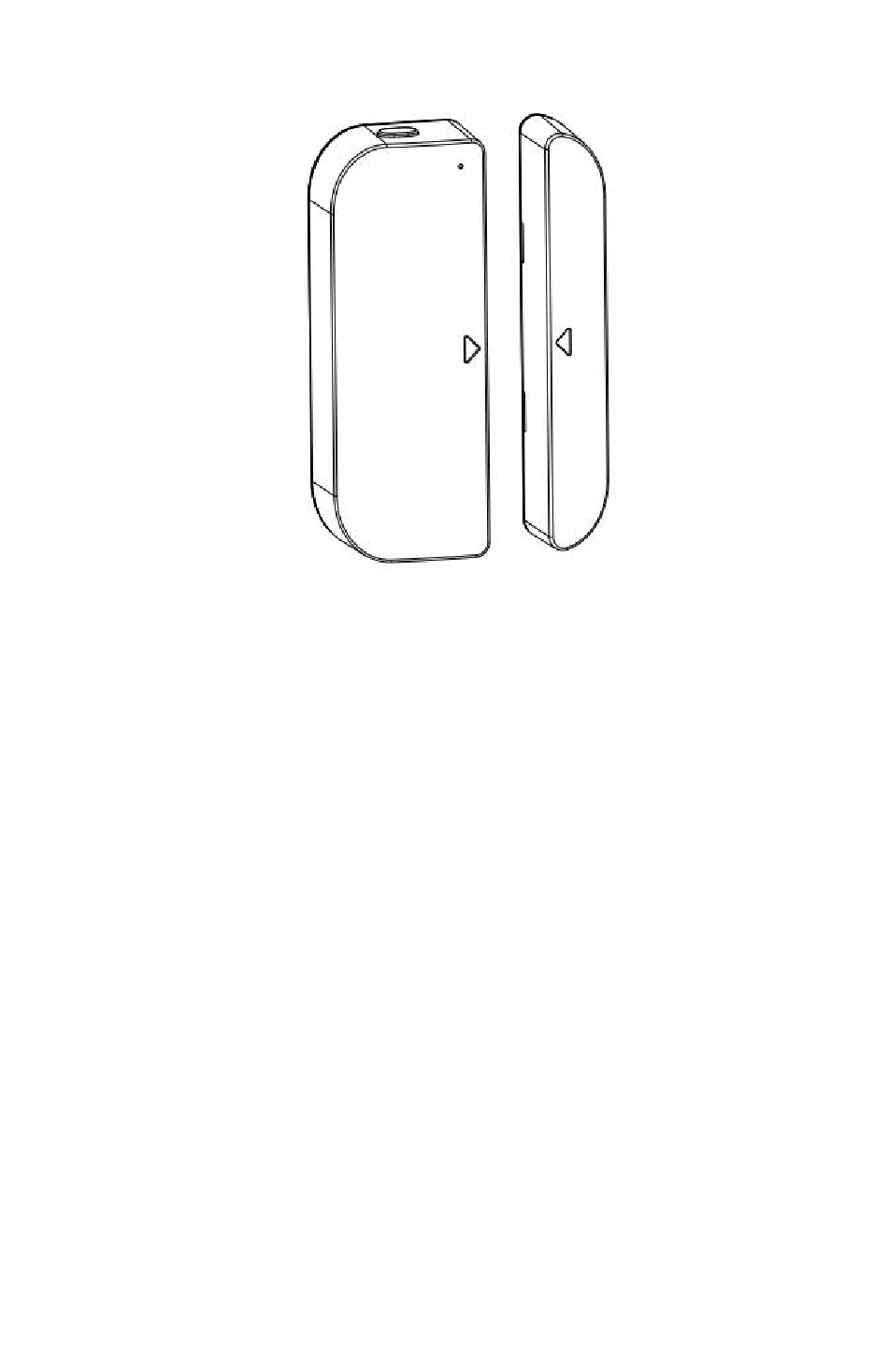

This Door/Window Sensor is a Wi-Fi, battery powered reed sensor, including device part
and magnet part. Working with APP together in your mobile phone, once the state changing
(close or open) detected, the device will wake up the Wi-Fi connection to Wi-Fi router, send
an alarm signal to your mobile phone via Wi-Fi network, in the case that the APP internet is
available locally or remotely. The alarm is selectable as a notification on your mobile phone
with bar display, banner with tone, vibration based on the APP Notification setting on your
Mobile Phone. There is an around 5-second delay from the state changes to notification on
your mobile phone depending on the internet connection quality.
Besides working with APP, this device is compatible with Amazon Alexa and Google
Home to check the device state (close or open), such as "Alexa, is the door locked?" or "OK
Google, it the door on?" after the device linked to Alexa account and Google Home account
correctly.
This device is working as a scene to trigger other device action that are compatible in
same APP such as to turn on/off plug and bulb. An IFTTT application is supported.
This device can be installed on Door, Window and Drawer, which one part is the frame
and the other part can be moved.
Door/Window Sensor User Manual
HKSWL-DWS08
Advertisement
Summary of Contents for Hank HKSWL-DWS08
- Page 1 Door/Window Sensor User Manual HKSWL-DWS08 Note: If you have any questions about the APP or device, please click Profile ->Feedback to fill your feedback to us in APP. 1. PRODUCT REVIEW This Door/Window Sensor is a Wi-Fi, battery powered reed sensor, including device part and magnet part.
-
Page 2: Product Features
2. PRODUCT FEATURES Working in 802.11 b/g/n 2.4GHz wireless network (no hub required); Wi-Fi network configuration with EZ (Smart Config) and AP(Access Point) mode; Powered by 2xAAA battery for lasting 6 months depending on alarm frequency; Real state (open/close) monitor in APP; ... -
Page 3: Product Specifications
1) Latch button: press the Latch button to take apart the battery cover from the device part in order to change the batteries or setup the Wi-Fi network. 2) Button: Long press for 5 seconds this button to enter the Wi-Fi network mode. Switch between EZ mode and AP mode by long press the button more than 5 seconds 3) Tamer button: Loose this button will trigger a tempered Alarm to Mobile Phone;... - Page 4 5. INSTALL APP AND REGISTER AN ACCOUNT 5.1 Scanning the following QR code to download APP for Android and iOS System. Or you can download the APP named as “Smart Life” from Apple store and Google Play. 5.2 Launch the APP and register an account with your email address then login; i) Download APP and install ii) Register the APP Android &...
- Page 5 6.2 Press the device button for 5 seconds to enter the Wi-Fi configuration state (fast blinking in EZ mode or slow blinking in AP mode). 6.3 Input the Wi-Fi SSID and password of the Wi-Fi network that the device is going to work with, then waiting around 30 seconds for the Wi-Fi configuration finished until a device is successfully added;...
- Page 6 AP mode: Click AP Mode, make sure your APP is internet available and device and APP both work in AP mode. Confirm to input the SSID and Password of Wi-Fi network, then select the Device AP name with SmartLife-xxxx in Wi-Fi list then back to App to finish the device adding.
- Page 8 After the device is successfully added to APP account, the LED will turn off. Using the methods mentioned in LED indicator to check the device is successfully added or not. If not, please repeat the Device adding again. 6.6 Remove device 1) Click “Remove Device”...
- Page 9 2. This Sensor should only be placed indoor and away from water and other extreme weather conditions. 7.2 Using one of the following methods to mount the device to the wall, door or window: 3M Tap Mode 1) Stick the included self-adhesive pads to the bottom of the device and magnet. 2) Peel off the protective layer of the sticker.
- Page 10 7.3 Change the battery and change the Wi-Fi network In the case of the battery is over or the Wi-Fi network is changed (SSID or password is changed), take down the device part, to replace the battery or config the Wi-Fi network again; 1) Press and hold the Latch button to take apart the device part.
- Page 11 2) You will be redirected to the account link page. Type in your APP account and password, don't forget to select the country/region where your account belongs to. Then tap "Link Now" to link your account to Alexa account. The country/region, the account, and the password must match with the exact content when you registered the account.
- Page 12 Note: When you change the device's name on App account, the re-discovery has to be done before you control them by voice. If the Alexa device can not find this door sensor added in your linked account, please disable the “Smart Life”...
- Page 13 2) Find "Smart Life" in the list. In the new window, select your device account’s region, type your device account and password, then tap "Link Now". After you assign rooms for devices, your devices will be listed in the Home Control page. 9.3 Get the device state through Google Home Now you can get the device state through Google Home devices.
- Page 14 2) Select “Connect”, then an Device App account information is required to input: account and password and Select your device account’s region. After the successful linked with your device account, click the “Authorize” to finish the account link; 10.3 Setup the IFTTT applet 1) From My Applets, click New Applet to create a new Applet.
- Page 15 For example: “IF Door sensor is turned on, then send me an email at xxxxxxx@gmail.com” is created as an IFTTT applet. 12. FCC NOTICE (for USA) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause...
- Page 16 cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver.
- Page 17 3. Make sure the Notification settings are enabled with this APP. The setting is different from the version of Android system and the Model of Mobile Phone. As a sample of Huawei Mate8, from Settings -> Apps & Notifications -> Apps, select the “Smart Life” APP ->...
- Page 18 If you have any questions about the APP or device, please click Profile -> Feedback to fill your feedback to us in APP Or Check the Profile -> FAQ to find some answers.
