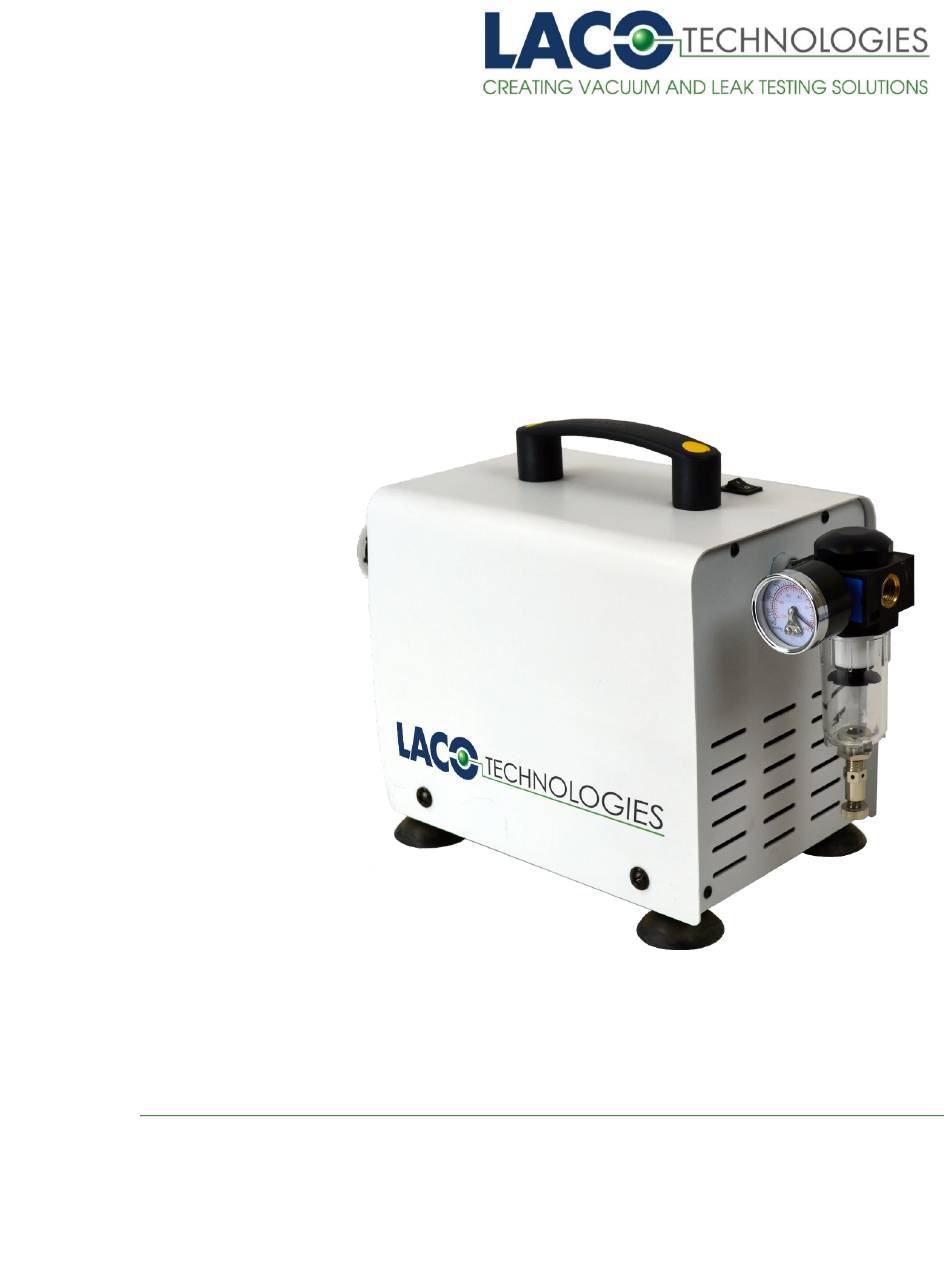

- Page 1 UN-150V DRY PISTON PUMP OPERATION AND MAINTENANCE MANUAL...
- Page 2 Product Name: UN-150V Dry Piston Pump Product Group: UN Series Dry Piston Pumps Part Numbers: UN-150V Manual Rev Number: SMT-09-1011-A1 © 2019 LACO Technologies, Inc. No part of this manual may be reprinted, translated or duplicated without the expressed written consent of LACO Technologies, Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Alert Symbols ................................1 Specifications .................................. 1 Dimensions..................................1 General Information ..............................2 Installation ..................................3 Operation ..................................3 Maintenance ................................... 4 Service ....................................4 Troubleshooting ................................5... -
Page 5: Alert Symbols
WARNING: Severe personal injury or deal can occur if hazard is ignored CAUTION: Minor injury or property damage can occur if hazard is ignored. Specifications Model Max. vacuum Max. pressure Open flow Watt Weight UN-150V 720 mmHG 45 l/min 6.8 Kg Dimensions... -
Page 6: General Information
This is particularly important when the unit is installed in a confined space where heat may build up during operation. WARNING: UN-150V units are oil-less design. Never lubricate these oil-less units. Most components are made of aluminum and the valves are stainless steel. -
Page 7: Installation
SMT-09-1011 Installation WARNING: To avoid risk of electrocution, do not use this product in an area where it could come in contact with water or other liquids. If exposed to the elements, it must be weather protected. CAUTION: Do not block the flow of cooling air over the unit in any way. CAUTION: Be sure that the available electric power matches specifications marked on the unit. -
Page 8: Maintenance
SMT-09-1011 CAUTION: After use, disconnect plumbing and let the unit run open for about 5 minutes in air before switching it off to purge out droplets of liquid that may have formed on the inside of the unit. This prevents crystallization and/or absorption of liquids. -
Page 9: Troubleshooting
Failure to do so can result in severe personal injury. NOTE: LACO Technologies will not guarantee the performance of a field rebuilt unit. You can return the unit to LACO Technologies or an LACO Technologies authorized distributor. Troubleshooting...
