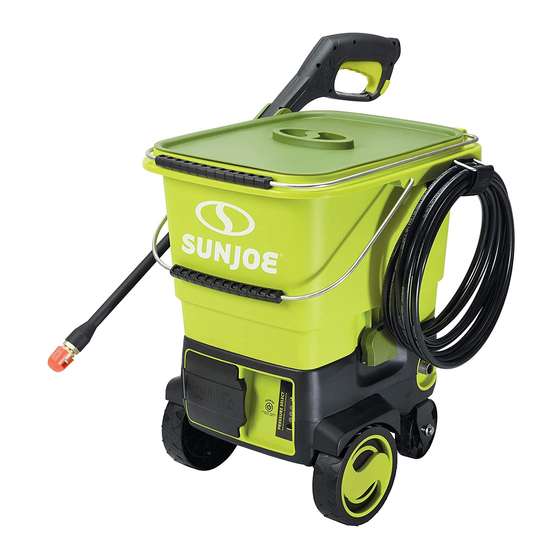

Cordless go-anywhere portable pressure washer

Advertisement

Quick Links

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS GO-ANYWHERE
PORTABLE PRESSURE WASHER
R
1160 PSI MAX
Model SPX6001C
+ Sun Joe
dealer or
®
®
customer service center at
®
|
| 1 GPM MAX
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a machine with
power with your finger on the trigger. Make sure the switch
is off before insert the battery.
• Remove the battery – Remove the battery from the
pressure washer when it is not in use, before servicing it,
when changing accessories, and when performing any
other maintenance task.
• Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is
not meant to pump hot water. NEVER connect it to a hot
water supply or pour hot water into the bucket as it will
significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
persons unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
• Risk of explosion – Do not spray flammable liquids.
• Keep children away – This cordless high-pressure washer
must not be used by children or untrained personnel.
Close supervision is necessary when a product is used
near children.
• To ensure appliance safety, use only original replacement
parts from the manufacturer or those approved by
the manufacturer.
1
40 V MAX*
Form No. SJ-SPX6001C-880E-MR2
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE SPX6001C and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE SUNJOE SPX6001C

  • Page 1 + Sun Joe customer service center at ® ® manufacturer. The use of other cleaning agents or chemicals 1-866-SNOWJOE (1-866-766-9563). may adversely affect the safety of the appliance. WARNING! When using the pressure washer, basic WARNING! Do not use the appliance within range of safety precautions should always be followed to reduce the persons unless they are wearing protective clothing.
  • Page 2: Battery & Charger Safety Instructions

    WARNING! CAUTION! During cleaning, maintenance or when To reduce the risk of injury, charge the replacing parts, the machine must be disconnected from its 40V iONMAX lithium-ion battery pack only in its designated power source by removing the battery. 40V iONMAX lithium-ion charger. Other types of chargers present risk of fire, personal injury and damage.
  • Page 3 ® ® ® washer is only partially charged. The battery pack has to customer service center at 1-866-SNOWJOE be charged completely before you use the tool for the (1-866-766-9563). first time. 3. Electrical plugs must match the outlet. Never modify 2.
  • Page 4: Product Description

    Risk of Explosion 8. Never use or charge batteries if you suspect that it has been more than 12 months since the last time they • Do not spray flammable liquids. were charged. There is a high probability that the battery pack has already suffered dangerous damage •...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
  • Page 6 Know Your Cordless Pressure Washer Read the owner’s manual and safety instructions carefully before operating the cordless pressure washer. Compare the illustration below to the cordless pressure washer in order to familiarize yourself with the location of the various controls and adjustments.
  • Page 7 ® ® Battery Capacity ......... 4.0 Ah 1-866-SNOWJOE (1-866-766-9563). Charge Time Max ........3 hours NOTE: Do not discard the shipping carton and packaging Battery Run Time Max ........ 21 min material until you are ready to use your new cordless pressure washer.
  • Page 8 3. Insert the trigger gun holder onto the bucket (Fig. 3). Fig. 5 Fig. 3 1. Flip up Trigger gun holder Bucket buckle 2. Press the end WARNING! When the water bucket is fixed on the base unit, do not lift the pressure washer by the handle. Instead, use the tow handle to pull the pressure washer unit along on its wheels (Fig.
  • Page 9 7. Unlock the lock latch by sliding it down, and insert the Fig. 10 high pressure hose into the high pressure hose connection on the end of the trigger gun. Slide the latch back to lock the hose in place (Figs. 8 – 9). Fig.
  • Page 10: Battery Pack Operation

    Battery Pack Operation • Use the battery charge indicator lights to determine when to charge your iONMAX iBAT40 lithium-ion battery pack. The equipment is powered by a lithium-ion battery. The battery • You can "top-off" your battery pack's charge before starting pack is completely sealed and maintenance free.
  • Page 11: Operation

    If the problem persists, contact the overheating, thus saving energy and prolonging pump life. Snow Joe + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563) for assistance.
  • Page 12 The TSS system will work only when there's water in the 3. Put the bucket back on the base unit. Make sure the bucket is properly aligned on the base. Latch and lock bucket or the base unit is connected with a water supply. the buckles to ensure the bucket is securely connected When there's no water connected with the unit, the On/Off before using (Figs.
  • Page 13 NOTE: This machine is equipped with 3 selectable power/ Fig. 19 pressure levels. See table below for detailed specs. Light Rated Power Rated flow indication pressure – Off 0.68 GPM 500 PSI – Off Connect to water supply – On – Off Medium 0.74 GPM 650 PSI...
  • Page 14 To disconnect a nozzle from the spray wand once the cleaning job is complete: Fig. 24 4. Turn off the pressure washer and remove the water bucket/shut off the water supply. Pull the trigger to release water pressure. 5. Lock the safety lock on the trigger handle by pushing on Spray gun the safety lock until it clicks into the slot.
  • Page 15 Shutting Down Fig. 25 1. Press the On/Off button on the control panel. 2. Pour the remaining water out from the bucket or turn off the water source. 3. Hold the trigger to release water pressure. 4. If using the base unit directly, disconnect the garden hose from the water inlet on the base unit.
  • Page 16 • Operate the pressure washer with non-corrosive/non-toxic Fig. 28 anti-freeze, a pump saver, or a pump protector before storing for the winter. WARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again.
  • Page 17: Service & Support

    Snow Joe • Consult the dealer or an experienced radio/TV technician ® for help. Sun Joe customer service center at 1-866-SNOWJOE ® (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging...
  • Page 18: Troubleshooting

    • Pump seals worn out • Please call the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance Machine stops • Thermal sensor activated • Leave the washer for 5 minutes to cool down • Nozzle partially blocked •...
  • Page 19 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 20 NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
  • Page 24 sunjoe.com...
