Page 2
Built in Mount Speaker MIcrophone Activator Reset Button (3) D-Cell Battery Battery Drawer Reset Button Screw Battery Drawer Built-in Mounting...
Page 3

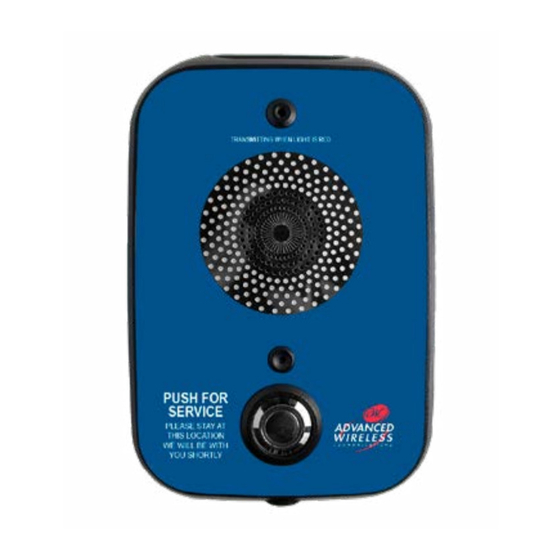

AWR-CB2100 UHF One-way Call box Features: • 450MHz to 470MHz Frequency Band of Operation - Analog • .5W or 2W transmit power level • Water resistant (IP67) • Companding on/off • Optional customized call box labels (front / two sides)(Special order) •...
Page 4
• Low Battery alert Each time the AWR-CB2100 call box is activated, the battery level is measured. If the battery level has dropped to a low battery level condition, the call box will process the ‘Low Battery Alert’ message at the end of each radio alert transmission.
Page 5
Advanced Operational Functionality: • Recording audio messages using the on-board call box microphone. The call box MUST be in ‘Sleep Mode’ when the following steps are started: 1. Press the ‘Activate’ and ‘Reset’ buttons simultaneously until the status LED flashes two times. 2.
