Elite Acoustics Engineering
D6-8 PRO Acoustic Guitar Amplifier with
6 Channels, Digital Mixer & Effects, and
Bluetooth
®
Quick Guide Handbook version v1.02

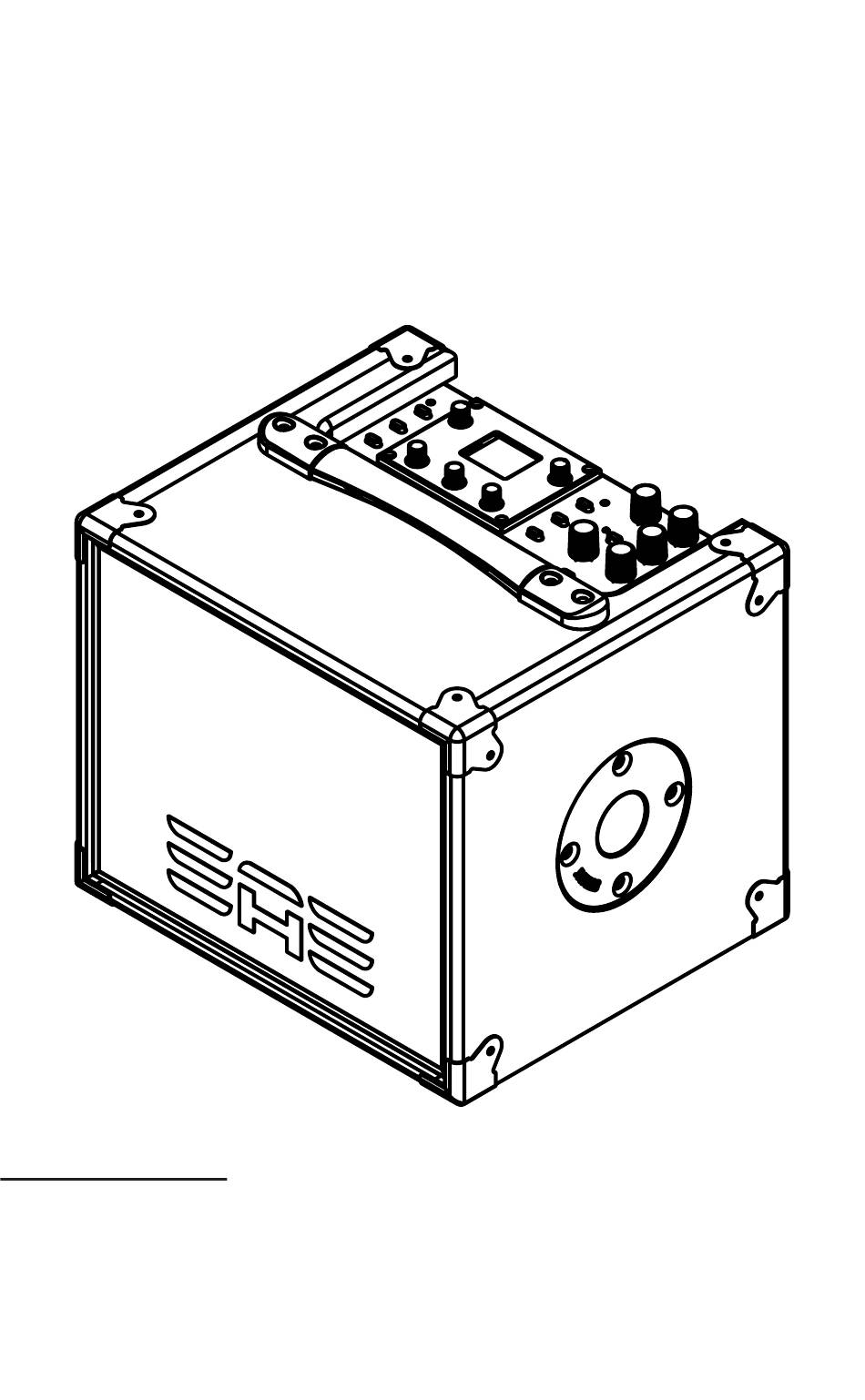

WHAT IS IN THE BOX
Your D6-8 PRO package contains the following:
(1) Speaker
(1) AC power cord
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Designs, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
For a copy of the complete User's Manual, please visit: www.eliteacoustics.com - June 28, 2020
Advertisement
Summary of Contents for Elite Acoustics Engineering D6-8 PRO
- Page 1 ® Quick Guide Handbook version v1.02 WHAT IS IN THE BOX Your D6-8 PRO package contains the following: (1) Speaker (1) AC power cord The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks...
- Page 2 QUICK START MIC AND ACOUSTIC GUITAR In this example we connect an acoustic guitar to Chan 1, and a Mic to Chan 2. 1. Connect Power cord. 2. With “Speaker Volume” turned down, Turn “Power Switch” to “On” position. 3. Connect the Line Level Output of your acoustic guitar into Chan 1, Line or INSTR 1/4”...
-
Page 3: Lcd Functions
LCD FUNCTIONS Main Ch56 Main Chorus Delay System Reverb Menu Buttons with LCD: Press any of the 6 menu buttons(black button located to the left and right of LCD) or 5 encoders(blue knobs located around LCD) to access and adjust features and settings. Most menus have several pages of options, which are adjusted by turning the corresponding encoder. - Page 4 System “System” : “Scenes” “System” : “Routing” Save and Recall up to 10 mixes i.e., Assign “Pre” or “Post” fader i.e., “Main scenes. Mix” Channel 1 through Channel 6, signals to the Aux Sends. You can also select either “Main” mix or “Aux” mix as the source for the XLR outputs.
- Page 5 Ch 1 Util V dB V Hz “Encoder Select” (press to enable): “Encoder Select” (press to enable): “Ch 1 EQ” “Ch 1 UTIL Adjust the EQ settings for which ever Adjust Phase and Notch Filter level/ channel is selected. (Chan 1- 5/6) Freq.
-
Page 6: Bluetooth Function
+48V -15+ High Aux In Peak Signal Mono -15+ -15+ Monitor +48V LED [2]: Indicates Phantom Power is on Monitor Output Controls Speaker Volume [3]: Control speakers’ volume level Mono [4]: Changes speaker output to Mono sound Equalizer [5]: Adjust High, Mid, and Low Frequency response Peak LED [6]: RED indicate Signal Clip Signal LED [7]: GREEN indicate Signal Present Aux Input/Level [8]: Connect audio source with 1/8”... -
Page 7: Reference Diagram
Gain Gain Level Level Output Source ELITE ACOUSTIC Mute Mute Mute Mute D6-8 PRO - Acoustic Amplifier with Six Channels, Digital Mixer & Effects, and Bluetooth ® Main Outputs Left CHAN 1/2 Direct Output (Mono) Serial Number Mic/Line Mic/Line Instrument... - Page 8 Channel 1 CHAN 1 CHAN 2 Gain [9]: Gain level control INSTR INSTR Mute [10]: Mute Channel PAD [11]: Fixed attenuation to reduce input level Gain Gain Source[12]: Select Mic/Line or Mute Mute Instrument input Instrument In [13]: 1/4” TRS inputs Line In [14]: 1/4”...
- Page 9 CHAN 5/6 Channel 5/6 Level [26]: Level control Left (Mono) [16]: 1/4” balance Level TRS input Right [17]: 1/4” balance TRS input Left (Mono) Right Monitor Output: Connect with extra speakers/monitors Monitor Right Output [21]: Connect to another speaker using 1/4”...
- Page 10 XLR output Level XLR output source [22]: Select either Main Mix or Direct Output for Chan 1 & 2 GND LIFT OMain Output [23]: XLR Right/Left Output Balanced...
-
Page 11: System Specifications
SYSTEM SPECIFICATIONS • System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A conversion. Integrated Digital Mixer supports routing and seamless signal-level management for five fully configurable audio channels. Color Graphic LCD presents a highly intuitive GUI for settings, save &... - Page 12 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
