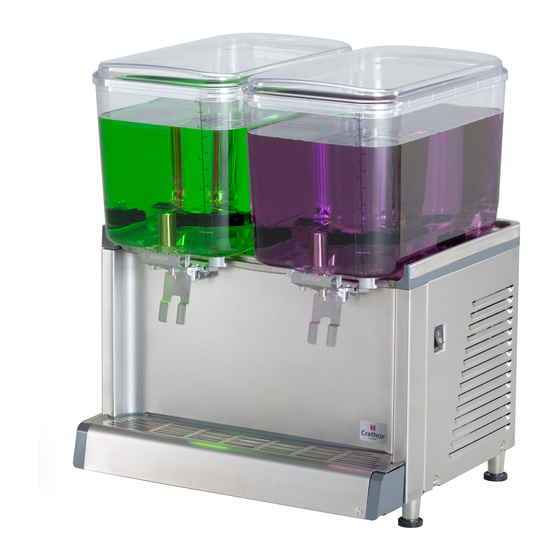

Grindmaster Cecilware Crathco CS-2E-16 Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Crathco
Activate your warranty now at
http://gmcw.com/warranty-registration
Model CS-2E-16
Model CS-3L-16
(cULus certification applies only to
United States and Canada models.)
Safety Information........................2
Specifications.................................3
Installation and Set-Up.................4
Thank you for purchasing this quality cold beverage dispenser. For your safety and the safety of
others, read all warnings and the operator's manual before installing or using the product. Properly
instruct all operators. Keep training records. For future reference, record serial number here:
Grindmaster-Cecilware
4003 Collins Lane, Louisville, KY 40245 USA
Phone: 502.425.4776 Toll Free: 800.695.4500
Fax: 502.425.4664
Web: gmcw.com Email: info@gmcw.com
©2017 Grindmaster-Cecilware
Printed in Thailand
Simplicity
Cold Beverage Dispensers
®

Table of Contents

Operator Manual
Bubbler
™
Daily Cleaning ...............................8
Troubleshooting ..........................11
Basic Machine Parts ....................14
Grindmaster-Cecilware provides the industry's
BEST warranty. Visit gmcw.com for warranty
terms and conditions.
Model CS-2D-16
0917 Form # CC-330-05
Part # 390-00003

Advertisement

loading
Need help?

Need help?

Do you have a question about the Crathco CS-2E-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grindmaster Cecilware Crathco CS-2E-16

Summary of Contents for Grindmaster Cecilware Crathco CS-2E-16

  • Page 1: Table Of Contents

    Operator Manual Simplicity Bubbler ™ Crathco Cold Beverage Dispensers ® Activate your warranty now at http://gmcw.com/warranty-registration Model CS-2D-16 Model CS-2E-16 Model CS-3L-16 (cULus certification applies only to United States and Canada models.) Table of Contents Safety Information......2 Daily Cleaning .......8 Specifications.........3 Troubleshooting ......11 Installation and Set-Up....4...

  • Page 2: Safety Information

    Safety Information Important Safety Information This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. For your safety and the safety of others, read all warnings and the operator manual before installing or using the product.

  • Page 3: Specifications

    Specifications Northern America Model Description Dimensions (H x W x D) Electrical Certifications CS-2E-16 (2) 2.4 gallon (9L) bowls, 27.5” x 10.5” x 17.75” 120V / 60 Hz / 3.6A C-UL US, NSF agitator model. CS-2E-16-S (2) 2.4 gallon (9L) bowls, 27.5”...

  • Page 4: Installation And Set-Up

    Installation and Set-Up Place machine on counter with proper spacing. • The appliance must be placed in a horizontal position. • The appliance is suitable for indoor use only. Position machine away Place dispenser on Allow 5” (13 cm) on sides from heat emitting and 6”...
  • Page 5 Installation - Agitator Function (Model CS-XX-YY) CAUTION/ ATENCIÓN/ ATTENTION Sharp edges can cause personal injury. Handle with care. Replace impeller if Replace axle if flange thickness is less than bearing surface is 0.75mm worn more than (0.03 inch) 0.5mm (0.02 inch). thick.
  • Page 6 Installation - Spray Function (Model CS-XX-YY-S) CAUTION/ ATENCIÓN/ ATTENTION Sharp edges can cause personal injury. Handle with care. Replace impeller if Replace axle if flange thick- ness is less than 0.75mm bearing surface is (0.03 inch) thick. worn more than 0.5mm (0.02 inch).

  • Page 7: Product Preparation & Use

    Product Preparation & Use Wash hands thoroughly when handling Wire whisk Mixing tools. dispenser and product. Pail Measuring pitcher Use only clean mixing tools to prepare product. To ensure safe and quality beverage, use only Prepare concentrate by mixing powder with water reliable, purified, or potable water source to using wire whisk until completely dissolved.

  • Page 8: Daily Cleaning

    Daily Cleaning Machine Disassembly AILY Turn power “off”. Remove drip tray and cover. Drain bowl. Remove handle. Rotate support brackets for drip tray. FRAGILE! NOTICE/ AVIS/ AVISO: Press release latch on front of the Remove bowl cover. Do not drop. machine before removing the bowl.
  • Page 9 Take parts to sink. THOROUGHLY CLEAN ALL PARTS IN WARM WATER USING A MILD NON-ABRASIVE DETERGENT AND RINSE THOROUGHLY. NOTICE/ AVIS/ AVISO: ABRASIVES WILL SCRATCH PLASTIC PARTS. WASH BOWL LIDS IN COOL OR LUKEWARM WATER TO AVOID LEAKS DUE TO SEALED SURFACE BEING DAMAGED. NOTICE/ AVIS/ AVISO: The appliance is not suitable for installation in an area where a water jet could be used.
  • Page 10 Daily Cleaning (cont.) Daily Sanitizing Crathco ® Simplicity Bubbler...

  • Page 11: Troubleshooting

    Troubleshooting Leaking a. O-ring nicked, b. Foreign particles on deformed, or bowl valve seat? Cracked bowl? Replace bowl. Drain tray overflow? Empty tray. twisted? Valve securely in place? Push Gasket secured in place? Push to seat. and twist to seat. No product agitation Replace pump axle if flange...
  • Page 12 Troubleshooting (cont.) No refrigeration Power switch on? Plugged in to wall outlet? Compressor does not operate; Faulty thermostat? fan does? Machine will not operate. ( Call for service. ( Call for service. Poor refrigeration Dirty condenser filter and condenser? Clean condenser or ( call for service. Impeller does not spin.
  • Page 13 Troubleshooting (cont.) Noisy machine Bowl or pump installed while unit in “on” position? Impeller installed correctly in bowl? Turn unit off. Reinstall parts. Faulty pump motor bearings. Chattering impeller? Ensure ( Call for service. correct drive magnet height or ( Call for service. Replace pump axle if flange Replace...

  • Page 14: Basic Machine Parts

    Basic Machine Parts CS-2E, CS-1D Crathco ® Simplicity Bubbler...
  • Page 15 Basic Machine Parts (continued) Parts List Simplicity Mini Twin (CS-1D / CS-2E) Item Description CS-2E-16 CS-1D-16 CS-2E-10 CS-1D-10 CS-2E-22 CS-1D-22 BASE ASSEMBLY PARTS Base Structure, Mini Twin 200-00048 200-00048 200-00048 200-00048 200-00048 200-00048 Front Panel assembly with magnet, Mini Twin 231-00006 231-00006 231-00006...
  • Page 16 Basic Machine Parts (continued) CS-3L Crathco ® Simplicity Bubbler...
  • Page 17 Basic Machine Parts (continued) Parts List Simplicity Triple 18L, Bowl (CS-3L) Item Description CS-3L-16 CS-3L-22 BASE ASSEMBLY PARTS Base Structure, Mini Quad 200-00142 200-00142 Front Panel assembly with magnet, CS-3L 231-00392 231-00392 Front Panel assembly with magnet, CS-3L, Woodgrain 231-00601 231-00601 Screw Truss Head SS.
  • Page 18 Basic Machine Parts (continued) CS-4E, CS-2D, CS-3D Crathco ® Simplicity Bubbler...
  • Page 19 Basic Machine Parts (continued) Parts List Simplicity Mini Quad (CS-4E /CS-2D / CS-3D) Item Description CS-4E-16 CS-4E-22 CS-2D-16 CS-2D-22 CS-3D-16 CS-3D-22 BASE ASSEMBLY PARTS Base Structure, Mini Quad 200-00142 200-00142 200-00142 200-00142 200-00142 200-00142 Front Panel assembly with magnet, Mini Quad 231-00287 231-00287 231-00287...
  • Page 20 If you still need help, call Grindmaster-Cecilware Technical Service Department, (502) 425-4776 or (800) 695-4500 (USA & Canada only) (Monday through Friday 8 AM - 6 PM EST). Please have the model and serial number ready so that accurate information can be given. Prior authorization must be obtained from Grindmaster-Cecilware for all warranty claims.

This manual is also suitable for:

Crathco cs-2d-16Crathco cs-3l-16
