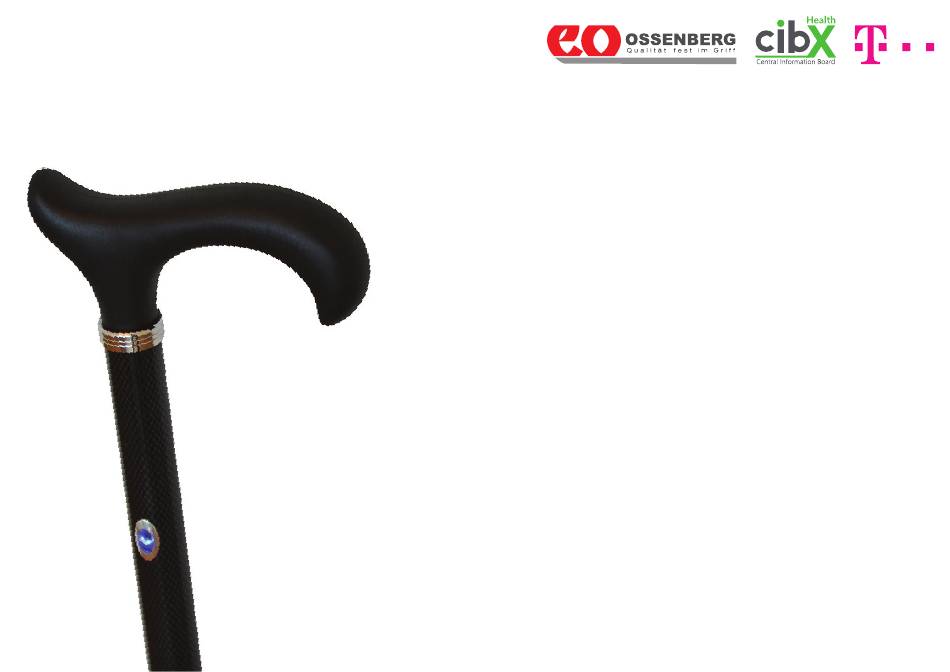

- Page 1 Instructions Manual SMARTSTICK - the linked up walking stick ...For safe mobility in an advanced age...
- Page 2 The linked up walking stick is a joint venture between Ossenberg GmbH and cibX GmbH and Deutsche Telekom AG. In addition to the brief instructions inside the packaging you will find all the important information and tips for use below. Please read the instructions manual carefully before using the product for the first time.
-
Page 3: Table Of Contents
Inhalt 1. Overview 5. Safety Instructions & Restrictions 2. Use on Use 2.1 Height adjustment 6. Storage & Care 7. Duration of use & disposal 2.2 Activation 8. Legal Bases 2.3 Power on/off 2.4 18-21 Charging the battery 8.1 Warranty & Liability 3. -
Page 4: Overview
1. Überblick Soft touch derby handle galvanized chrome ring Electronics module Button USB port Technical details Article no. 14604 Carbon look Handle Soft touch derby handle plastic tube Tube Carbon look Pushbutton plastic tube Rubber capv Innen-Ø 16mm workmanship 10-fold push button Adjustable in height von 80cm - 102,5cm Max. -
Page 5: Use
2. Use The SMARTSTICK is used by people with walking disabilities to compensate for reduced mobility and as a coordination aid when standing and walking. The integrated tracking and alarm module makes the SMARTSTICK particularly attractive for disoriented people suffering from dementia. Thanks to its simple functionality, the SMARTSTICK is also an ideal everyday aid for people with visual impairments. -
Page 6: Activation
2.2 Activation Before use your SMARTSTICK must be activated. There are two ways you can do this: by phone or online! You can activate your SMARTSTICK by telephone on weekdays from Monday to Friday. Please have your IMEI number, your activation code (see the last page of the brief instructions) and your e-mail address ready and call our hotline +49 (0)2571-1395555. -
Page 7: Power On/Off
2.3 Power On/Off To turn on, press the button (Fig. F) for one second. When the button lights up blue it is active, and automatically connects to the user portal. To turn off, briefly press the button twice. The red LED will flash twice, and the blue light will turn off once the stick is powered down. -
Page 8: Features
3. Features Thanks to its integrated tracking and alarm module, the SMARTSTICK has three functions. 3.1 Localization When active, the SMARTSTICK updates its location via GPS every 15 minutes to within a radius of 10 meters. The prerequisite for this is an adequate mobile phone connection, a clear view of the sky and being outside. -
Page 9: Geofences
100 meters. The upper limit is arbitrary. Since spring 2018, it is also possible to notify contact persons via push notification. More information about the SMARTSTICK app can be found at www.ossenberg-smartstick.de and www.cibx.de in due course. 4. The... -
Page 10: Dashboard
4.2 Dashboard After successful registration, the Dashboard opens. On the Dashboard you can see the location of the SMARTSTICK (drop-shaped symbol) and call up a brief overview by clicking on the symbol. The short overview contains the name, the last location message with date and time as well as the different modules for direct selection. -
Page 11: Devices
4.4 Devices Under "Devices" you will find all SMARTSTICKs that are registered to the user. If you select a SMARTSTICK, the following modules and information will open: •About •Map •Messages •Contact •Geofence 4.4.1 About In the information area you can give the SMARTSTICK an individual name and change the color of the card symbol. -
Page 12: Map
4.4.2 Map The Map module shows you the exact location of the selected SMARTSTICK. In addition, a history of the movements can be called up under "Show route". Select the desired period and the distance traveled will be displayed. 4.4.3 Notifications The current status messages are displayed here as an overview. -
Page 13: Contact
4.4.4 Contact In "Contact" enter the e-mail addresses of your contact person(s) in the "E- mail address" field and then select under "Message with" what kind of message you would like to receive. The following messages are available: Battery status, device powered off/on, geofence and alert! The number of contacts is unlimited. -
Page 14: Log Out
Move: When changing location, moving, vacation etc., it makes sense to adjust the radius of movement. To do this, click on "Move" and then follow the instructions in the header. If the selected area corresponds to your ideas, click once on the map to set the center of the circle. Then save your change with "Save". -
Page 15: Safety Instructions & Restrictions On Use
5. Safety Instructions & Restrictions on Use When using the SMARTSTICK, there are some safety precautions and usage restrictions • The grip of the SMARTSTICK on loose ground such as gravel, sand and leaves as well as on wet ground and icy areas is severely limited. •... - Page 16 •The SMARTSTICK must not be misused, such as levering Fig. D Fig. E or moving furniture (Fig. E). Nor as a wardrobe or other items (Fig. D). • No mechanical changes may be made to the SMARTSTICK. Otherwise, the safety of the SMARTSTICK can no longer be guaranteed for liability reasons.
-
Page 17: Storage & Care
6. Storage & Care Never store the SMARTSTICK near heat sources such as ovens, heaters or in the car! Please do not expose the SMARTSTICK to direct sunlight for a long period of time! Strong sun or heat will destroy the plastic •... -
Page 18: Duration Of Use & Disposal
Bases 8.1 Warranty and Liability You have purchased a high quality Ossenberg product. If, despite the highest quality standards in our production, a justified material defect occurs, Ossenberg has the right, within the framework of a 12- month warranty, to either repair the defective item or replace it with a defect-free subsequent delivery. -
Page 19: Data Collection
8.2 Data Collection The SMARTSTICK collects its data using GPS. This procedure does not constitute a deprivation of liberty but enables the nursing staff to determine whether the person concerned has left the home without permission. The function of alerting as a technical measure does not have a direct deprivation of liberty either. -
Page 20: Privacy & Data Storage
3 months. The assigned access data is only passed on by the owner himself. cibX GmbH, Ossenberg GmbH and Deutsche Telekom AG are not permitted to pass on the data to third parties without the consent of the owner. - Page 21 8.5 Cellular Notices Mobile network: : A SIM card from Deutsche Telekom AG is installed in the SMARTSTICK. Contractual commitment: : When purchasing a SMARTSTICK, there is no contractual commitment with Deutsche Telekom AG. Extension of the functions: The functions of the SMARTSTICK (alerting, localization and geofence) are all linked to mobile communications.
