Summary of Contents for HiSharp CT7131

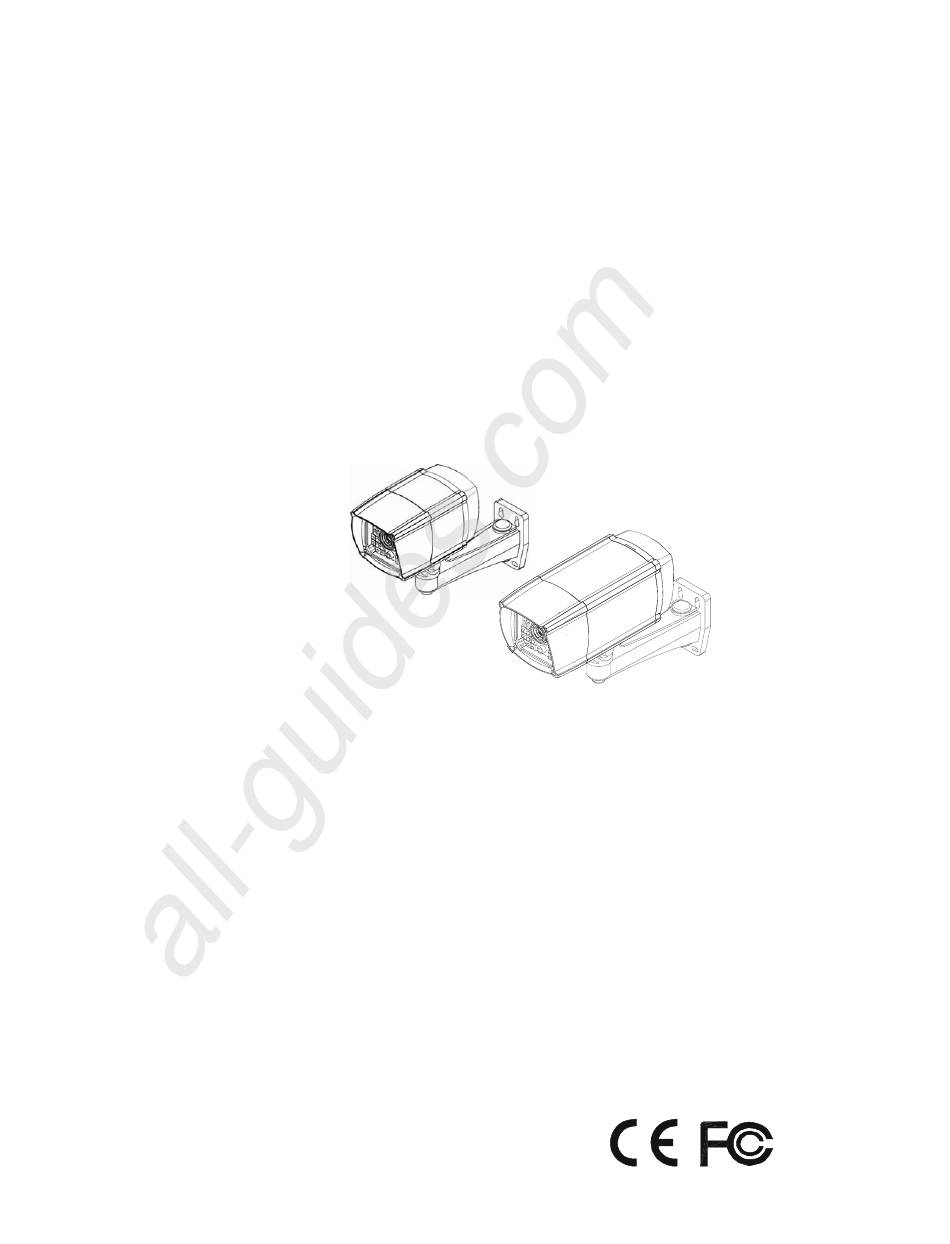

- Page 1 All manuals and user guides at all-guides.com Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice Long Distance Viewing Smart Shift IR Camera...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com CONTENT TABLE CONTENT TABLE…………………………………………..…………………….2 FCC STATEMENT…………………………………………..…………………….3 SAFETY PRECAUTIONS………………………………………....……….4 FUNCTION…………………………………………………………………..5 Power and Video Output Jack………………………………………………..6 Dip functions………………………………………………………………………7 OSD Menu…………………………………………………………………………8 SPECIFICATIONS …….…………………………………………………………14 DIMENSION………………………………………………………………………17... -
Page 3: Fcc Statement
All manuals and user guides at all-guides.com FCC STATEMENT WARNING This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation."... -
Page 4: Safety Precautions
All manuals and user guides at all-guides.com SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. -
Page 5: Function
All manuals and user guides at all-guides.com FUNCTION The camera includes auto white balance mode (AWB) auto capture and color temperature. The range is 2400°K~9600°K。 SENSOR：Auto Cell Device Sensor, the IR LED would on when night comes to make up lightness. IR LED would not on in the day, to reduce power consumption. -
Page 6: Power And Video Output Jack
All manuals and user guides at all-guides.com Power and video output JACK： DC JACK is for the power in, it is necessary to use a constant voltage adapter , F(BNC) JACK is for video output. Power and video output JACK： The plug is for the power in, it is necessary to use AC110V~220V, F(BNC) JACK is for video output. -
Page 7: Dip Functions
All manuals and user guides at all-guides.com DIP functions: Unscrew the back of the device, the DIP switches can be seen under the cover. The DIP switches are adjustable and waterproof. The details of the functions are shown below. 1. Make the camera on the bracket stable. 2. -
Page 8: Osd Menu
All manuals and user guides at all-guides.com OSD Menu 1. LENS menu：Select DC LENS model LENS BRIGHTNESS: 0 ~100 RETURN... - Page 9 All manuals and user guides at all-guides.com 2. EXPOSURE menu ：User can adjust electronic shutter speed, auto gain control, sensitivity-up level, back light compensation (BLC) &Highlight Suppression (HSBLC) adjust and Digital WDR. EXPOSURE SHUTTER FLK, 1/60 ~1/100000, X2~256 OFF, LOW, MIDDLE, HIGH SENS-UP OFF, AUTO, X2 ~ X256,Return HSBLC...
- Page 10 All manuals and user guides at all-guides.com 3. WHITE BAL menu： User can adjust white balance effect, the function like as Auto Tracking White balance (ATW), Auto White Balance adjust (AWB), Indoor or outdoor environment. WHITE BAL AWC SET MANUAL BLUE 0~100 RED 0~100 RETURN...
- Page 11 All manuals and user guides at all-guides.com 5. 3DNR menu： User can adjust 3-Digital Noise Reduction level to improve night environment effect. 3DNR LEVEL: 0 ~ 100 RETURN 6. SPECIAL menu： User can setup Camera title, Digital effect (Freeze, Mirror, V-FLIP, Rotate), Gamma ratio, Negative image effect, Motion alarm and area adjust, Privacy mask area adjust and language function.
- Page 12 All manuals and user guides at all-guides.com SPECIAL CAM TITLE ON/OFF D – EFFECT FREEZE On/Off MIRROR,V-FLIP,ROTATE D – ZOOM On/Off GAMMA 0.05~1.00 NEG. IMAGE On/Off MOTION AREA SELECT: AERA: 1 ~ 4 AREA DISPLAY: ON/OFF LEFT / RIGHT: 0 ~ 100 WIDTH: 0 ~ 100 TOP / BOTTOM: 0 ~ 100 HEIGHT: 0 ~ 100...
- Page 13 All manuals and user guides at all-guides.com 7. ADJUST menu：User can adjust camera sharpness and color parameter. ADJUST SHARPNESS: 0 ~ 31 BLUE: 0 ~ 100 RED: 0 ~ 100 RETURN 8. RESET menu：User can reset all camera setting back to factory default. RESET FACTORY RESET RETURN...
-
Page 14: Specifications
All manuals and user guides at all-guides.com TypeA – Specifications Model TypeA-1 TypeA-2 Pick up device 1/3" interline transfer CCD Total Pixels NTSC:811(H) x 508(V) / PAL:795(H) x 596(V) Effective Pixels NTSC:768(H) x 494(V) / PAL:752(H) x 582(V) Resolution 540TV lines Synchronizing 2:1 Internal System... - Page 15 All manuals and user guides at all-guides.com AC24V : 590mA DC12V : 530mA DC12V : 530mA AC110V :210mA ; AC240V : 120mA -10℃ ~ 50℃ (14℉ ~ 122℉ ) Operating Temperature -20℃ ~ 70℃ (-4℉ ~ 158℉ ) Storage Temperature Dimension 88.5(W) x 190(H) x 100(W) x 203(H) x 222(D)mm...
- Page 16 All manuals and user guides at all-guides.com Optional : Varifocal Optional: Lens:3.5 ~ 12mm / Varifocal Lens: 9 ~ 22 mm / F1.8(600TV lines) F1.6 DC12V±10％ / 1A Power Source DC12V ±10% / 1.5 A Power 6.5W Consumption Current 530mA 710mA -10℃...
-
Page 17: Dimension
All manuals and user guides at all-guides.com DIMENSION TypeA-1 TypeA-2... - Page 18 All manuals and user guides at all-guides.com TypeB-1 TypeB-2...
- Page 19 All manuals and user guides at all-guides.com TypeB with Power Box TypeB-1 with power box TypeB-2 with power box Power Box Pin defines: power + power — alarm + (N/A) alarm — (N/A) audio + (N/A) audio — (N/A) video + video —...
