Summary of Contents for J-Tech Digital JTECH-MV41V

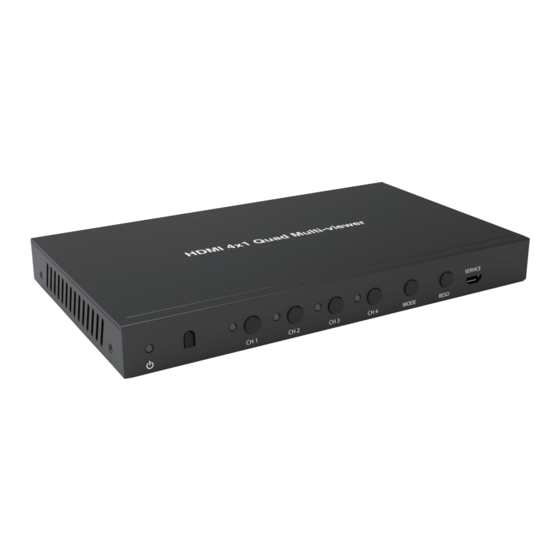

- Page 1 HDMI 4×1 Quad Multi-Viewer VER 1.2...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction The high performance 4×1 quad multi-viewer supports four routes HDMI high defination input contents be displayed on one HDMI screen and one VGA screen simultaneously. It supports analog audio output that can be selected different input source. Supports five multi-view display modes. Output resolution can be adjusted and supports the maximum up to 1920×1080@60Hz.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Resolutions the maximum up to 1920×1080P@60Hz Color Depth 8-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Analog Audio Formats LPCM2.0 44.1KHz 48KHz Human-body Model： ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections 4x HDMI Type A [19-pin female]...
- Page 5 5. Operation Controls and Functions 5.1 Front Panel SERVICE CH 1 CH 2 CH 3 CH 4 MODE RESO Number Name Function description The LED will illuminate green when the unit is POWER LED working, red when the unit is in standby mode. IR receiver window.
- Page 6 VGA output port, this port output signal is the VGA OUTPUT same as the HDMI output port. Analog audio output port. (Note: If the HDMI output is MODE 1, the audio output follows the video content. If the HDMI output is MODE 2/3/4/5, press AUDIO OUTPUT CH1/CH2/CH3/CH4 up to 5s to selecting audio output or using remote control to cyclical selection...
- Page 7 MODE 4: The quad multi-viewer devides two HD inputs with same size and display on a screen. The on-panel CH1/CH2 lights is on. In the CH1 window, you can press the CH1 button on-panel or using IR remote control the Source 1 button to cyclical selection four inputs source.
- Page 8 8. Application Example TV or Monitor Power Supply INPUT OUTPUT IN 1 IN 2 IN 3 IN 4 HDMI AUDIO DC 12V DVD or Blu-ray Player DVD or Blu-ray Player UHDTV 2.0 Speakers...
