Summary of Contents for Friax MPCG Genesis Plus

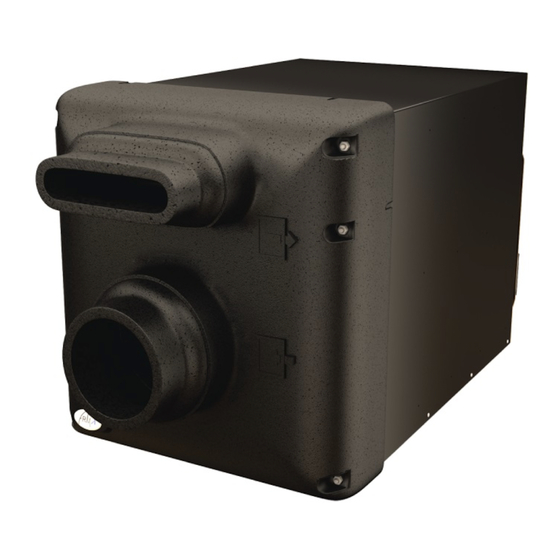

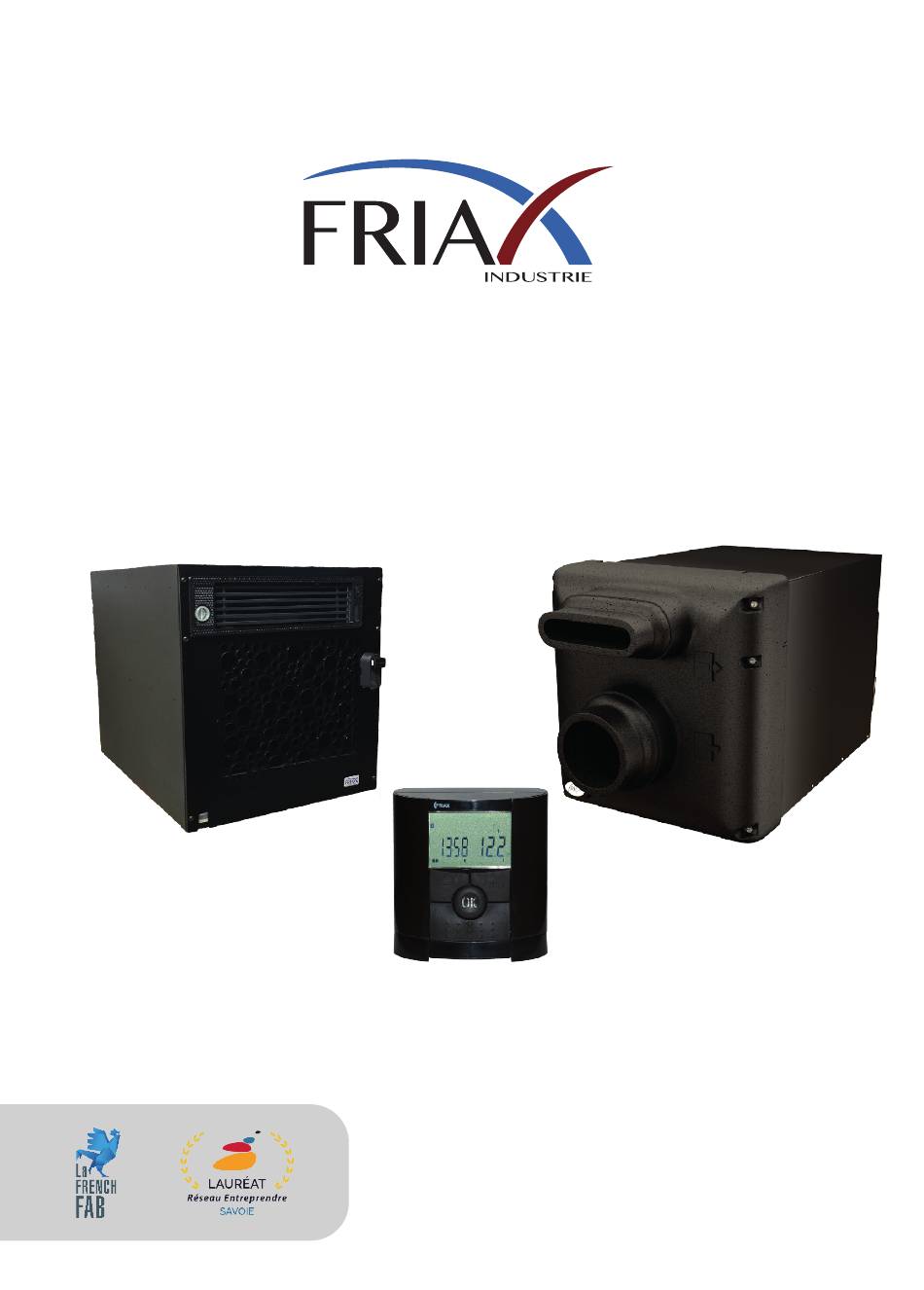

- Page 1 Installation Manual MPCG Genesis Plus & Vintage The FRIAX INDUSTRIE ranges are constantly evolving to always better protect the wine. The information in this document may change without prior notice to follow our quality commitment. EN-NT-MPCG-0222...
- Page 2 MPCG Avertissement Warning Genesis-Vintage This product contains hermetically sealed flammable R290 gas Fire risk / flammable materials Read the manual carrefully before using the device and keep it for futur reference. This symbol indicates that the installation manual should be read carrefully. This symbol indicates that a technician must handle this equipment in referring to the installation manual.
- Page 3 Your Friax air conditioner Genesis-Vintage THANK YOU for trusting Friax Industrie for the preservation of your wines. Our air conditioners are designed above all for the comfort of wine, but do not overlook your comfort. Once installed in the cellar, you will forget it...
- Page 4 Power Information Genesis-Vintage In order to select the right power for the Friax wine cellar air conditioner, it is essential to take into account the thermal balance of the room to be air-conditioned to avoid undersizing the device and air-conditioning a cellar which will be energy-intensive.
- Page 5 Technical data MPCG Genesis-Vintage R290 T cellar= +12°C - Text= 32°C SPC EVX2 Indicative volume to be conditioned 780** 1100** Cooling capacity Heating capacity 230V / 50Hz 230V / 50Hz Power supply Power absorbed / Intensity compressor 365W / 2.3A 508W / 3.2A W / A 4 / 4.4 5 / 4.4...
- Page 6 MPCG Dimensions Genesis-Vintage Water supply for humidifier on Vintage models Connection: 20/27 IN mounting 39.5 cellar exterior Condenser Drain connection Ø 16 Cellar interior Power supply / fuse holder / Evaporator on-off switch OUT mounting IN/OUT mounting 1021 1170...
- Page 7 MPCG Installation Genesis-Vintage Installation Con guration Mounting IN duct side condenser Installation through the wall - The air conditioner must be installed in an open place. - In order to have a perfect diffusion of the air, it is advised to install the air Côtes de réservation conditioner in height.
- Page 8 MPCG Installation Genesis-Vintage Con guration Mounting IN duct side condenser Setup 4, Setup 5, Angle outside the cellar Angle outside the cellar In some positions and depending on the support, it may be necessary to add reinforcements to prevent the device from tipping Con guration Mounting IN duct side condenser Installation on KS2M support inside the cellar.
- Page 9 MPCG Installation Genesis-Vintage Con guration Mounting OUT duct side evaporator Installation on KS2M support outside the cellar. Côté Cave Con guration Mounting IN - OUT ducting on the evaporator / condenser side Installation on KS2M support outside the cellar. Side Outside Cellar side...
- Page 10 MPCG Installation Genesis-Vintage After having chosen the installation con guration of your monobloc, you will need to install the front panel in black plexiglass according to your con guration, in IN - OUT con guration it will be of no use to you, in this case keep it aside.
- Page 11 MPCG Installation Genesis-Vintage KLPWSECU kit (vintage option). On vintage models you will need to connect a klpwsecu kit, on the Out and IN-OUT con gurations it will rst be necessary to put the connector E and the tube D on the device before xing the duct frontage. (Refer to page 15 for the cutting of the holes for the passage of the supply tube).
- Page 12 MPCG DUCTED FACADE INSTALLATION Genesis-Vintage Présentation. ø 200 mm ø 160 mm ø 200 mm ø 160 mm blowing / Blowing Ø 160 or/or 200mm suction / suction Ø 160 or/or 200mm...
- Page 13 MPCG DUCTED FACADE INSTALLATION Genesis-Vintage IN mouting Preparation of the ducted facade on the condenser side Cutout for passage of the cable from the power supply socket. Installation of the grid by clipping in the recess provided for this purpose.
- Page 14 MPCG IN Mounting Duct compatibility Genesis-Vintage Use the tables below to check the compatibility of your duct with the air conditioner: C: duct length and number of elbows compatible with the device used, If the selection is out of range, you have the option to: -Increase the diameter of the duct -Reduce the length of the duct -Reduce the number of elbows installed...
- Page 15 MPCG DUCTED FACADE INSTALLATION Genesis-Vintage OUT Mouting: Preparation of the ducted facade on the evaporator Probe extension Connect the RJ 12 socket (1) coming out of the monobloc to the female//female coupler (2). Connect the supplied 6M RJ12 extension (3) from the female//female coupler (2) to the probe.
- Page 16 MPCG DUCTED FACADE INSTALLATION Genesis-Vintage MAXIMUM connection length for the Evaporator probe: 6 m To avoid any problem with the operation of the air conditioner, it is essen- tial to bring the sensor back into the atmosphere of the cellar when moun- ting OUT.
- Page 17 MPCG Montage OUT Value of the fan speed Genesis - Vintage Thanks to the tables below find the fan speed of the cellar to adjust on your air conditioner when the one is sheathed: Depending on the total length of the sheath (Go and back) and the total number of elbow find the value to be set in the remote control menu of your air conditioner MPC Duct ø160mm on the evaporator...
- Page 18 MPCG Montage OUT Value of the fan speed Genesis-Vintage During stage II of the commissioning of your MPC Set the fan speed of the cellar with the value found in the tables on the previous page Remarks Access to Parameters Display Handling menu...
- Page 19 MPCG Wireless Remote Genesis-Vintage Power supply: 2 x 1.5V (AAA) batteries provided The remote control could be installed in any room. Its maximum range is 100m in a completely open area. This distance could be extremly reduced by thickness of walls and the location of the cellar.
- Page 20 MPCG Wireless remote Genesis-Vintage 7 8 9 Navigation key Navigation key Validation key Start key Menu key -Red : heating mode Stand by -Green : cooling mode Return Stop -Flashing red : Alarm Radio frequency signal Con guration type Temperature or humidity indicator (option) Key lock indicator Battery charge level indicator Crankcase heater indicator...
- Page 21 MPCG First Start Genesis-Vintage Step I - Starting functions Handling Views Remarks The unit starts. Start the unit with the Press If the icons remote control for 2 seconds xed or ashing are flashing the unit is in standby mode. The unit starts in heating or cooling mode.
- Page 22 Settings: temperature and humidity * MPCG Genesis-Vintage Step III - Set the cellar temperature and humidity Setting Handling Display Remarks Displays the current value Press of the setpoint tempera- ture For 2 seconds Flashing Change the value with Displays the value of the desired setpoint tempera- ture Flashing...
- Page 23 MPCG User menu Genesis-Vintage functions Handling Views Remarks The display alternately Display the tempera- shows the value of the Press ture or humidity of the temperature and humidity cellar (Only available on Vintage model) The fan switches to low Put the fan in the cellar Press speed for 10 minutes in silent mode...
- Page 24 MPCG User menu Genesis-Vintage Remarks Access to Parameters Display Handling menu Login with Change the value with Switches from 12 h Setting the time AM / PM display on display. 12 or 24 hours confirm with Login with Even if the screen Change the value with is blank Press Set hours...
- Page 25 MPCG User menu Genesis-Vintage Remarks Access to Parameters Screens Manipulations menu This parameter is set to 0 at the Login with factory. It may be modified only in the case where Change the value with there would be a Calibrating the difference temperature between the...
- Page 26 MPCG Alarms codes Genesis-Vintage Two types of errors may appear on the wireless remote control. Type 1 alarm : The Green and red LED on the front panel flashes. Type 2 alarm : The red LED on the front panel flashes. Contact your hardware vendor Description Type of error...
- Page 27 MPCG Re-pairing / Reset controller MPCG Genesis-Vintage Be careful before this step make sure that all electrical elements, wires, probes etc. are properly connected. Without this, the functions of the probes and the motors would not be taken into account. Ré-Appairer le régulateur avec la télécommande Réglages Manipulations...
- Page 28 MPCG Wiring diagram Genesis-Vintage (Example) 16 A max Yellow Yellow AUX (light) PWM2 PWM1 blue blue White White TAC2 TAC1 On Version Vintage T° POWER Probe T°+HGR cond 5 x 20 10A GT MAXIMUM length for connecting the ambiante probe: 5m Temperature &...
- Page 29 Warning Do not try to dismantle the system yourself: dismantling the system as well as processing the refrigerant, oil and other components must be performed by a quali ed installer, in accordance with applicable local and national regulations. Used units and batteries must be treated in specialized repair, reuse facilities or recycling.
- Page 30 MPCG Entretien Genesis-Vintage The following maintenance operations repeated every 6 months will allow you to maintain the optimal performance of your appliance and thus maintain the ideal environment for the conservation and aging of your bottles.. WARNING Before any maintenance operations, stop the device with the remote control then cut off the power supply on the main circuit breaker to avoid any risk of electrocution.
- Page 31 January, 4th 2020 Managing Director Eric JACQUOT FRIAX INDUSTRIE - RCS CHAMBERY 477 811 517 ZAC de la Prairie – F73420 VOGLANS Tel : +33 (4) 79 34 91 84 – Fax : +33 (4) 79 34 91 85 – info@friax.fr...
- Page 32 Installation Installation Expert Français du vin www.friax.fr Découvrez notre gamme de rangement pour la cave ! www.visiorack.com...
