Blue Electric Commercial Cotton Candy Machine
Instruction Manual
SKU: CANDY-V002B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/candy-v002b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo CANDY-V002B
Summary of Contents for Vivo CANDY-V002B
- Page 1 Blue Electric Commercial Cotton Candy Machine Instruction Manual SKU: CANDY-V002B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/candy-v002b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Data
WARNING: IMPORTANT SAFETY INFORMATION READ AND FOLLOW ALL SAFETY REQUIREMENTS KEEP THIS MANUAL IN A SAFE AND DRY PLACE FOR FUTURE REFERENCE If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS MODEL CANDY-V002B DIMENSION 930 x 520 x 860mm HEATING POWER 1000 W MOTOR POWER 80 W ELECTRIC VOLTAGE 110 V FREQUENCY 60 Hz YIELD 1 PER 30 SEC FUSE 15A 250V (F15) PACKAGE CONTENTS A1 (x2) A2 (x1) -
Page 4: Machine Structure
MACHINE STRUCTURE ASSEMBLY STEPS STEP 1 Remove all x6 M5x30 screws (A5) from the Beams (A4). Assemble one beam to each side of wheel leg (A2) using x2 M5x30 screws (A5). Connect Legs (A3) to assembly using x2 M5x30 screws (A5) through the upper holes. - Page 5 STEP 4 Flip finished cart over and place (B7) machine on top with drawer facing to the side. Secure with all (B4) M5x8 cart screws. STEP 5 Press both (B1) handle blocks onto (B2) handle pipe. Secure to (B6) shelf using four (B9) M5x10 screws and four (B8) M5 nuts.
-
Page 6: Care And Maintenance
OPERATING INSTRUCTIONS STEP 1 Turn on the power switch. Let the machine run for 1-2 minutes to allow the motor and drive belt to warm up for best performance. The machine may vibrate while running; this is normal and will not affect operation. NOTE: Machine has a built in safety switch and will not turn on if the bowl is not fully mounted. -
Page 7: Troubleshooting
Keep water spinning through until color inside is closer to the bare aluminum again. Allow machine to cool, and wipe down head with a damp cloth to clean off excess sugar. Stainless steel pan may be cleaned with warm soapy water. If the inside of the head needs to be cleaned, remove the four screws on top, then remove top plate. - Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
Need help?
Do you have a question about the CANDY-V002B and is the answer not in the manual?
Questions and answers

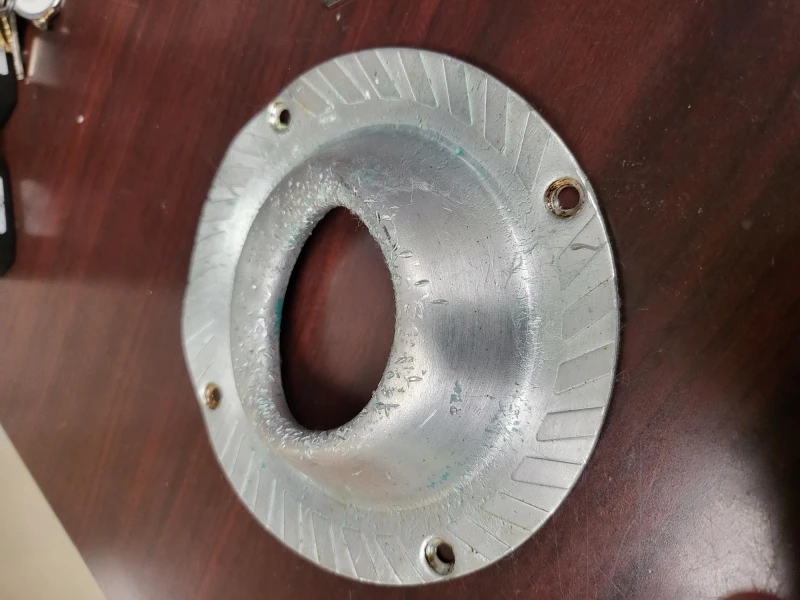

I need to order a heating head for my machine. how do I go about doing this?
