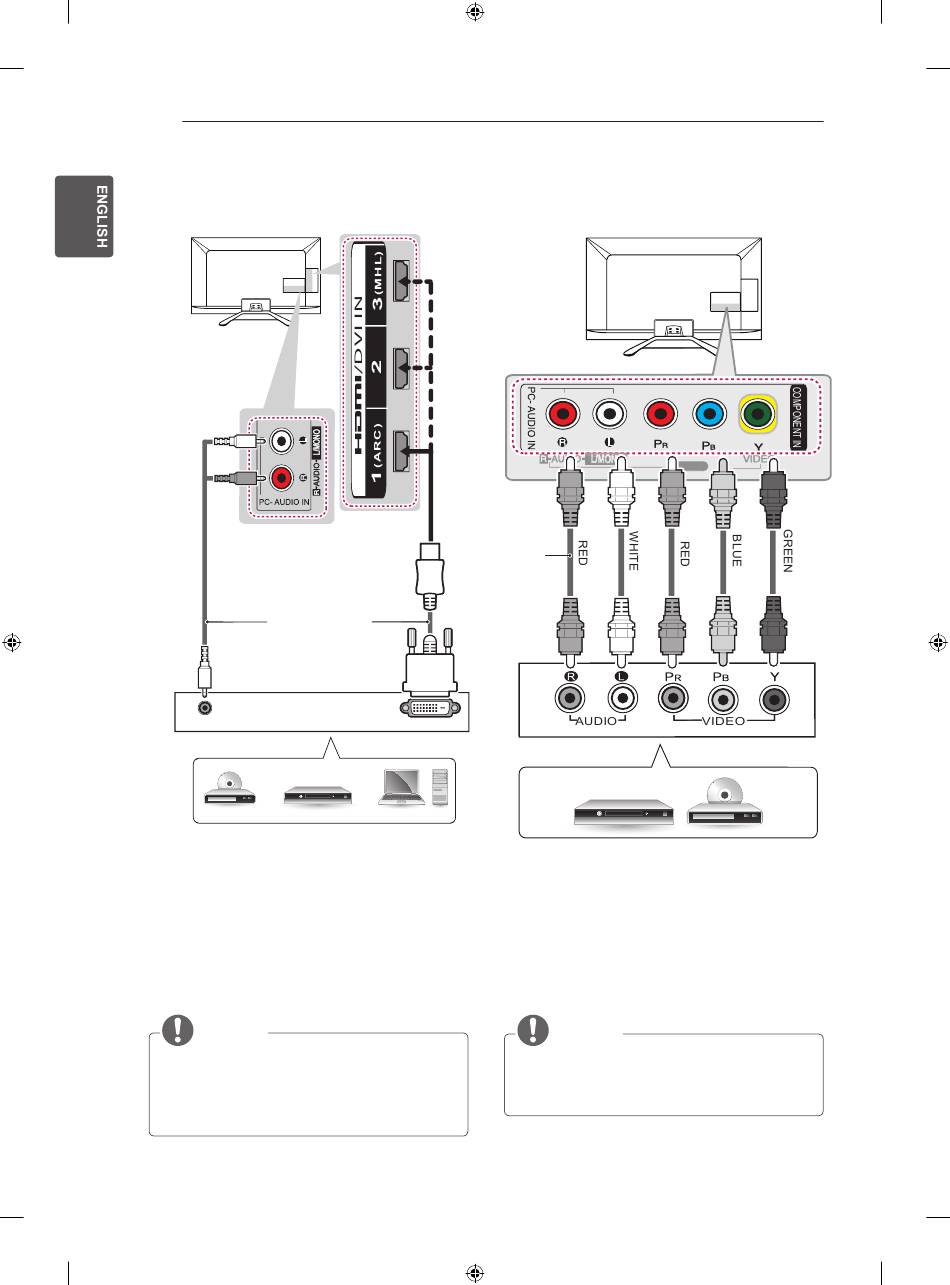

dVI to HdMI connection

WHITE
RED
(*Not Provided)
AUDIO OUT
DVD/ Blu-Ray / HD Cable Box / PC
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
y Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in use.
y When using the HDMI/DVI cable, only Single
link is supported.

Component connection

(*Not
Provided)
AUDIO
DVI OUT
DVD / Blu-Ray / HD Cable Box
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
NOTE
y If cables are not installed correctly, it could
cause this image to display in black and
white or with distorted colours.
L
AV 2 IN
VIDEO
