- Page 1 USB Docking Station USB-C Triple 4K Docking Station with PD User Manual V1.0...
- Page 2 USB Docking Station User Manual No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission 15775 Gateway Circle, Tustin, CA.
-
Page 3: Table Of Contents
USB Docking Station User Manual Table of Contents Overview Package Contents System Requirements Product Overview Software Installation Hardware Installation and Application Diagram Appendix Page 3... -
Page 4: Overview
USB Docking Station User Manual Overview Congratulations on becoming the owner of the USB-C Triple 4K Docking Station. The docking station is designed for extra connectivity demands for your workplace. This docking station allows user to extend their computer device’s connection to more USB peripherals/Ethernet/audio/video. Using the PD Charging Technology, the user can charge their laptop using the upstream charging USB-C port. -
Page 5: Product Overview

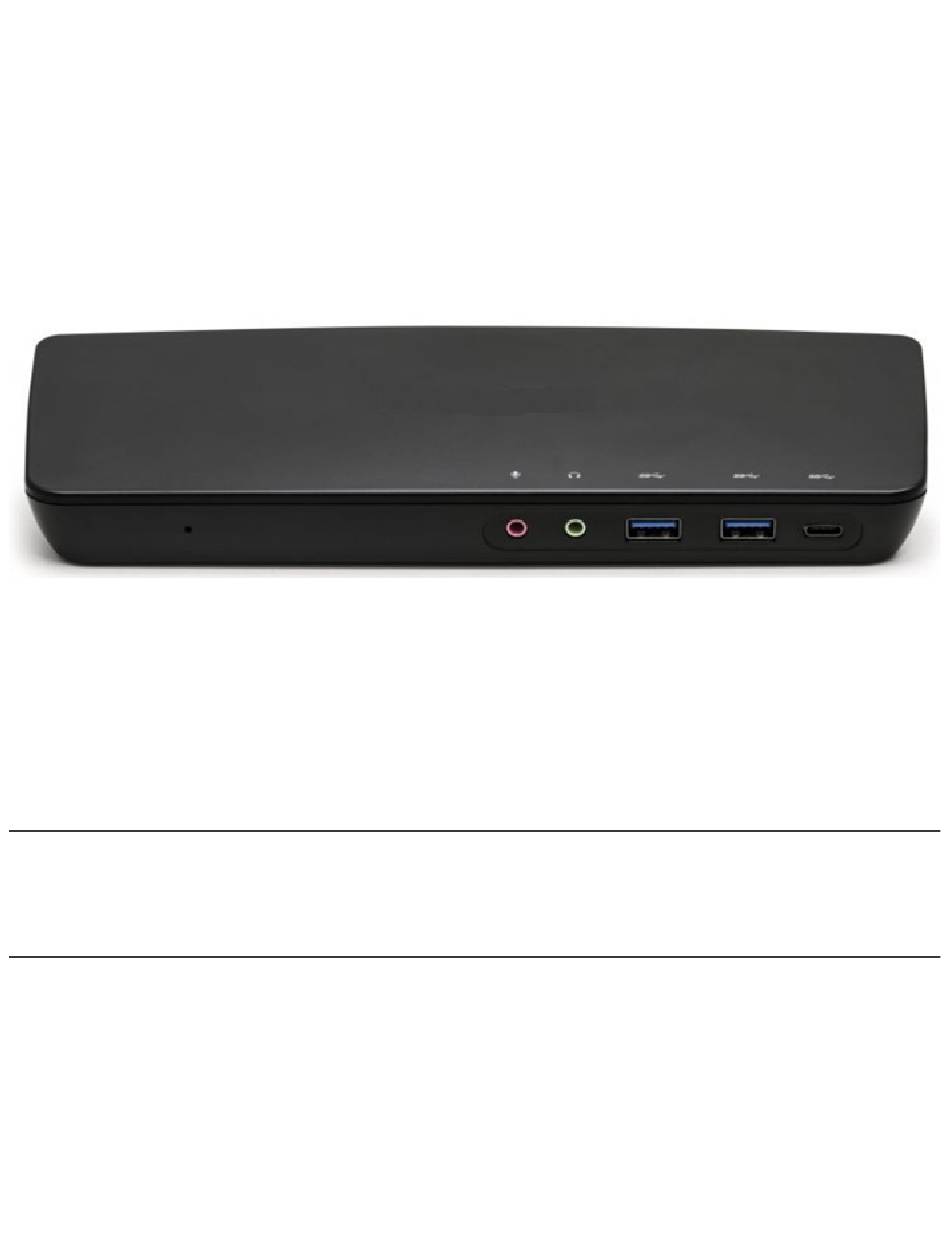

USB Docking Station User Manual Product Overview Front A. Power LED Indicator D. USB-A 3.0 Port (BC1.2 charging port w/ max 1.5A) B. 3.5 mm microphone input E. USB-A 3.0 Port C. 3.5 mm headphone output F. USB-C (for data transfer only) Rear G. -
Page 6: Software Installation
USB Docking Station User Manual Software Installation Before hardware installation, please download the latest drivers from the DisplayLink support website at www.displaylink.com/support. • For Windows OS, run the “DisplayLink USB Graphics Software for Windows 8.4 M0.exe”, it will start installing the Displaylink Driver automatically •... -
Page 7: Hardware Installation And Application Diagram
USB Docking Station User Manual Hardware Installation and Application Diagram Hardware Installation 1. Plug in the AC to DC Power Adapter to the appropriate electrical outlet (Power Switch off / LED off). Connect the AC power adapter to the DC input on the docking station. 2. -
Page 8: Appendix
USB Docking Station User Manual Appendix DisplayLink Driver Installing Instruction downloads.displaylink.com/manuals/DisplayLinkUserManual7.1.pd Support & Knowledge Base support.displaylink.com Page 8...
