Summary of Contents for FastCraft 76334-1

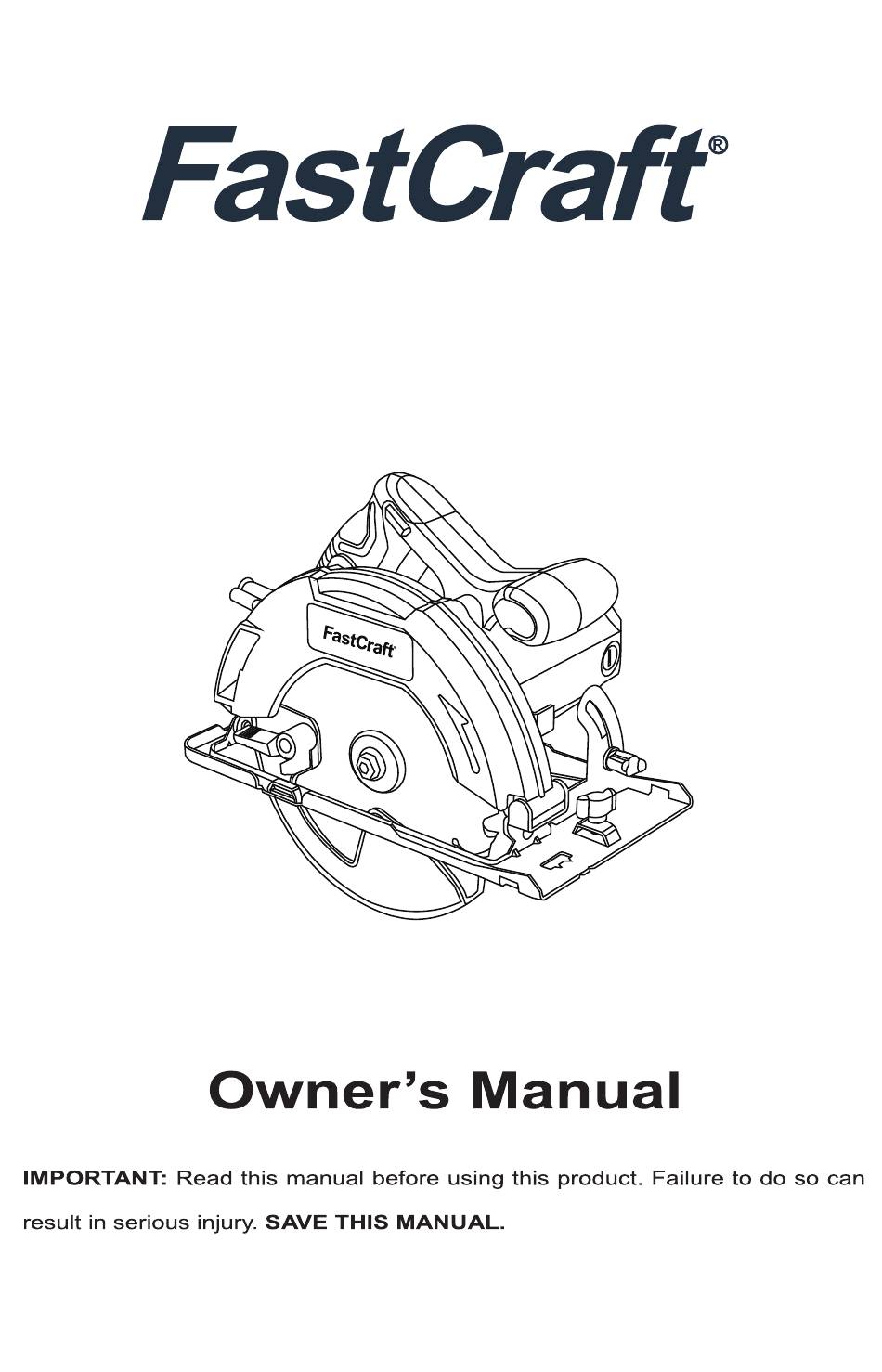

- Page 1 Circular Saw Model 76334-1...
- Page 3 General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″ power tool ″ in the warnings refers to your mains-operated (corded) power tools or battery-operated (cordless) power tools.
- Page 4 :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB) 3.Personal Safety a.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
-
Page 5: Additional Safety Rules For Circular Saw
power tool accidentally. d.Store idle power tools out of the reach of children and do not allow persons unfa- miliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e.Maintain power tools. - Page 6 where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator. 6) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
- Page 7 complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. 3）When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.
- Page 8 blade to stop after switch is released. Additional safety instructions for all saws with riving knife 1）Use the appropriate riving knife for the blade being used.For the riving knife to work, it must be thicker than the body of the blade but thinner than the tooth set of the blade.
- Page 9 11）Prior to blade replacement, adjustment or other maintenance, always unplug the tool. 12）Never use any abrasive wheel unless a tool is specially designed for abrasive wheels. 13）Do not use a blade with thinner blade body than the riving knife and tooth set. 14）The riving knife must be adjusted not more than 5 mm from the blade tooth circle, and the tooth length below the lower edge of the riving knife shall not be bigger than 5 mm.
-
Page 10: Description Of The Tool
DESCRIPTION OF THE TOOL PERATING CONTROL The power tool is intended for cu ng wood lengthways and crossways in straight Use dust mask. Dust which is injurious to health can be lines and at bevel angles of up to 45° on a firm surface. generated when working on wood and other materials. - Page 11 7.OPERATION Prior to assembly and adjustment always unplug the tool. 1、Depth of cut adjustment 1）Loosen the depth adjustment knob (11). 2）Move the base plate (6) to obtain the correct depth of cut. 3）Tighten the depth adjustment knob (11).For optimal results, allow the saw blade to protrude from the workpiece by about 3 mm.
- Page 12 Install the blade ( 5 ) according to the reverse procedure of dismantling the wheel blade. When installing the blade, make sure that the direction indicated by the arrow on the blade surface is the same as the direction indicated by the arrow on the wheel cover.
- Page 13 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain,damaging your health and well-being 11.After sales For questions about this or any other FastCraft Products, please email us: FastCraft @nyclcompany.com. .11.
