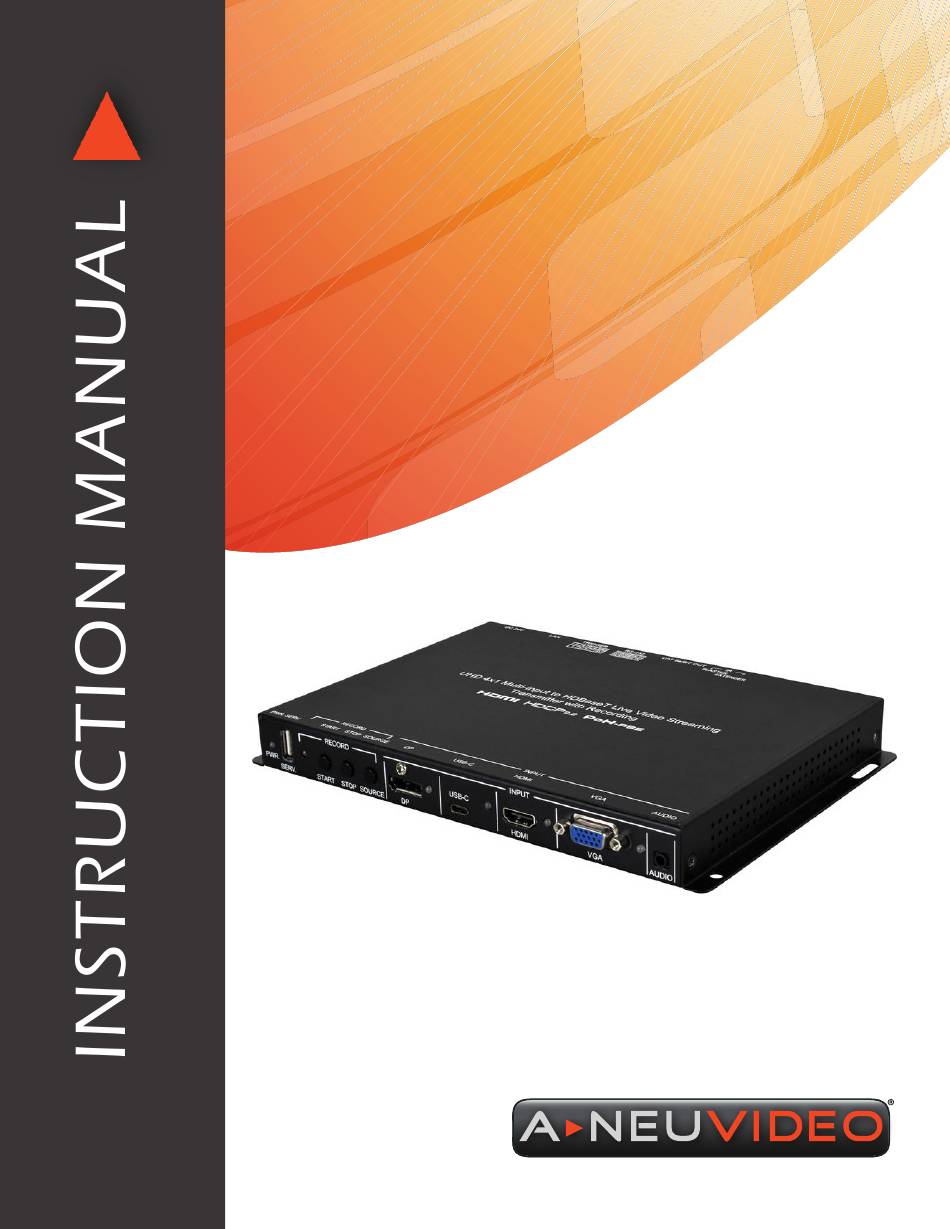

- Page 1 ANI-28UHDDA 4x1 Multi-Input to HDBT Live Video Streaming Transmitter w/ Recording A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
NEUVIDEO TABLE OF CONTENTS CONTENTS SAFETY PRECAUTIONS PACKAGE CONTENTS ..............1 INTRODUCTION / FEATURES / APPLICATIONS ....2 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. SPECIFICATIONS / SYSTEM REQUIREMENTS ....3 Please keep the following in mind as you unpack and install this OPERATION CONTROLS &... -
Page 4: Introduction / Features / Applications
NEUVIDEO INTRODUCTION & FEATURES INTRODUCTION The ANI-41STREAM Video Streaming Transmitter with Recording makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. -
Page 5: Specifications / System Requirements
NEUVIDEO SPECIFICATIONS & SYSTEM REQUIREMENTS Specifications • HDMI Bandwidth: 10.2Gbps • DisplayPort Bandwidth: 10.2Gbps • USB-C Bandwidth: 10.2Gbps • VGA Bandwidth: 165MHz • HDBaseT™ Bandwidth: 10.2Gbps • Input Ports: • HDMI (Type-A) • DisplayPort • USB (Type-C) • VGA (HD-15) •... -
Page 6: Operation Controls & Functions
NEUVIDEO Operation controls & Functions Front Panel PWR. LED: This LED will illuminate to indicate the unit is on and receiving power. SERV. Port: Attach a standard USB thumb drive or external hard drive for storage of recorded video. (Optional) Note: Storage media must be formatted as FAT32 or exFAT. - Page 7 NEUVIDEO Operation controls & Functions BACK Panel IR EXTENDER PORT: Connect to an IR Extender to receive IR control signals and extend them to devices connected to the other end of the HDBaseT™ connection. Ensure that the remote being used is within direct line-of-sight of the IR Extender. IR BLASTER PORT: Connect to an IR Blaster to transmit IR signals from the other end of the HDBaseT™...
-
Page 8: Rs-232 Pinout & Defaults
NEUVIDEO IR Cable Pinouts / RS-232 Pinout & Defaults IR Cable Pinouts RS-232 Pinout & Defaults Serial Port Default Settings (Unit Control) Baud Rate 19200 Data Bits Parity Bits None Stop Bits 1 Flow Control None RS-232 PORT 1 (UNIT CONTROL) RS-232 PORT 2 (BYPASS) -
Page 9: Webgui Control
NEUVIDEO WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”... - Page 10 NEUVIDEO WebGUI Control Live Tab This tab provides viewing access to the first local video stream channel (of 4 channels total) generated by the unit. The video source can be selected here and the stream resolution, framerate and bitrate is also displayed. At the bottom of the page, a connection address for local video stream channel 1 is displayed in the format: “rtsp://xxx.xxx.xxx.xxx/live/ch1/h264_aac”...
- Page 11 NEUVIDEO WebGUI Control Video Switch Tab This tab provides input routing control as well as control over input and output names, and OSD Text settings. 1. Auto Source Switch: Enable or disable the automatic input switching feature of this unit. When enabled, the unit will automatically switch to the most recently connected/detected input.
-
Page 12: Fhd 2Ch
NEUVIDEO WebGUI Control EDID Setting Tab This tab provides the option of four standard EDIDs, one sink sourced EDID and four customer uploaded EDIDs that can be assigned to the digital input ports. The names of the four customer uploaded EDIDs can changed if desired. Note: The EDID used by the VGA port is fixed, and cannot be changed. - Page 13 NEUVIDEO WebGUI Control Record Setting Tab This tab provides access to the settings and controls for configuring the channel 1 stream (the same stream viewed on the “Live” tab) and making a recording of it to a local or network storage location. When recording is enabled, the channel 1 video stream is saved as a *.mp4 file, encoded with the H.264 codec, to one of three possible target destinations: USB storage, network storage using NFS, or network storage using CIFS.
- Page 14 NEUVIDEO WebGUI Control • Folder: Enter a valid share name on the target server. The share name cannot contain spaces or special characters. This is where the recording folder structure and video files will be created. After entering the information, press the “Save” button. Note: The target folder on the NFS server must, at a minimum, provide anonymous read, write and delete permissions.
- Page 15 NEUVIDEO WebGUI Control Note: Time synchronization occurs automatically when the unit is first powered on, and every 24 hours afterwards, if an NTP server has already been defined. Synchronization requires a live connection to the internet. • Server Time: Shows the unit’s current time and date. 2.
- Page 16 NEUVIDEO WebGUI Control User Config Tab The WebGUI and Telnet username/password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed. The “Administrator” user has access to all tabs and can change all settings. The “General User” only has access to the “Live” tab to allow easy remote video stream viewing.
- Page 17 NEUVIDEO WebGUI Control 3. Download Current Configuration: The current system configuration, including routing and settings, may be saved as an XML file to a PC. Click the “Download” button to save the current system configuration to your local PC. 4. Restore Configuration: Previously saved system configurations may be restored from a saved XML file. Click the “Choose File” button to locate the saved XML file, then click the “Restore”...
-
Page 18: Telnet Control
NEUVIDEO Telnet Control / Serial & Telnet Commands Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/laptop are connected to the same active network. To Access Telnet Click START, type “cmd” in the search field and press ENTER. Windows 7 Windows 10 1. - Page 19 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS SET SYSTEM REBOOT Reboot the unit. GET FW VER Show the unit’s current firmware version. GET COMMAND VER Show the unit’s current command version. GET MAC ADDR Show the unit’s MAC address.
- Page 20 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS SET IN N1 NAME N2 Set the name of the specified input. Available values for N1: [DisplayPort input] [HDMI input] [USB-C input] [VGA input] N2 = {Name} [8 characters max] GET IN N1 NAME ...
- Page 21 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET IN N1 TYPE LIST List the port type of all inputs on the unit. Available values for N1: [DisplayPort input] [HDMI input] [USB-C input] [VGA input] GET OUT A TYPE LIST List the port type of all outputs on the unit.
- Page 22 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS SET OUT A BANNER FONT COLOR N1 Set the color of the font used by the OSD banner. Available values for N1: BLACK [Black text] MAGENTA [Magenta text] WHITE [White text] YELLOW [Yellow text] [Red text]...
-
Page 23: Show The Edid Currently Being Used On The Specified Input
NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS GET SINK A EDID INFO Show English readable details from the EDID of the display connected to the output. Set the EDID to use on the specified input. SET IN N1 EDID N2 Available values for N1: [DisplayPort input] [USB-C input]... - Page 24 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS SET RECORD MEDIA PATH N1 Set the recording target media device. Available values for N1: AUTO [Automatic selection] [Record to NFS] [Record to USB] CIFS [Record to CIFS] GET RECORD MEDIA PATH Show the currently selected recording target media device.
-
Page 25: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM... -
Page 26: Video Specifications
NEUVIDEO Video Specifications Video Inputs INPUT INPUT SUPPORTED RESOLUTIONS SUPPORTED RESOLUTIONS (HZ) (HZ) HDMI USB-C HDMI USB-C 320x240@25/30/50/60 1600x900p@60RB 720x400p@70/85 1600x1200p@60 640x480p@25/30/50 1680x1050p@60 ... - Page 27 NEUVIDEO Video Specifications Video OUTputs OUTPUT OUTPUT SUPPORTED RESOLUTIONS SUPPORTED RESOLUTIONS (HZ) (HZ) HDBASET™ H.264 STREAM HDBASET™ H.264 STREAM 1600x900p@60RB 320x240@25/30/50/60 1600x1200p@60 720x400p@70/85 1680x1050p@60 640x480p@25/30/50 1920x1080i@50/60 640x480p@60/72/75/85 1920x1080p@24/25/30 25/30 720x480i@60 ...
-
Page 28: Audio Specifications
NEUVIDEO AUDIO SPECIFICATIONS Digital Audio HDMI, DISPLAYPORT, USB-C INPUT / HDBASET™ OUTPUT LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 BITSTREAM (HDBASET™ BYPASS ONLY) Supported Formats Standard & High-Definition STREAMING OUTPUT LPCM Max Channels 2 Channels Sampling Rate (kHz) 44.1, 48... -
Page 29: Cable Specifications
NEUVIDEO CABLE SPECIFICATIONS 1080P 4K30 4K60 CABLE LENGTH 8-BIT 12-BIT (4:4:4) 8-BIT (4:4:4) 8-BIT High Speed HDMI Cable HDMI Input DisplayPort Cable DisplayPort Input USB-C Cable USB-C Input VGA Cable VGA Input Ethernet Cable CAT5e/6 CAT6A/7 Bandwidth Category Examples: 1080p (FHD Video) •... -
Page 30: Hdbaset™ Features
NEUVIDEO HDBASET™ FEATURES HDBASET™ FEATURE SET TRANSMITTER Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported... - Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 32 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
