VA246 Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus VA246 Series

Summary of Contents for Asus VA246 Series

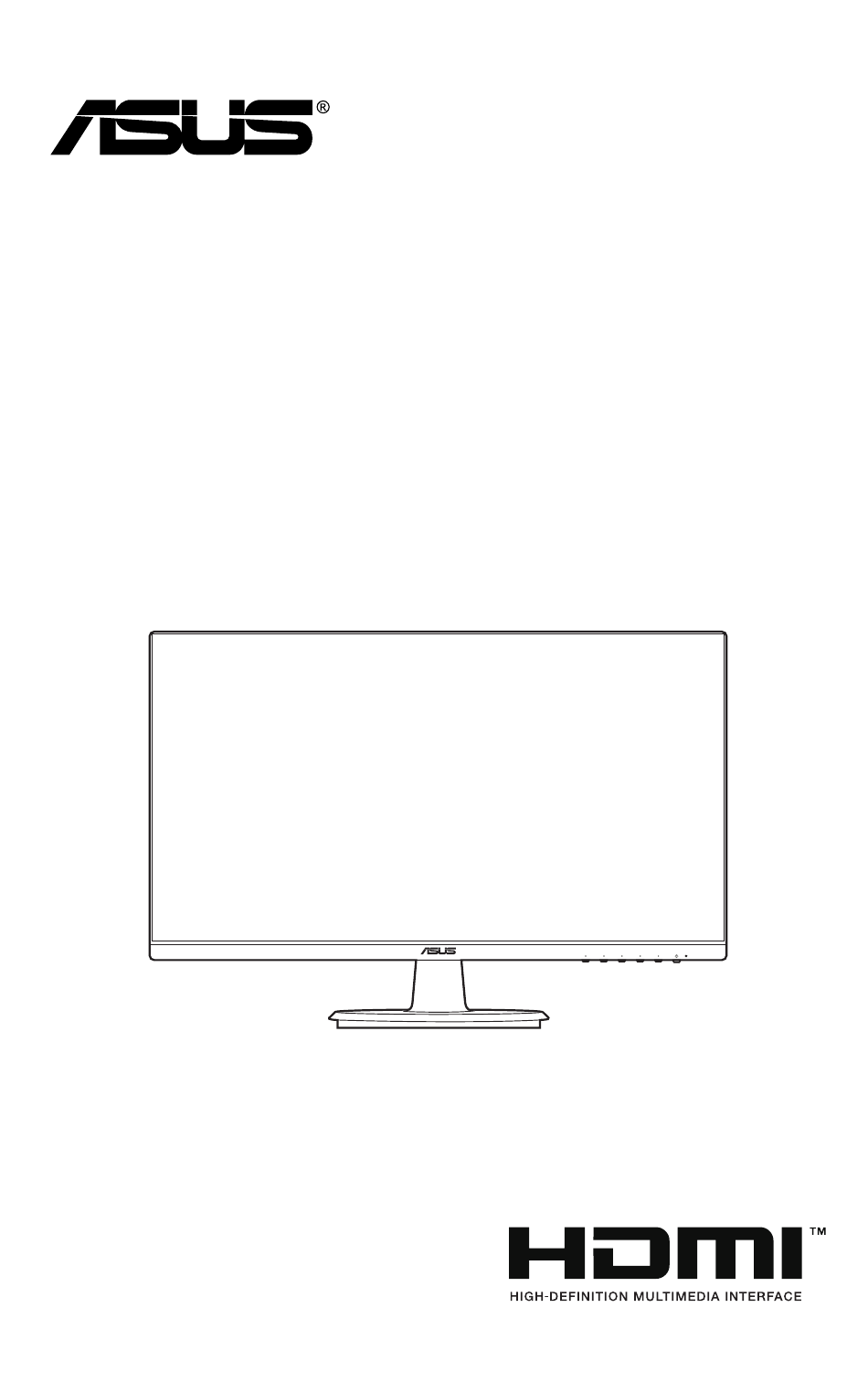

  • Page 1 VA246 Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents ...................... iii Notices ......................iv Safety information ..................vi Care & Cleaning ..................vii Takeback Services ..................viii Product information for EU energy label ..........viii TCO certified ....................ix Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............

  • Page 4: Notices

    All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
  • Page 5 NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating system. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 6: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 7: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 8: Takeback Services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 9: Tco Certified

    TCO certified A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 11: Welcome

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 12: Monitor Introduction

    Monitor introduction 1.3.1 Front view Menu Close Input Select Brightness Blue Light Filter Power button/power indicator • Turns the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Menu button: •...

  • Page 13: Back View

    AC-IN port. This port connects the power cord. HDMI port. This port is for connection with an HDMI compatible device. VGA port. This 15-pin port is for PC VGA connection. Kensington lock slot. Control buttons. ASUS VA246 Series LCD Monitor...
  • Page 14 Chapter 1: Product introduction...

  • Page 15: Assembling The Monitor Arm/Base

    Fix the base to the arm by rotating the base until it fits into place. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Hinge screw size: M4 x 8 mm. ASUS VA246 Series LCD Monitor...

  • Page 16: Detaching The Arm/Base (For Vesa Wall Mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the base (Figure 1). Remove the hinge cover (Figure 2).

  • Page 17: Adjusting The Monitor

    Hold the stand to prevent the monitor from falling when you change its angle. • The recommended adjusting angle is +23 to -5˚. -5°~+23° (Tilt) It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS VA246 Series LCD Monitor...

  • Page 18: Connecting The Cables

    When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. Turning on the monitor Press the power button .

  • Page 19: Osd (On-Screen Display) Menu

    Highlight the desired sub-menu function and press to activate it. Press to change the settings of the selected function. To exit and save the OSD menu, press repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS VA246 Series LCD Monitor...

  • Page 20: Osd Function Introduction

    This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VA246 Splendid Standard Mode HDMI 1920 x 1080 @ 60Hz...
  • Page 21 High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome) when the user adjusts blue light filter bar to maximum level. ASUS VA246 Series LCD Monitor...
  • Page 22 This function is not available when Reddish or Yellowish is selected in the Skin Tone menu. Color Set a desired color setting from this menu. ASUS VA246 Color Standard Mode HDMI 1920 x 1080 @ 60Hz Br i g ht n e ss...
  • Page 23 VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • AMD FreeSync (HDMI only): Allows an AMD FreeSync supported* graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.
  • Page 24 Auto Adjust.: Automatically adjusts the image to its optimized position, clock, and phase (for VGA mode only). Input Select In this function, you can select your desired input source. ASUS VA246 Input Select Standard Mode HDMI 1920 x 1080 @ 60Hz...
  • Page 25 Alignment Grid 1 Alignment Grid 2 Alignment Grid 1 Alignment Grid 2 Paper size: You can view the documents in real size on the screen. Letter Letter ASUS VA246 Series LCD Monitor...
  • Page 26 Power Key Lock: Enables or disables the power key. • All Reset: “Yes” allows you to restore the default settings. Shortcut Defines the functions for Shortcut 1 and 2 buttons. ASUS VA246 Shortcut Standard Mode HDMI 1920 x 1080 @ 60Hz Sh o rtcu t 1 Sh o rtcu t 2 •...
  • Page 27 When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Blue Light Filter, Splendid, Brightness, Auto Adjust, Contrast, Color Temp., GamePlus, QuickFit, Rest Reminder, Color Augmentation. ASUS VA246 Series LCD Monitor...

  • Page 28: Specifications Summary

    3.2 Specifications summary Panel Type TFT LCD Panel size 23.8” (16:9, 60.45 cm) wide screen Max. Resolution 1920 x 1080 Pixel pitch 0.2745 mm Brightness (Typ.) 250 cd/m Contrast Ratio (Typ.) 3000:1 Contrast Ratio (Max.) 100,000,000:1 (with ASCR on) Viewing angle (H/V) CR>10 178˚/178˚...
  • Page 29 ISO9241-307, PC-Recycle, UkrSEPRO, ICES-3, EU Energy Label, CU, CCC, CEL, KC, KCC, E-Standby, CEC, EPEAT (Bronze), TCO, Energy Star *Specifications are subject to change without notice. **Measuring a screen brightness of 200 nits without audio/USB/Card reader connection. ASUS VA246 Series LCD Monitor 3-11...

  • Page 30: Outline Dimensions

    Outline dimensions 65.11 [2.57] 50.92 [2.01] 66.51 [2.62] 80.70 [3.18] 390.41 [15.38] 323.55 [12.75] 205.01 [8.08] 296.46 [11.68] 6.34 [0.25] 20.75 [0.82] 148.23 [5.84] 18.83 [0.74] 14.31 [0.56] 19.67 [0.77] 104.56 [4.12] 100.00 [3.94] 3-12 Chapter 3: OSD (On-Screen Display) menu...

  • Page 31: Troubleshooting (Faq)

    • Perform All Reset via OSD. • Adjust the R/G/B color settings or select the Color Temperature via OSD. Screen image is blurry or fuzzy • Adjust the Phase and Clock settings via OSD. ASUS VA246 Series LCD Monitor 3-13...

  • Page 32: Supported Operating Modes

    Supported operating modes Resolution Vertical Frequency (Hz) Horizontal Frequency (KHz) 640x480 59.94(N) 31.47(N) 640x480 66.66(N) 35.00(N) 640x480 72.82(N) 37.87(N) 640x480 75.00(N) 37.5(N) 720x400 70.08(P) 31.47(N) 800x600 56.25(P) 35.16(P) 800x600 60.32(P) 37.88(P) 800x600 72.12(P) 48.08(P) 800x600 75.00(P) 46.86(P) 832X624 74.55(P/N) 49.72(P/N) 1024x768 60.00(N) 48.36(N)
  • Page 33 480p-60Hz 720p60 1280 x 720 74.25 720p-60Hz 576p 720 x 576 31.25 576p-50Hz 720p50 1280 x 720 37.5 74.25 720p-50Hz 1080p60 1920 x 1080 67.5 148.5 1080p-60Hz 1080p50 1920 x 1080 56.25 148.5 1080p-50Hz ASUS VA246 Series LCD Monitor 3-15...
