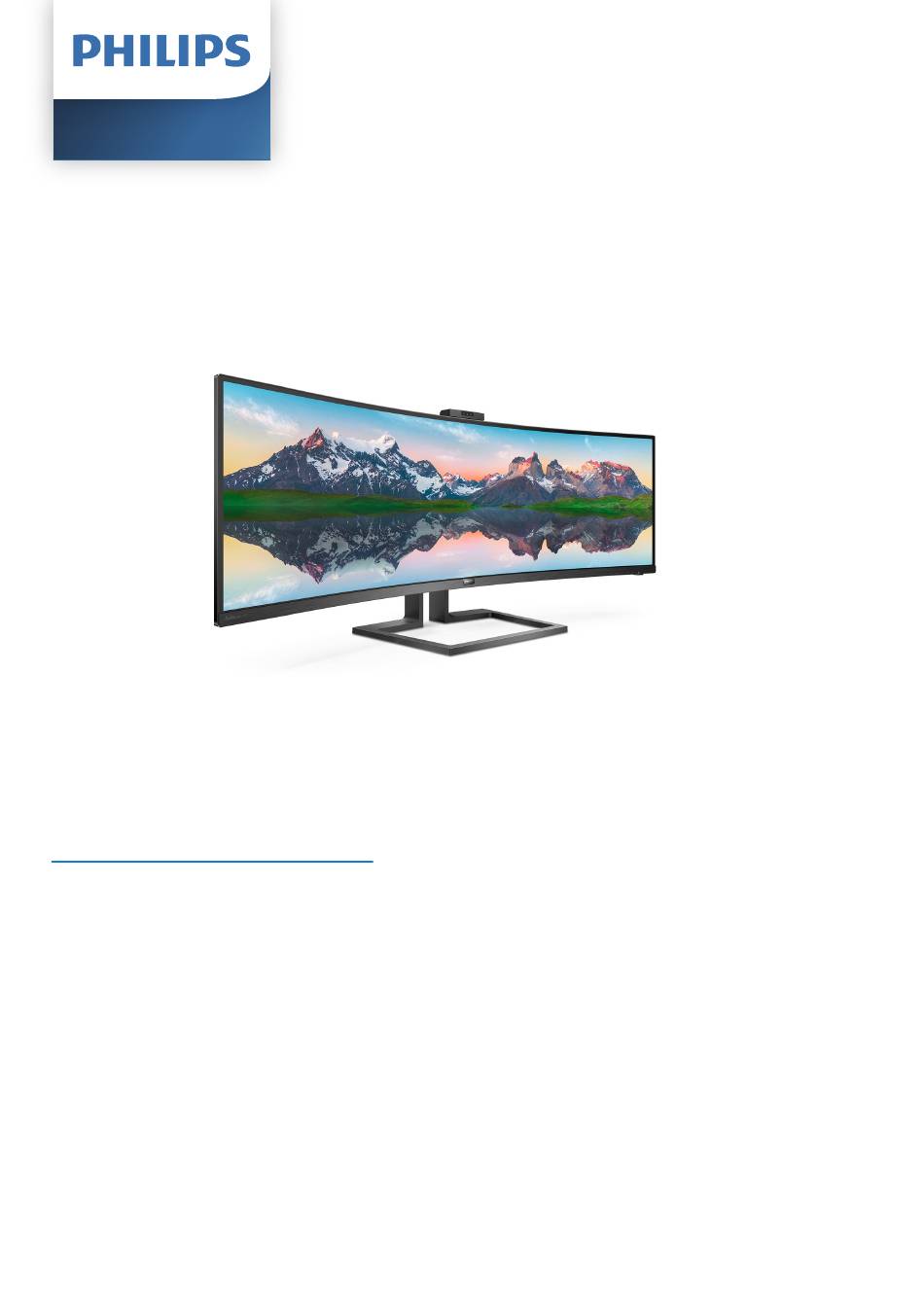

Brilliance
499P9
241B8
www.philips.com/welcome
EN User manual
1
Customer care and warranty 28
Troubleshooting & FAQs
32

Advertisement

Table of Contents
loading

Related Manuals for Philips Brilliance 499P9H

Summary of Contents for Philips Brilliance 499P9H

  • Page 1 Brilliance 499P9 241B8 www.philips.com/welcome EN User manual Customer care and warranty 28 Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    5.1 Resolution & Preset Modes ...26 6. Power Management ....27 7. Customer care and warranty . 28 7.1 Philips’ Flat Panel Displays Pixel Defect Policy ......28 7.2 Customer Care & Warranty ..31 8. Troubleshooting & FAQs ..32 8.1 Troubleshooting ......

  • Page 3: Important

    This electronic user’s guide is intended • If turning off the monitor by detach- for anyone who uses the Philips display. ing the power cable or DC power Take time to read this user’s manual cord, wait for 6 seconds before before you use your display.
  • Page 4 1. Important • Adjusting the environment light- it for a longer lifetime, please use ing similar to that of your screen the display in a location that falls brightness, avoid the fluorescent within the following temperature lighting, and surfaces that don’t and humidity ranges.

  • Page 5: Notational Descriptions

    1. Important Service contact information listed in 1.3 Disposal of product and Important information manual.) packing material • For transportation information, Waste Electrical and Electronic please refer to “Technical Equipment-WEEE Specifications”. • Do not leave your display in a car/ trunk under direct sun light.
  • Page 6 From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take- back initiatives and recycling programs whenever possible, preferably...

  • Page 7: Setting Up The Display

    Top Victory Investments Ltd., *Remote and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
  • Page 8 2. Setting up the monitor Connecting to your PC DisplayPort input HDMI2 input HDMI1 input AC power input Power Switch Connect to PC USB UP 1. Connect the power cord to the back of the display firmly. 2. Turn off your computer and unplug its power cable.
  • Page 9 3. It will show “success” when the times to be able to use this function. installation is finished. Some select Philips displays may not 4. You must reboot your computer Power or Charge your device when it after the installation has completed.
  • Page 10 2. Setting up the monitor Note If you Turn OFF your monitor via the power switch at any given time, all the USB ports will power OFF. Warning USB 2.4Ghz wireless devices, such as, wireless mouse, keyboard, and headphones, maybe have interference by the high-speed signal of USB 3.0 devices, which may result in a decreased efficiency of the radio transmission.

  • Page 11: Operating The Display

    2. Setting up the monitor Webcam 2.2 Operating the display Description of the control buttons Microphone Switch display’s power ON IR of Face identification OFF. Access the OSD menu. 2.0 Megapixel Webcam Confirm the OSD adjustment. Webcam activity light Adjust the OSD menu. User preference key.
  • Page 12 2. Setting up the monitor Customize your own “USER” key The remote control is powered by two 1.5V AAA batteries. (499P9H1) This hot key allows you to setup your To install or replace batteries: favorite function key. 1. Press and then slide the cover to 1.
  • Page 13 2. Setting up the monitor Description of the remote control Access the OSD menu. buttons (499P9H1) Confirm the OSD adjustment. Adjust the OSD menu / Turn down the values. SmartImage.There are multiple selections: EasyRead, Office, Photo, Movie, Game, Economy, LowBlue Mode, SmartUniformity, Off.
  • Page 14 On-Screen Display. You can use On-Screen Display (OSD) is a feature in this as a reference when you want to all Philips LCD displays. It allows an end work your way around the different user to adjust screen performance or adjustments later on.
  • Page 15 2. Setting up the monitor Resolution notification Physical Function This display is designed for optimal Tilt performance at its native resolution, 5120 x 1440 @ 60 Hz. When the display 10˚ is powered on at a different resolution, an alert is displayed on screen: Use 5120 -5˚...

  • Page 16: Built-In Windows Hello™ Pop-Up Webcam

    2 seconds, 3 times faster than a monitor password. How to enable Windows Hello™ pop-up webcam Philips monitor with Windows Hello webcam can be enabled by simply connecting your USB cable from your USB C PC to the “ USB C” port or “ USB up”...
  • Page 17 2. Setting up the monitor c. You need to set up a PIN code Auto  before you're allowed to use USB C USB Standby Mode USB up Windows Hello. Once you've   added this, the option for Hello ...

  • Page 18: Multiclient Integrated Kvm

     USB C USB Standby Mode USB up   With the built-in MultiClient Integrated KVM, Philips monitor allows to quickly   switch your peripherals back and forth  between in two devices through the OSD menu setting. Please follow the steps for the settings.

  • Page 19: Multiview

    (main) signal source. Why do I need it? With the ultra high resolution Philips When the sub source is MultiView display, you can experience not detected: (main) a world of connectivity in a comfortable way in the office or at home.

  • Page 20: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor 2.6 Remove the Base Assembly for VESA Mounting Before you start disassembling the display base, please follow the instructions below to avoid any possible damage or injury. 1. Place the display face down on a smooth surface.

  • Page 21: Image Optimization

    Game, Economy, LowBlue Mode, brightness, contrast, color and sharpness SmartUniformity and Off. in real time. Whether you're working with text applications, displaying images SmartImage or watching a video, Philips SmartImage EasyRead delivers great optimized display performance. Office Why do I need it? Photo...

  • Page 22: Smartcontrast

    Developed for wellbeing, and extend the lifetime of your display. Philips LowBlue Mode setting uses a smart software technology to reduce How does it work? harmful shortwave blue light.

  • Page 23: Adaptive Sync

    3. Image Optimization • AMD Radeon R7 260X 3.3 Adaptive Sync • AMD Radeon R7 260 • Processor A-Series Desktop and Mobility APUs Adaptive Sync • AMD A10-7890K • AMD A10-7870K PC gaming has long been an imperfect • AMD A10-7850K experience because GPUs and monitors •...

  • Page 24: Hdr

    4. HDR 4. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desk top, enter to Display settings. STEP 5 2. Select the display/monitor. 3. Adjust resolution to 5120 x 1440 4. Turn the “HDR and WCG” to on mode.

  • Page 25: Technical Specifications

    5. Technical Specifications 5. Technical Specifications Picture/Display Display Panel Type Backlight W-LED system Panel Size 48.8" W (124 cm) Aspect Ratio 32:9 Pixel Pitch 0.233 x 0.233 mm SmartContrast 80,000,000:1 Optimum Resolution HDMI/DisplayPort/USB type-C: 5120 x 1440 Viewing Angle 178° (H) / 178° (V) @ C/R > 10 (Typ.) Picture Enhancement SmartImage Display Colors...
  • Page 26 5. Technical Specifications 2.0 megapixel camere with microphone and LED Built-in Webcam indictor (for Windows 10 Hello) MultiView PBP mode, 2×devices English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brasil Portuguese, Polish, OSD Languages Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience...
  • Page 27 Finish Texture Note 1. EPEAT rating is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 28: Resolution & Preset Modes

    5. Technical Specifications Note 5.1 Resolution & Preset Modes 1. Please notice that your display works Maximum Resolution best at native resolution of 5120 x 1440 @ 60Hz. For best display 5120 x 1440 @ 70 Hz (digital input) quality, please follow this resolution Recommended Resolution recommendation.

  • Page 29: Power Management

    6. Power Management 6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the display can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the display will 'wake up' automatically.

  • Page 30: Customer Care And Warranty

    Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 31 Black Dot Defects the warranty period, a TFT Display panel Black dot defects appear as pixels or in a Philips flat panel display must have sub pixels that are always dark or 'off'. pixel or sub pixel defects exceeding the That is, a dark dot is a sub-pixel that tolerances listed in the following tables.
  • Page 32 7. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 5 or fewer 3 adjacent dark subpixels...

  • Page 33: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 34: Troubleshooting & Faqs

    If the problem not satisfactory, you can do manual still persists after you have tried these adjustments via the OSD menu. solutions, contact Philips customer service representative. Note The Auto Function is not applicable in Common Problems DVI-Digital mode as it is not necessary.

  • Page 35: General Faqs

    Service contact information listed in may cause "burn in", also known as Important information manual and "after-imaging " or "ghost imaging", contact Philips customer service on your screen. "Burn-in", "after- representative. imaging", or "ghost imaging" is a well-known phenomenon in LCD * Functionality different according to panel technology.
  • Page 36 • Shut down your computer, scratches? disconnect your old display and Ans.: In general it is recommended reconnect your Philips LCD display. that the panel surface is not • Turn on your display and then turn subjected to excessive shocks on your PC.
  • Page 37 Can I connect my LCD display to repaired. The damage mentioned above any PC, workstation or Mac? is not covered under your warranty. Ans.: Yes. All Philips LCD displays are Q12: Why is my Display not showing fully compatible with standard sharp text, and is displaying PCs, Macs and workstations.

  • Page 38: Multiview Faqs

    Then change the source back window signal source to be to HDMI. progressive timing( P-timing). Q15: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
  • Page 39 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
