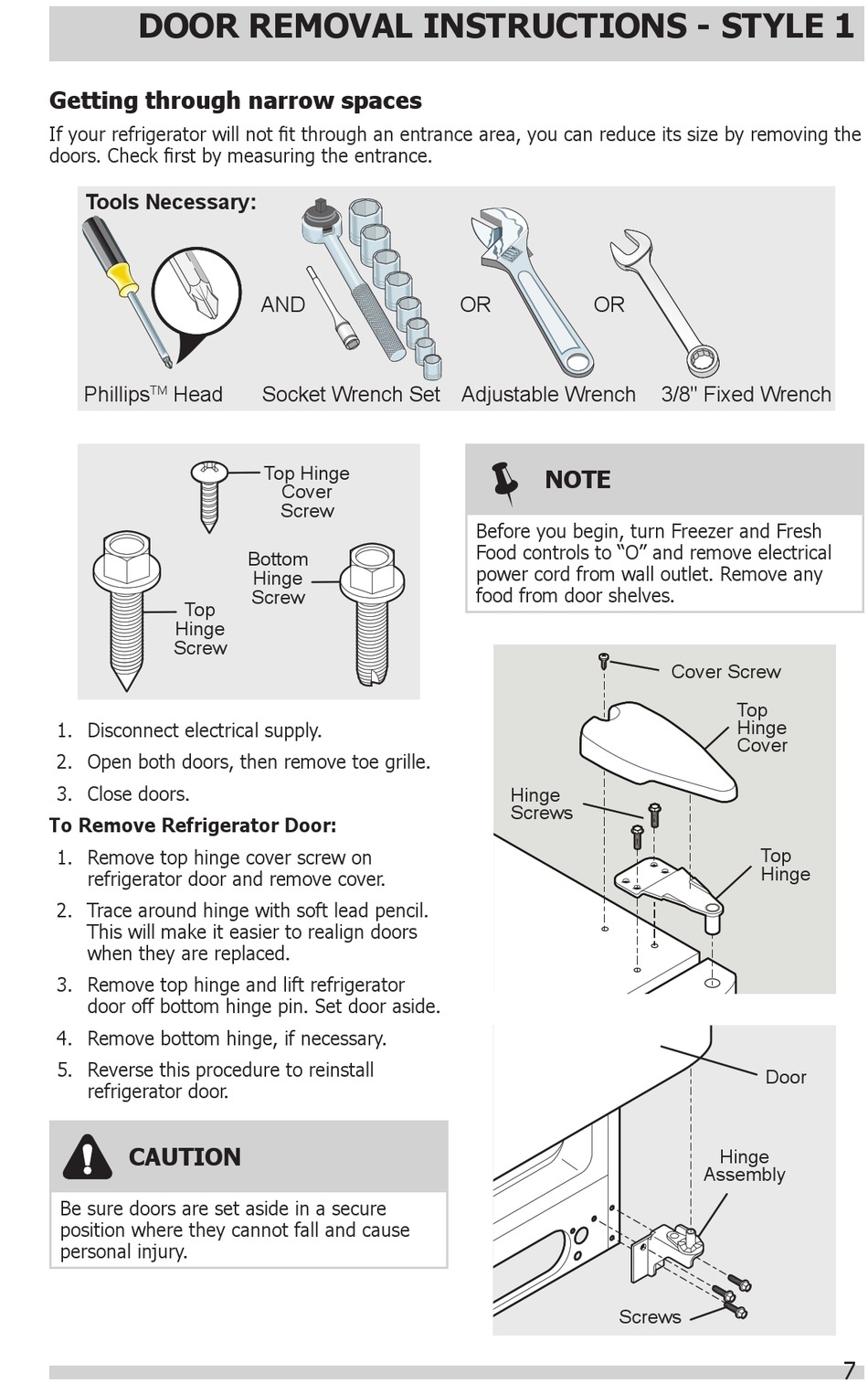

DOOR REMOVAL INSTRUCTIONS - STYLE 1

Getting through narrow spaces
If your refrigerator will not fit through an entrance area, you can reduce its size by removing the
doors. Check first by measuring the entrance.
Tools Necessary:
Phillips Head
TM
Top
Hinge
Screw
1. Disconnect electrical supply.
2. Open both doors, then remove toe grille.
3. Close doors.
To Remove Refrigerator Door:
1. Remove top hinge cover screw on
refrigerator door and remove cover.
2. Trace around hinge with soft lead pencil.
This will make it easier to realign doors
when they are replaced.
3. Remove top hinge and lift refrigerator
door off bottom hinge pin. Set door aside.
4. Remove bottom hinge, if necessary.
5. Reverse this procedure to reinstall
refrigerator door.
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury.
AND
Socket Wrench Set
Top Hinge
Cover
Screw
Bottom
Hinge
Screw
OR OR
Adjustable Wrench

NOTE
Before you begin, turn Freezer and Fresh
Food controls to "O" and remove electrical
power cord from wall outlet. Remove any
food from door shelves.
Hinge
Screws
Screws
3/8" Fixed Wrench
Cover Screw
Top
Hinge
Cover
Top
Hinge
Door
Hinge
Assembly
7
