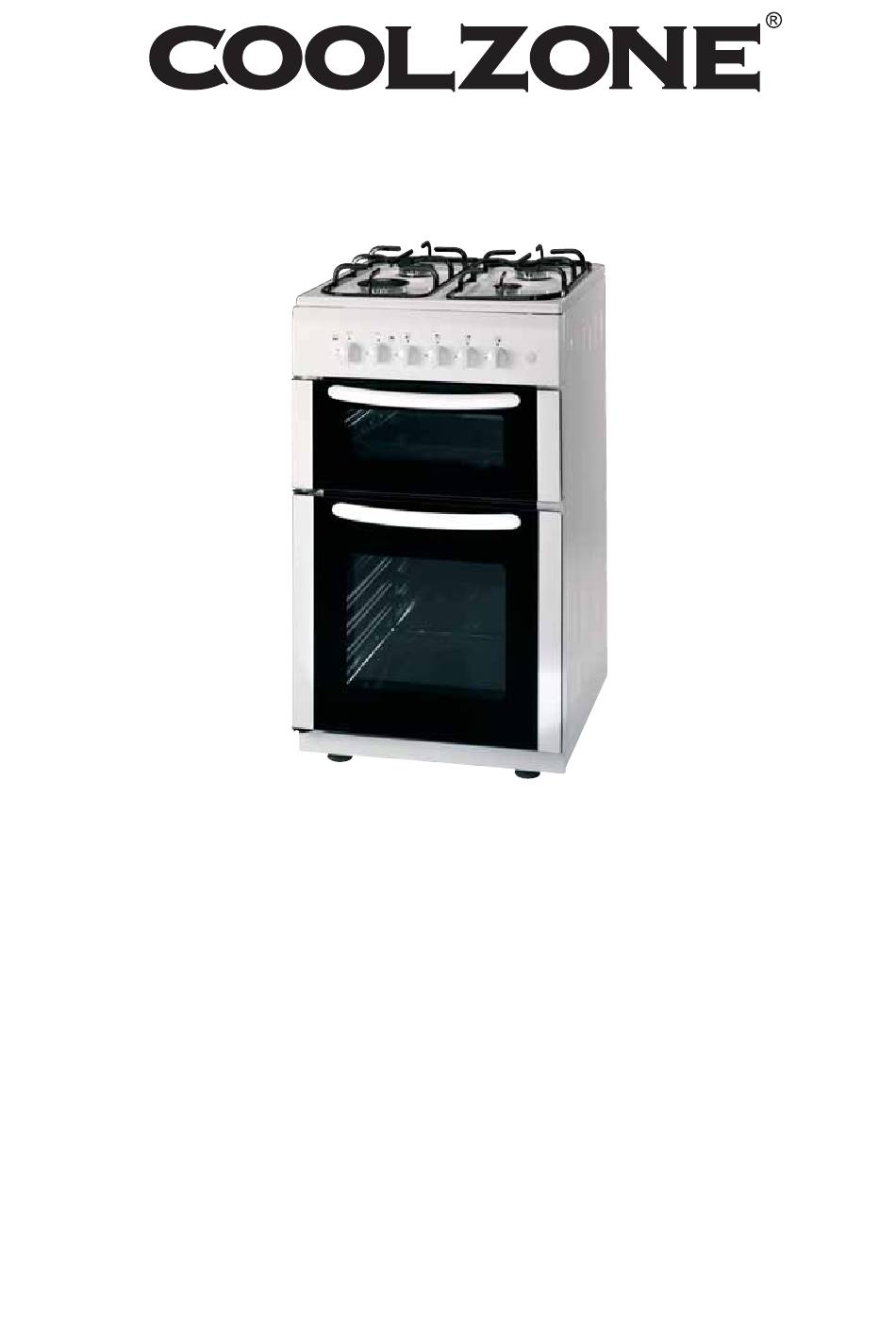

- Page 1 50cm Double Cavity Gas Cooker CZ55509 INSTALLATION AND OPERATING INSTRUCTIONS The product may differ from the one illustrated but the installation and operation procedure remains the same...
-
Page 2: Table Of Contents
Contents Introduction Unpacking Before installation Location Electricity supply Safety chain anchors Gas supply connection Electrical connection Levelling the cooker Securing the safety chains Preparation Safety notes Cooker controls Using the hob Using the grill Using the oven Care of the cooker Cleaning the cooker Changing the oven and grill lamps Mains lead replacement... -
Page 3: Unpacking
Introduction Thank-you for choosing this quality appliance. It has been designed to provide trouble-free service provided it is installed and maintained correctly. This cooker is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference. -
Page 4: Location
Location Position of the cooker The position of the cooker should ensure free access to all controls. Avoid installing the cooker next to a fridge, freezer or boiler. Safety Requirements This appliance must only be installed in an area with adequate ventilation. Do not install the cooker on a window-door axis or any position where strong draughts are likely. -
Page 5: Electricity Supply
Electricity supply A switched 3-pin plug socket with an earth contact, if one does not already exist, should be installed on the wall behind the cooker (Figure 1). WARNING: This appliance must be earthed. Connecting the cooker to a socket without an earth contact may result in an electric shock This installation must be carried out in accordance with current I.E.E wiring regulations and Building Regulations (Part P). -
Page 6: Gas Supply Connection
Gas supply connection PLEASE NOTE: Connection of the gas supply, adjustment, cleaning and tap servicing should ONLY be carried out by a CORGI registered gas fitter or qualified service engineer, in accordance with the latest regulations. There are two installation options: Connection to natural gas supply The cooker comes ready for connection to a piped supply of natural gas, and should only be connected by a CORGI registered gas fitter or qualified service personnel, in accordance with the latest regulations. -
Page 7: Securing The Safety Chains
Securing the safety chains Before securing the safety chains, check that you have completed the installation process and that all connections have been made successfully and that the cooker is in its final operating position. Fix the security chains to their anchor brackets: 1. -
Page 8: Safety Notes
Safety notes • Make sure you understand what the cooker • Never leave children unsupervised where the controls do before using the oven. cooker is installed as the appliance will get hot during and after use. • Always turn the cooker controls to the OFF position when it is not in use. -
Page 9: Cooker Controls
Cooker controls Before using your cooker for the first time: Read the operating and safety instructions thoroughly. If you have not already done so, follow the steps in the “Preparation” section on page 6 so that the cooker is ready for use. IGNITION AND LIGHT FRONT LEFT... -
Page 10: Using The Grill
Using the grill PLEASE NOTE: The grill and oven have a flame failure device. This ensures that no gas escapes if the flames are extinguished. A thermal cut-off prevents the oven from overheating if the temperature exceeds safety limits. When grilling with the door open, fit the heat deflector (Figure 9). It may get hot in use. The grill is located in the top oven compartment. -
Page 11: Using The Oven
Using the main oven PLEASE NOTE: It is recommended to preheat the oven for a few minutes or wait until the temperature indicator goes off before placing food in the oven for cooking. The light can be turned on by pressing the top half of the Ignition and Light button (Figure 14) Turn the control knob to the large flame position (Figure 13) and press and hold the bottom half of the Ignition and Light button (Figure 14) until the oven burner ignites. -
Page 12: Cleaning The Cooker
Cleaning the cooker PLEASE NOTE: The cooker must be allowed to cool down and be switched off at the mains electricity supply before cleaning. Clean the hob burners and the inside of the cooker after each spillage to remove cooking residues and dirt. Hob burners and ignitors should always be kept clean and dry to ensure proper performance. -
Page 13: Changing The Oven And Grill Lamps
Changing the grill and oven lamps Wait for the cooker and lamp to cool. Unscrew and remove the diffuser. Unscrew the lamp from the lampholder. Replace lamp and diffuser (Figure 17). The replacement lamp must be of the same type, voltage and wattage (15W SES 300°C). LAMPHOLDER DIFFUSER LAMP... -
Page 14: For Best Cooking Results
For best cooking results • Use good quality cooking pans with thick flat • Never use recessed or ridged base pans. This bases. This gives the most efficient energy wastes energy and gives a longer cooking time transfer from the hob burners. •... -
Page 15: Troubleshooting Guide
Troubleshooting guide If you are experiencing problems with your cooker, check the following problems and solutions below before contacting the Helpline. Problem Solution Ignition does not work (on all burners). Check that: The electric plug is in the mains socket and is switched to ON. -
Page 16: Customer Helpline
Safe cooker disposal To help the environment, Local authority instructions should be followed for the disposal of your product Customer Helpline For help and assistance regarding your cooker telephone 0844 871 0011. Specification Power supply: 230V~50Hz Gross weight (kg): External dimensions (cm): 50 width;...
