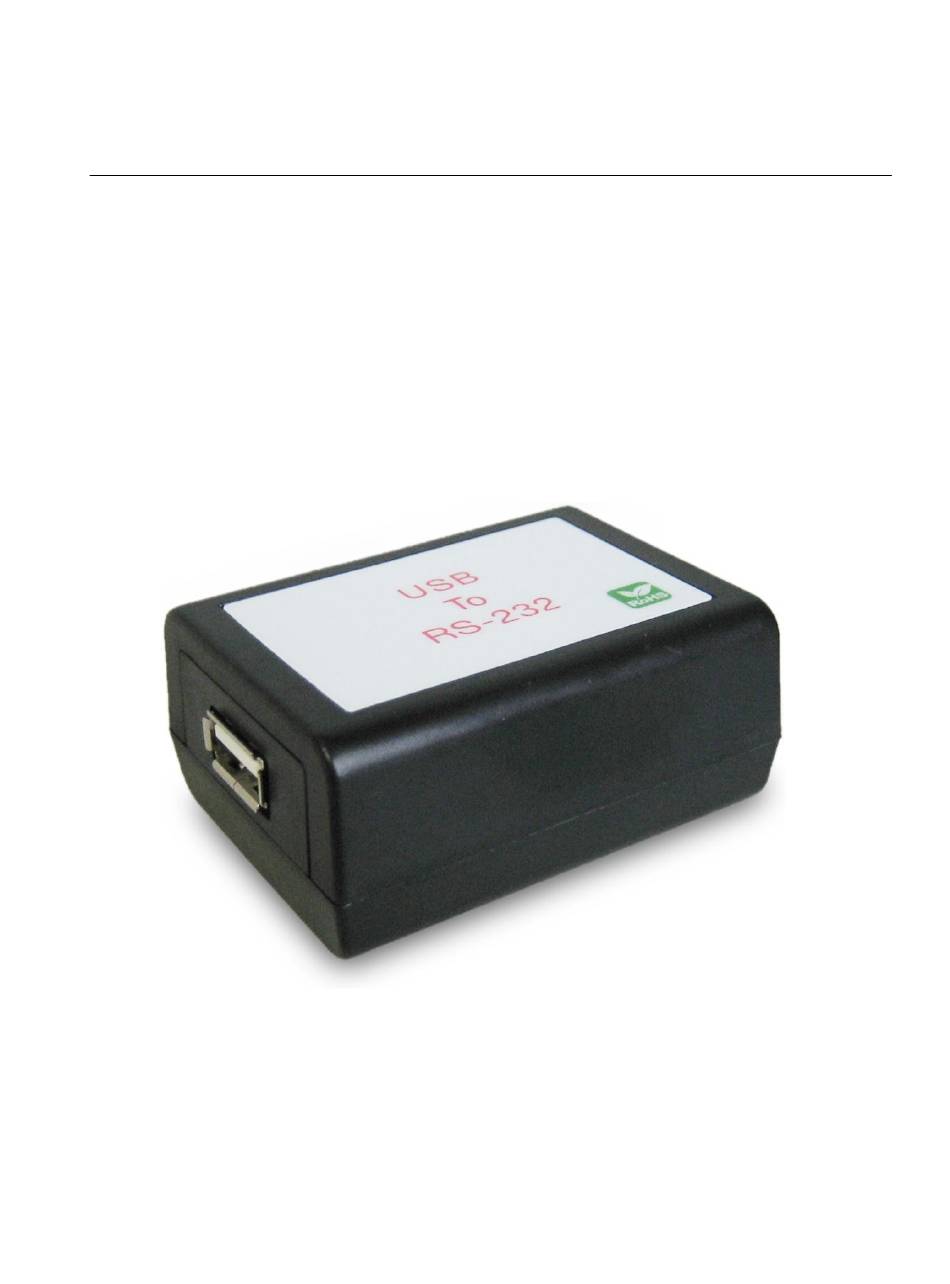

- Page 1 USB to RS-232 US-101-232 USB To Serial Operation Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ……………………………………………… …………………………………………… 2. Package checklist …………………………………… 3. Product Specification 4. Product Panel Views Description …………………… 6 Product Views ………………………………………………… USB Type A Connector ……………………………………… Serial I/O Port of RS-232 ………………………..…………… ………………………………………… 8 5. Driver installation Driver Installation ……………………………………………... -
Page 3: Introduction
2.0 . US-101-232’s electrical power is from USB port and doesn't need any power adapter. You can connect a PC USB port or USB hub to US-101-232 via the USB cable and High-Speed RS-232 serial port which features easy connectivity for traditional serial devices in your working environments. -
Page 4: Package Checklist
Package checklist US-101-232 product is shipped with the following items: 1 unit of US-101-232 USB to RS-232 converter 1 unit of A type to A type USB cable User Operation Manual Software CD NOTE: Notify your sales representative if any of the above items is missing or... -
Page 5: Product Specification
Product Specification Serial Port RS-232 ● No. of Ports : RS-232 * 1 Port ● Port Type : DB-9 male connector ● RS-232 Signals : DCD , RX , TX , GND , RTS , CTS , DTR , DSR ●... - Page 6 Driver OS Support ● Windows – 98E / 2000 / XP / Server 2003 /Vista , Mac osx / os9 , Linux 2.4 / 2.6 Power :USB bus power as voltage DC +5V Environment : ● Operating Temperature: 0℃〜60℃ ●...
-
Page 7: Product Panel Views Description
Connector USB Type A Connector Power Outlet - The US-101-232 USB to RS-232 is powered by USB (Universal Serial Bus) port a single 5V DC (Inner positive/outer negative) power supply and 500mA of current. To connect the USB cable to between a PC USB port or USB hub and US-101-232’s USB port. -
Page 8: Serial I/O Port Of Rs-232
US-101-232’s USB port is a USB type A connector and it is fully compatible with the USB V1.1～2.0 Serial I/O Port Serial I/O Port RS232 Serial I/O Port of RS-232 To connected the serial data cable between the converter and the serial device. -
Page 9: Driver Installation
US-101-232 Driver Installation When setting up US-101-232 adapter for the first time, you have to install CP201x as “US-101-232 Driver” first in your computer device before connecting it. There are several kind OS as Windows 98 / 2000∕2003 / XP∕VISTA…, Linux … ， Mac…. - Page 10 B. Choose “Next” Icon If your computer equipment is running Windows OS that the pop-up screen of installing massage will be showed as “CP210x VCP Drivers for Windows 2000/XP on your computer” and then to Click “Next” icon for going to next step. C.
- Page 11 D. Choose destination location It is for saving the CP201x driver software in destination location of computer. E. Execute the program installation Click the “install” icon to begin installation of CP210x driver.
- Page 12 F. install CP210x VCP Driver for Windows 2000/XP After click “Install” icon, the installshield wizard is installing Silicon Laboratories CP210x drivers for Windows 2000/XP and installation location. G. InstallShield Wizard Complete CP201x VCP driver has successfully installed and click “Finish” icon for exiting the wizard.
-
Page 13: Hardware Installation & Setup
2. There is a type A USB cable has two distinct connectors to connect the cable from a USB device to as on a computer or USB hub. 3. Connect USB cable between a PC USB port or USB hub and US-101-232 adapter. - Page 14 5. After connecting US-101-232 USB to serial converter then a massage as “ New device has been connected” will be pop-up on screen. However, the CT201x VCP driver needs to be installed in PC in advance.
-
Page 15: Hardware Setup
Hardware Setup When US-101-232 adapter has successfully connected and you can setup more detail parameters by computer’s manage. A. Into “Manage” icon in My Computer Click “My Computer” icon and then press the right side button of mouse. After you click the manage item on list bar then “Computer... - Page 16 B. Choose “Device Manager” and click “Ports(COM & LPT)” in Device Manager Click “Device Manager” item, all devices of computer will be list on right site of screen and then click “Ports (COM & LPT) item for looking for more COM devices. C.
- Page 17 D. Device general status of CP210x USB to UART Bridge Controller This is showing the statues of device and some product general information. COM port number of device is also display on. E. “Port Settings” communication detail information This is for checking and setting more detail parameters of device for communicating.
- Page 18 F. “Driver” detail information The driver detail information as you installed in your computer. G. “Details” item It is for checking device ID numbers as device instance ID.
-
Page 19: Appendix A - Pin Outs And Cable Wiring
PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS PIN 9 : X □ □ RS-232 Wiring Diagram □ Serial Device US-101-232 2 RX 3 TX 3 TX 2 RX 5 GND 5 GND (Flow Control) 7 RTS...
