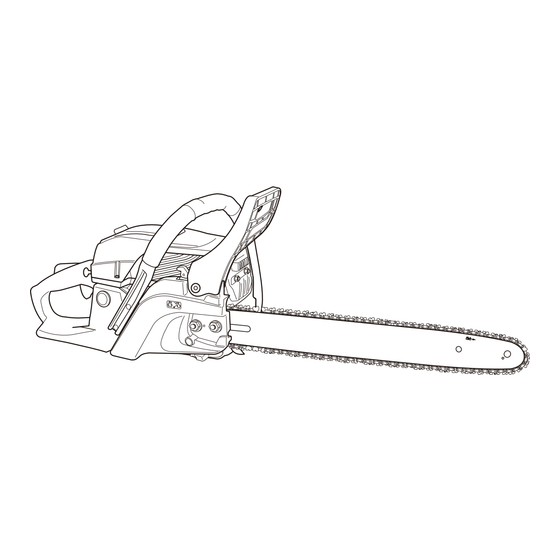

- Page 1 45cc 57cc Powerking Chainsaw PK4516 - PK4520 - PK451620 Operation Instructions PK5718 - PK5722 - PK571822 Danger Warning Professional Please carefully read the manual and follow the safety operations shown in it; otherwise, physical injury may gasoline chain saw be caused.
-
Page 2: Table Of Contents
Clutch shell …………………………………………………… 20 Contents Oil Pump ……………………………………………………… 20 Contents ……………………………………………………… 1 Spark Plug …………………………………………………… 20 Introduction ………………………………………………… 2 Magneto ……………………………………………………… 20 Symbol and Sign Illustration ……………………………… 3 Cylinder cooling fins ………………………………………… 20 Safety Precautions ………………………………………… 4 Faults and Troubleshooting ………………………………… 21 Overview of Preventive Measures ……………………………... -
Page 3: Introduction
Introduction The operation manual mainly introduces the safety operation steps, proper operation, related services and maintenance of POWERKING gasoline chain saw. If the suggestions are adopted, the service life of the saw will be prolonged, and the good operating state will be guaranteed. Improper operation may cause physical injury. -
Page 4: Symbol And Sign Illustration
Symbol and Sign Illustration Flow adjustment of saw chain lubricating oil Please carefully read the operation manual. Carburetor adjustment--low-speed mixing This symbol indicates warning and danger, and is used to remind the operator to pay attention to operation cases in which injury Carburetor adjustment--high-speed mixing and even death may be caused. -
Page 5: Safety Precautions
be affected. You must wear the “helmet” type protective device Safety Precautions or earmuffs approved by the safety organization to protect your hearing. Any person that operates the chain saw frequently must receive hearing examination on a regular basis. Overview of Preventive Measures If you work under a tree or a place where there is a chance Operation Manual that something may hit you, please wear a qualified safety... -
Page 6: Safety Prevention Of Bounce
Use the fuel container approved by safety authorities. Before starting the engine, check whether the chain saw contacts with any object. The handle must be dry, without any gasoline, Smoking, open fire and spark are prohibited when refueling. oil or mixture thereof. Operate the machine in a well-ventilated There may be pressure inside the fuel container. -
Page 7: Other Safety Protection Measures And Precautions
Do not operate the chain saw Other Safety Protections and Precautions with one hand. Physical injuries Shock and Cold Protection Measures of the majority of operators or assistants are caused by According to Raynaud’s phenomenon, the operation with one hand. In functions of fingers will be significantly affected order to normally control, the after long-term exposure to cold air or vibration. - Page 8 Chain saw conditions It is dangerous to cut on the ladder. The ladder is easy to slip, thus limiting the control of the chain Warning Danger saw. Cutting in high places must be done by professional operators. Do not modify the chain saw. Stop the engine before lowering the Use the parts and accessories provided by chain saw.
- Page 9 Chain brake The chain brake is used to stop chain rotation in case of bounce of the chain saw, and cannot be used to prevent or reduce bounce. Even if the chain brake is applied, the operator should keep the quick response and adopt the correct cutting method, like in the case with no chain brake.
-
Page 10: Structural Diagram
45cc 57cc Powerking Chainsaw PK4516 - PK4520 - PK451620 Operation Instructions PK5718 - PK5722 - PK571822 Danger Warning Professional Please carefully read the manual and follow the safety operations shown in it; otherwise, physical injury may gasoline chain saw be caused. - Page 11 Operation manual ─ accompanying file. Please carefully Choke valve pulling rod ─ used to adjust the mixing read the operation manual before operation and properly ratio of fuel and air in the carburetor and assist the engine keep the operation manual for future learning and start-up.
-
Page 12: Installation And Operation
Rotate the chain by hand along the guide Installation and Operation plate. If the chain is too tight, loosen the 2-4 mm regulator. Make the engine operate at low speed. Installation of guide plate and chain Then stop the engine. If the chain tension is not appropriate, readjust the chain. -
Page 13: Chain Lubrication
Mixing ratio of gasoline and oil ……………………… 40:1 • Safely set the chain saw on the ground. Ensure that you can stably stand on the ground and the chain will not contact with any object or the ground. • Hold the front handle with the left hand. Press the chain saw on the ground, with the thumb under the handle. -
Page 14: Operation
The chain will rotate when the engine Trigger control arm Choke valve speed is approximately 4,300rpm. pulling rod Stop switch Check whether the acceleration is normal and whether the chain saw and guide plate are well lubricated. Do not operate the engine at high Trigger speed unless otherwise required. -
Page 15: Chain Brake
Chain saw lubrication test Non-artificial invention of chain brake Control the chain to operate towards The tail end of the guide plate must be kept 35cm Hold the rear handle one dry surface and accelerate the above the plane. with the right hand. throttle to operate at half speed for about 30s. -
Page 16: Cutting Guidance
• You should select a good standing place to avoid any Cutting Guidance obstacle during cutting. • Then select the retreat route. • When the tree starts falling down, you must move back 3m with a 45-degree angle relative to the opposite direction of Warning Danger tree falling, so as to avoid bounce of the fallen tree. -
Page 17: Branch Cutting
• Then start sawing from next point. Reserve the hinge part. Tree sawing Take out the saw to continue cutting. • Insert the saw into the previous seam. Be careful of Do not stand on the log in the cutting process. bounce. - Page 18 When the support point is at one end Completion of Warning downward cutting and the other end is free, the lower part is pressed and the upper part is pulled. After operation of the chain saw, the hot cylinder head surface and muffler cover must not be touched. In this case, cut approximately 1/3 of the diameter upwards and then Cut 1/3 of the downwards in the same position.
-
Page 19: Maintenance And Servicing
Maintenance and Servicing Item Maintenance Page No. Before use On a monthly basis Air filter Clean/replace it. √ Fuel filter Check/clean/replace it. √ Spark plug Check/clean/adjust/replace it. √ Carburetor Adjust/replace it. √ Cylinder cooling fin Check/clean it. √ Muffler Check/fasten/clean it. ——... -
Page 20: Carburetor
Carburetor Fuel supply system Check whether fuel leaks out of the fuel pipe, sealing plug and fuel tank after fuel filling and before use. Fire may be caused in case of fuel leakage. Immediately stop the machine, and contact POWERKING for repair. Do not adjust the carburetor unless otherwise required. -
Page 21: Guide Plate
Guide plate Rotate the adjusting screw counterclockwise to increase the oil amount. The oil amount is the largest (13ml/min when the engine speed is 7,000rpm) when the adjusting screw cannot be rotated due to the effects of the stopper. Do not rotate the adjusting screw when the oil amount is the largest or smallest. -
Page 22: Faults And Troubleshooting
Faults and Troubleshooting Phenomenon Cause Troubleshooting The gasoline filter is blocked. Clean or replace it. There is no oil in the carburetor. The fuel pipe is blocked. Clean it. Carburetor Consult the product distributor. There is fuel in the Carburetor Consult the product distributor. -
Page 23: Chain Saw Maintenance
Grinding precautions Chain Saw Maintenance Do not use the chain saw with the 0.64mm blunt or damaged chain. If high 30-degree pressure is required during operation of the chain saw and sawdust is fine instead of large chippings, check 90-degree whether the edge on the chain is damaged. -
Page 24: Correct Angle Of Edge Grinding
Correct angle of edge grinding 80-degree 60-degree 0.64mm Parallel lines 30-degree The correct angle of edge grinding is shown in the figure: 30-degree top angle; 80-degree lateral angle; 60-degree cutting angle for the top side; Depth measurement: 0.64mm. The following errors may result in increase of bounce: The top angle is too large. -
Page 25: Storage Management
Storage Management Long-term Storage Management (more than 30 days) Take maintenance measures before Stop switch long-term storage (30 days or more), including: Store the machine in a dry and Stop dust-free place where children or irrelevant personnel cannot touch the machine. Turn the stop switch into the stop position. - Page 27 QVTOOLS, LLC. Warranty Statement QVTOOLS, LLC warrants all gas power equipment 1 year for manufacture defects, Kohler engine 3 years from date of purchase. Proof of purchase date required for warranty repairs. Keep your receipt. QVTOOLS, LLC will provide parts and labor of Powerking products only at our approved service centers, Customer is responsible for delivery and pickup of the product to and from the service center.
