Summary of Contents for WolfPack HDTVMT0808VF2

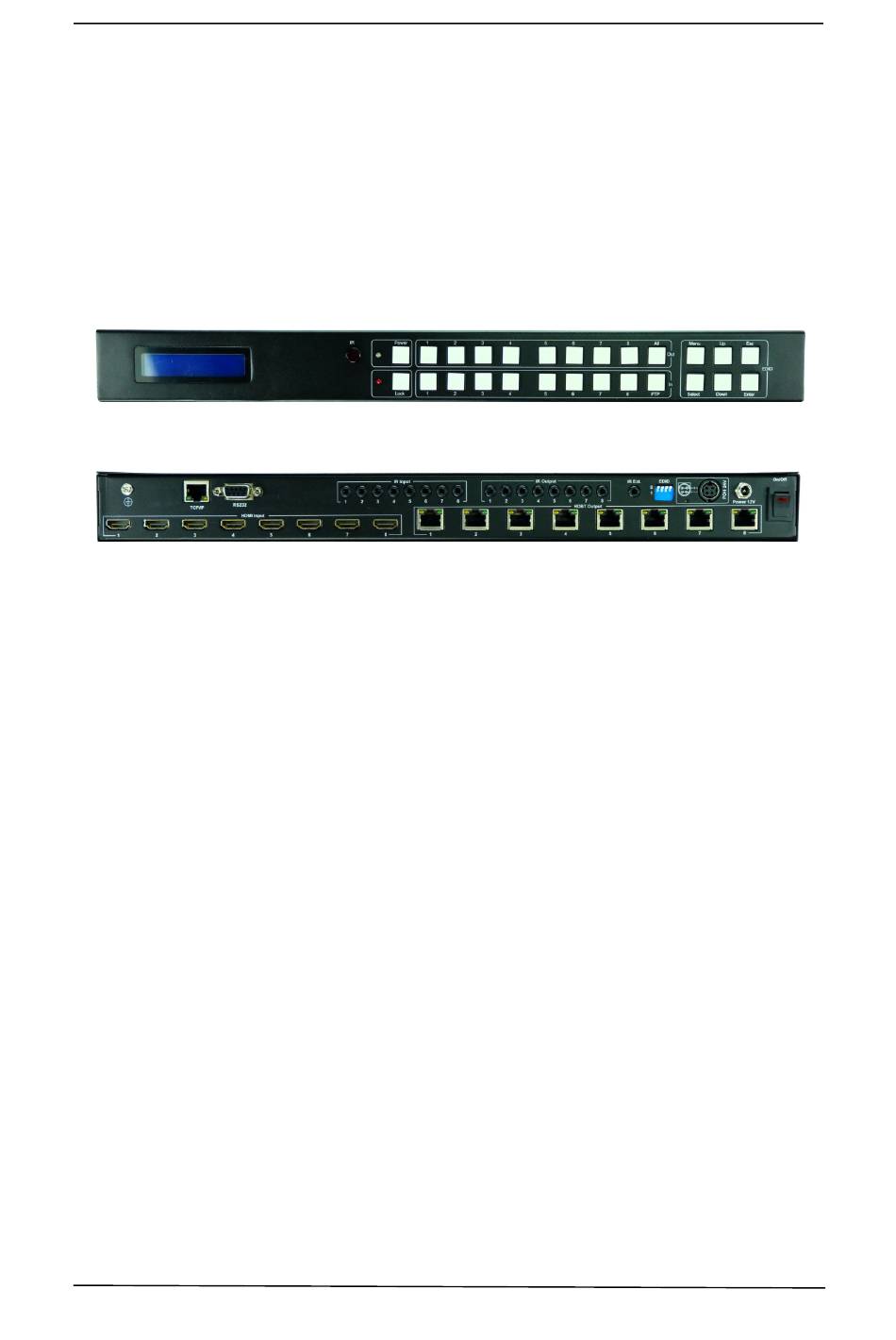

  • Page 1 HDTVMT0808VF2 User Manual     1 ...
  • Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    Table of Contents Introduction.....................4 Features......................4 Panel Description.....................5 Remote Control Description....................7 Connection Diagram....................8 Specifications..................9 Package Contents................9 RS-232 Pin Assignment....................10 GUI Control..................10 10. Maintenance..................20 11. Warranty Policy.................20 12. Limitations of Warranty....................20 13. Exclusive Remedies...................21 14. R M A P o l i c y ................. 2 1  ...

  • Page 4: Introduction

    Introduction The HDTVMT0808VL2 HDBaseT 8×8 Matrix for HDMI routes eight Hi-Def sources to any eight HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Based on HDBaseT chipset inside, the output distance can reach up to 70m over Cat5e/ Cat6.

  • Page 5: Panel Description

    Panel Description Front Panel 1. LCD display---Show the status of input-output selection, EDID info and so on. 2. IR receiver window----Receive the IR from the remote control of HDTVMT0808VL2. 3. Power LED indicator---Indicate the status of the power for the matrix. 4.
  • Page 6 9. ESC---Press to quit EDID set mode. 10. Lock LED indicator---Indicate the status of Lock. 11. Lock button---Press to lock the buttons of the front panel. 12. HDMI input selection button 1 to 8---Press to select the input from 1 to 8. 13.

  • Page 7: Remote Control Description

    DIP ON（Down）/OFF（UP） Switching Positions EDID Type 1080p 3D/2.0 1080p/2.0 1080i/2.0 1080p/5.1 1080p/7.1 Copy sink EDID 7. POE power port---Use included 24V/6.25A DC adaptor to power the remote receivers. 8. Power port---Use included 12V/6.25A DC adaptor to power the matrix switcher. 9.

  • Page 8: Connection Diagram

    Output and Input select A. OUTPUT-X select INPUT-Y: 1. Press OUTPUT-X (X means 1 to 8 of outputs)Press INPUT-Y ( Y means 1 to 8 of inputs ) 2. Press OUTPUT-X (X means 1 to 8 of outputs) press the left and right arrow buttons to select the input.

  • Page 9: Specifications

    Specifications Bandwidth 2.97Gbps per color Video Input Connectors 8 x HDMI Type A, 19-PIN, Female Video Output Connectors 8 x RJ45, Female RS232 Serial port DB-9, Female TCP/IP Port RJ45, Female IR Input Ports 9 x 3.5mm Stereo Jack IR Output Ports 8 x 3.5mm Stereo Jack Rack-Mountable 1U Rack Height, Rack Ears included...

  • Page 10: Rs-232 Pin Assignment

    RS-232 Pin Assignment Remote Control HDTVMT0808VL2 Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None GUI Control PC System: Microsoft Windows Operation System Installation 8x8 HDMI Matrix controller is a green software. You just need to copy “8x8 HDMI Matrix Controller vx.x.exe”...
  • Page 11 Click to select tab page 1  2  4  ① COM port or TCP connect status ② Control command process status ③ Prompt message display area ④ Date and Time display “General” page 1  4  ① Select control mode: RS232 COM mode (Auto COM ports detected) or TCP mode ②...
  • Page 12 ⑧ To enable or disable Input/output tags displaying when setting buttons on “Setting” page focused ⑨ Device information display area ⑩ Input/output port connection status Set TCP control configuration Click Config button to show TCP configuration window. 1  2  3  4 ...
  • Page 13 4  ① Input port tags ② Click to edit Input port tags ③ Output port tags Click to edit Output port tags ④ NOTE: Edit boxes are read only, click “Edit” button to pop up window to edit the tags. One set of Input/output port tags can be set for Matrix device when COM control mode selected.
  • Page 14 Click buttons with “×” caption to delete tag which is no use any more, if tag is still used by any other Input port, delete action will be discarded. Edit Output port tags After action of ④, edit form will pop-up as below: Define tags for respective Output port, then displays connect the Output ports can be easily remembered.
  • Page 15 1  2  3  5  6  7  ① LED which displays Input number for respective Output port ② Click to select Input port for respective Output port ③ Click to select previous or next Input port for respective Output port ④ Display Output from Input with tag information when mouse moves over ② buttons ⑤...
  • Page 16 Pop-up Menu When mouse moves over ② setting buttons, and click mouse right button, menu will pop up like as: All Outputs: All Outputs from same Input “1 Output” to “7 Outputs”: Set current Output (where mouse right clicked) and the next x-1 ( x range is from 1 to 7, set total x Outputs at the same time ) Output(s) from same Input Port to Port: Output1 from Input1, Output2 from Input2, Output3 from Input3, etc.
  • Page 17 Edit selected pre-setting item After action of ⑥, edit form will pop-up as below: ① Pre-Setting name ② Set all Output ports from same Input ③ Select Input for respective Output “EDID control” page 7  8  Set EDID mode for selected Input port or All Input ports, click “Set” button to complete ①...
  • Page 18 NOTE: When set User1/User2 EDID mode, should Download EDID content to User1 Memory/User2 Memory first. User1/User2 default EDID content is 1080p, Stereo Audio 2.0. Copy EDID from Output port to selected Input port or All Input ports, click “Copy” button ②...
  • Page 19 1  2  3  4  5  ① Click to open firmware file (file extension is “.fw”). ② Firmware upgrade progress ③ Click the button to upgrade firmware. NOTE: If failure occurs during upgrading firmware process, the following steps SHOULD be done sequentially to establish next upgrading procedure: 1) Power down the Matrix 2) Close the 8x8 HDMI Matrix Controller 3) Re-power up the Matrix, then wait for 10 seconds to ensure the Matrix is ready...

  • Page 20: Maintenance

    Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Warranty Policy HDTV Supply products are warranted against defects in material and workmanship for two years from the date of shipment.

  • Page 21: Exclusive Remedies

    Exclusive Remedies Tonlyware’s warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory, including those of merchantability and fitness for a particular purpose. The buyer shall pass on to any purchaser, lessee, or other user of Tonlyware’s products, the aforementioned warranty, and shall indemnify and hold harmless HDTV Supply from any claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its agents, or employees have made additional warranties or representations as to product...
  • Page 22 After obtaining an RMA number from HDTV Supply, you must send the product - freight prepaid - to HDTV Supply Technology Co., Ltd. The HDTV Supply RMA number must be prominently displayed on the outside of your package. If you send your product to HDTV Supply without the RMA number prominently displayed on the outside of the package, it will be returned to you unopened.
