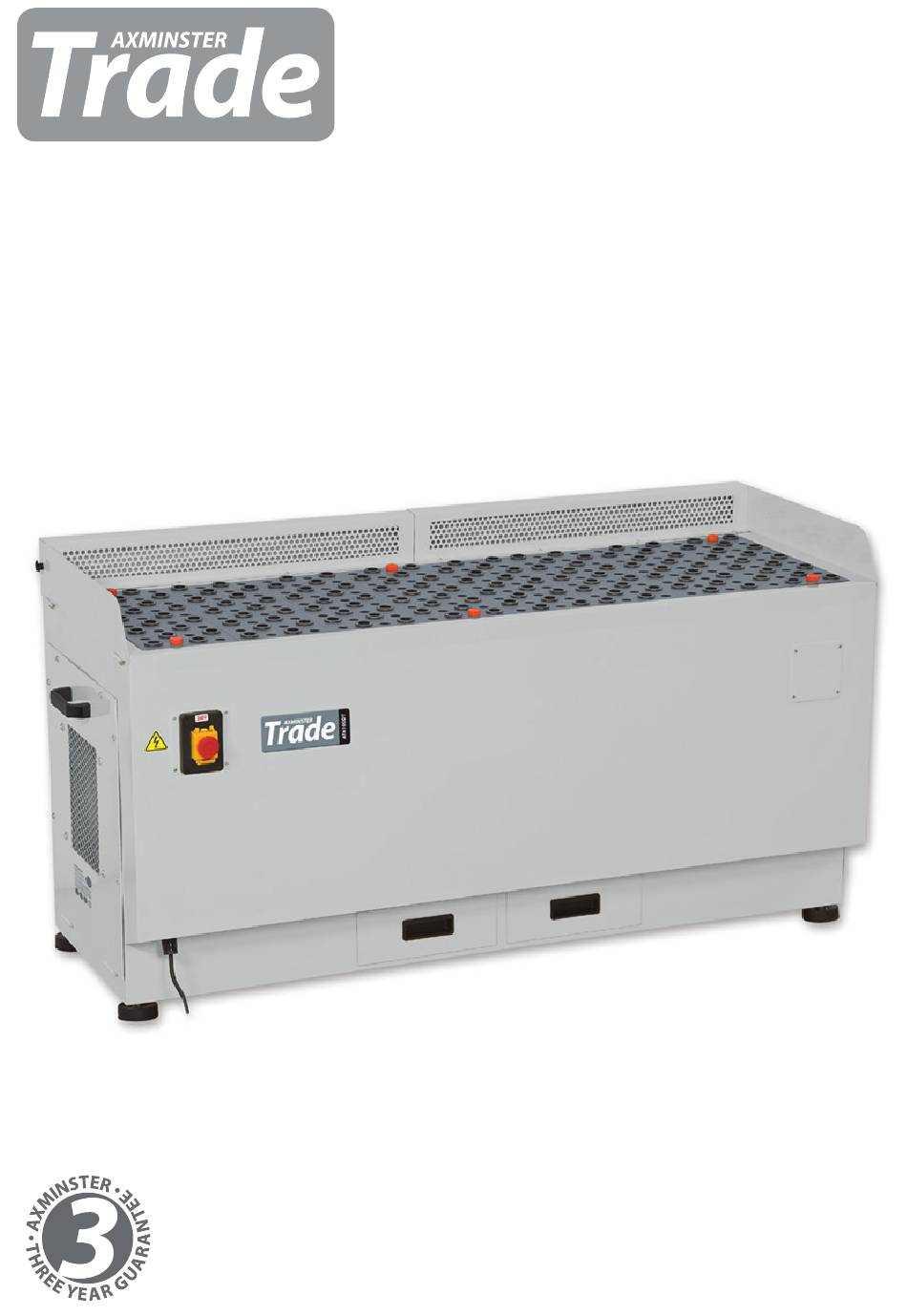

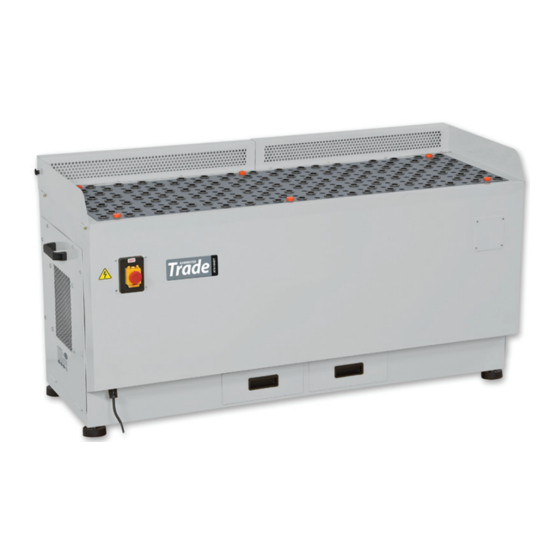

- Page 1 Code 501228 Original Instructions AT6100DT Downdraft Table AT&M: 30/04/2019...
- Page 2 EN ISO 12100 :2010 EN 60204-1 :2006/AC :2010 Type Downdraft Table Model AT6100DT and conforms to the machinery example for which the EC Type-Examination Certificate No RA/2015B0001C, RD/2015/90036C has been issued by CHANG TJER MACHINERY CO., LTD. Signed at: NO. 600, SEC. 4, CHANG PING RD., DA YA DIST., TAICHUNG, 42850, TAIWAN, R.O.C.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY RULES-------------------------------------------------------------- IMPORTANT SAFETY RULES FOR DUST COLLECTORS--------------------------- GROUNDING INSTRUCTIONS------------------------------------------------------------- SPECIFICATIONS------------------------------------------------------------------------------ CONTENTS OF PACKAGE ------------------------------------------------------------------ CONTENTS OF PARTS BAG ---------------------------------------------------------------- ASSEMBLY INSTRUCTION----------------------------------------------------------------- EXPLODED DIAGRAM---------------------------------------------------------------------- PARTS LIST-------------------------------------------------------------------------------------- • WARNING! Please read this manual carefully before assembly, testing and operating. •... -
Page 4: Important Safety Rules
IMPORTANT SAFETY RULES Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. -
Page 5: Important Safety Rules For Dust Collectors
IMPORTANT SAFETY RULES FOR DUST COLLECTORS WARNING: DO NOT pull the dust collector by the power cord. Basic precautions should always be followed when using your dust collector. To reduce the risk NEVER allow the power cord to come in contact with of injury, electrical shock or fire, comply with the safety sharp edges, hot surfaces, oil or grease. -
Page 6: Grounding Instructions
GROUNDING INSTRUCTIONS The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 7: Specifications
Specifications: Motor----------------------------------------------------------------------------------------- 1/2HP/240V/50Hz/ 1 Phase AMP------------------------------------------------------------------------------------------------------------------ 6 A Motor Speed--------------------------------------------------------------------------------------------------- 1400 RPM Suction Capacity---------------------------------------------------------------------------------------------- 1700 CFM Static Pressure-------------------------------------------------------------------------------------------- 14.8 Inch H2O Impeller Size---------------------------------------------------------------------------------------------------------- 9-1/2” Switch---------------------------------------------------------------------------------------------------- Magnetic Switch Overall Dimensions of Unit---------------------------------------------------------------------------- 1600x650x900 N.W. BOX 1. ------------------------------------------------------------------------------------------------ 220 LBS BOX 2. ------------------------------------------------------------------------------------------------- 41 LBS G.W. -
Page 8: Contents Of Package
CONTENTS OF PACKAGE FT-1600: Description Specification Q’TY Part List No. Main Housing NO.25s Sucking Head Set (Left) NO.22-1 Sucking Head Set (Right) NO.22-2 Left Side Cover NO.15 Right Side Cover NO.24 Sucking Board NO.18 Drawer NO.34 Filter Net NO.17 Rubber NO.20 Stopper NO.19... -
Page 9: Contents Of Parts Bag
CONTENTS OF PARTS BAG FT-1600: Description Specification Q’TY Part List No. Phillips Head Screw 3/16”x3/8” NO.23 NO.8 Flat Head Screw 1/4”x5/8” NO.10... -
Page 10: Assembly Instruction
ASSEMBLY INSTRUCTION STEP1-1. Assemble main housing (NO.25) and sucking head set (NO.22) with Phillips head screw (NO.23). See (FIG.1) STEP1-2 Place the pad and accessory (NO26~31) to assemble on the machine bottom. See (FIG.1-2) (FIG.1-1) STEP2-1. ( )(NO.5). (FIG1-2) (NO.4) (NO.32) STEP2 Lift up the left side cover (NO.15) and right side... - Page 11 FT-1600 Part List...
-
Page 12: Exploded Diagram
FT-1600 Part List Description Specification Flange Bolt 1/4”x3/4” Spring Washer 1/4” Washer 1/4”x25 Fixing Ring Motor 1/2HP Impeller 9-1/2”x180 Packing Flat Head Screw 1/4”x1/2” Flat Head Screw 1/4”x5/8” Handle Outlet Cover Flat Head Screw 5/16”x1/2” Blower Housing Left Side Cover Triangular Knob 1/4”x3/8”... -
Page 13: Parts List
Power Cord 0.75x4Cx2Mx3T3Y2R Phillips Head Screw 3/16”x3/8” Tapping Screw On/Off Switch 3/16” Sawtooth Shape Washer Phillips Head Screw 3/16”x1/2” Switch Plate Switch Box... - Page 14 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
