OWNER'S MANUAL: CS-6R • CS-6R DVT • CS-8R • CS-6R Point • CS-6R IW
MICRO-FLANGE GRILLE

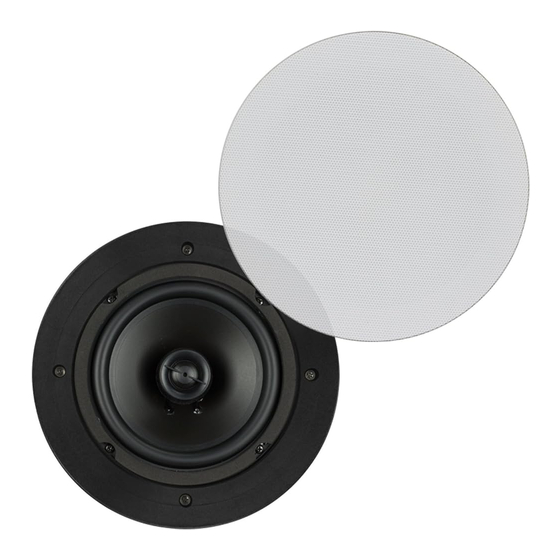

CS-6R
&
CS-8R
Thank you for purchasing Phase Technology
offer exceptional performance and power handling in flush-mounted designs. Each model
features extra-high sensitivity to assure concert volume levels, even with low-powered
distribution systems.
The CS Series is engineered to handle the dynamic range of multi-channel audio technologies
like Dolby Digital and DTS as well as traditional two-channel sources. These in-ceiling
speakers deliver high-end tonal balance and a clear distinction between musical notes.
The line comprises two-way models including 6.5" and 8" polypropylene cones with
NBR
surrounds for lasting performance, indoors or out, and dual voice coil, dual tweeter
™
configurations permit one CS Professional series speaker to deliver stereo sound to any
room.
Regardless of application, serious audiophile listening or home theater, we recommend that
you take the time to read this manual thoroughly before connecting speakers to your amplifier
or receiver. In the highly unlikely event that you should experience a problem with set-up or
operation, please contact one of our authorized dealers for assistance, or contact us directly.
Phase Technology Corporation
8005 W. 110th St., Suite 208
Overland Park, KS 66210
855.663.5600 (Domestic)
+1.913.663.5600 (International)
913.663.3200 (Fax)
CS PROFESSIONAL
AIMABLE
TWEETER
FLANGE
FLANGE CLAMP
SCREWS (4x)
CS Professional speakers. These speakers
®
CARING FOR YOUR SPEAKER
MICRO-FLANGE GRILLE
CS-6R DVT
2
3
3
4
4
4
4
MICRO-FLANGE GRILLE
CS-6R Point
FLANGE
FLANGE CLAMP
SCREWS (4x)
MICRO-FLANGE GRILLE
CS-6R IW
FLANGE
FLANGE CLAMP
SCREWS (4x)
Advertisement
Table of Contents
Related Manuals for Phase-Tech CS PROFESSIONAL CS-6R
Summary of Contents for Phase-Tech CS PROFESSIONAL CS-6R
- Page 1 CS PROFESSIONAL OWNER’S MANUAL: CS-6R • CS-6R DVT • CS-8R • CS-6R Point • CS-6R IW MICRO-FLANGE GRILLE MICRO-FLANGE GRILLE MICRO-FLANGE GRILLE CS-6R CS-6R DVT & CS-6R Point CS-8R AIMABLE TWEETER FLANGE FLANGE FLANGE CLAMP FLANGE CLAMP SCREWS (4x) SCREWS (4x) Thank you for purchasing Phase Technology CS Professional speakers.
- Page 2 [SAFETY INSTRUCTIONS] that may impede the flow of air through the ventilation openings. 9. Heat - The appliance should be situated away from heat sources CAUTION such as radiators, stoves, or other appliances that produce heat. RISK OF ELECTRIC SHOCK DO NOT OPEN 10.
- Page 3 [INSTALLATION GUIDELINES] [FIG. 1.1] For proper connection and therefore full enjoyment of your new Phase Technology speakers, we ® encourage you to read this owners’ manual thoroughly, even if you are very familiar with installing speakers. Speaker placement is very subjective. Placement follows the guidelines for the developers of in- ceiling speakers, yet is also guided by personal preferences.
- Page 4 [CARING FOR YOUR PHASE TECHNOLOGY SPEAKER] All Phase Technology speakers are finished with a high degree of craftsmanship in either hand polished paint or vinyl laminates. ® We recommend using a lint-free rag with a small amount of glass cleaner to maintain the long-lasting beauty of the finish. Avoid products containing silicones, oils, oil derivatives, or solvents.
